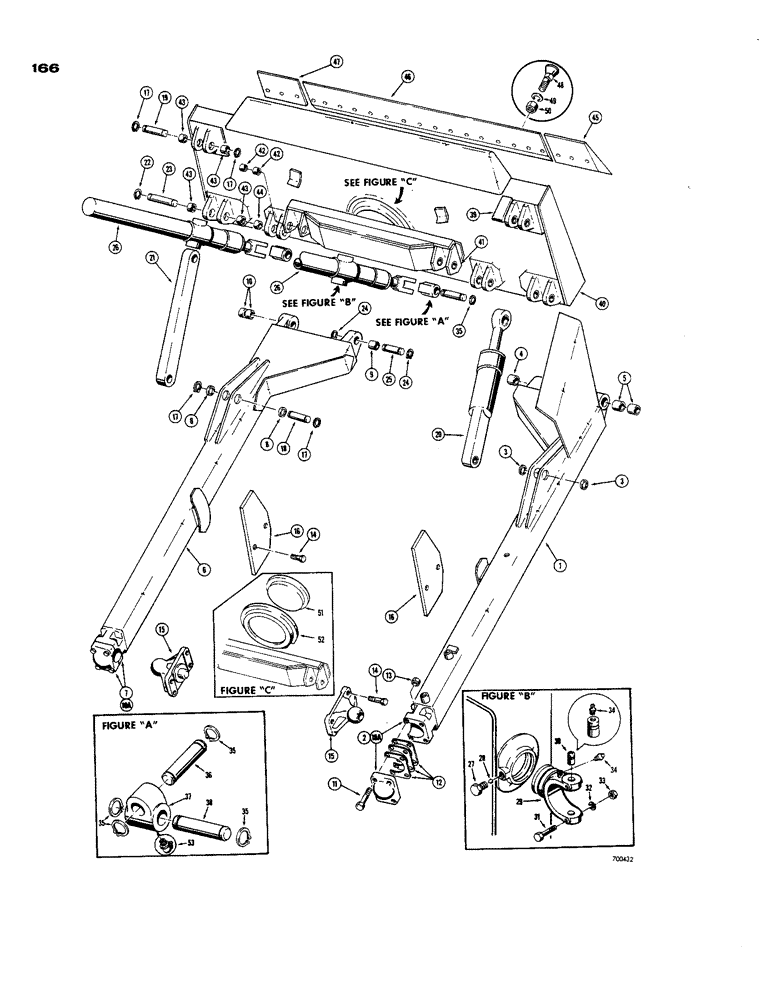

Запчасти Case 850 (166) - POWER TILT DOZER (05) - UPPERSTRUCTURE CHASSIS

1

D39584

SPARE PART Dozer, RH

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - push beam, included in D32855 kit

1шт.

3

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

Tilt cylinder lug

2шт.

4

D32786

BUSHING,31.98mm ID x 41.27mm OD x 47.5mm L

Push beam at moldboard, inner

1шт.

5

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

Push beam at moldboard, outer

2шт.

6

D39583

SPARE PART Dozer, LH

1шт.

7

NSS

NOT SOLD SEPARAT

CAP - push beam, included in D32855 kit

1шт.

8

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

Strut lug

2шт.

9

D32786

BUSHING,31.98mm ID x 41.27mm OD x 47.5mm L

Push beam at moldboard, inner

1шт.

10

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

Push beam at moldboard, outer

2шт.

D32855

SPARE PART KIT - pivot bracket (Included in D39584 and D39583)

2шт.

10a

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - see ref. no. 2 and 7

1шт.

11

14-1064

BOLT,Hex, 5/8" - 18 x 4", Gr 5

4шт.

12

D49981

SHIM,1/32" Thk

Push trunnion

1шт.

13

231-46110

LOCK NUT,5/8"-18, GB

Hex

4шт.

14

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

12шт.

15

D32920

SPARE PART Push

2шт.

16

D39581

RUB PLATE - push beam

2шт.

17

D25279

SNAP RING,M35, Int

8шт.

18

D25078

PIN

Tilt cylinder and strut at push beam

2шт.

19

D32930

PIN,38.1mm OD x 127mm L

Tilt cylinder and strut at moldboard

2шт.

20

REF

INSTRUCTION

CYLINDER - tilt (See Figure 196 for cylinders)

1шт.

21

D32918

SPARE PART Push, Serial Range: beam-moldboard

1шт.

22

D25279

SNAP RING,M35, Int

4шт.

23

D32931

PIN

Push beam to moldboard, outer

2шт.

24

D26918

SNAP RING,#125, Ext

4шт.

25

D32933

PIVOT PIN,31.75mm OD x 127mm L

Push beam to moldboard, inner

2шт.

26

REF

INSTRUCTION

CYLINDER - lift (See Figure 194 for cylinders)

2шт.

27

D28481

PLUG

Ball retaining

2шт.

28

211-17

BALL,3/4" Dia

Trunnion retaining

38шт.

29

D24497

TRUNNION

Lift cylinder mounting

2шт.

30

D28482

PIN

Lift cylinder mounting

4шт.

31

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

25-106

NUT,3/8"-16, G5

Hex

4шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight (1/8" NPT)

6шт.

35

D26918

SNAP RING,#125, Ext

8шт.

36

D32932

PIN,31.75mm OD x 112.78mm L

Lift, Serial Range: cylinder-universal

2шт.

37

D32926

UNIVERSAL JOINT

Lift, Serial Range: cylinder-moldboard

2шт.

38

D32933

PIVOT PIN,31.75mm OD x 127mm L

, Serial Range: Universal-moldboard

2шт.

39

D36347

SPARE PART GAUGE - dozer leveling (Before dozer S/N 1021451)

1шт.

D42479

SPARE PART Dozer leveling (Dozer S/N 1021451 and after)

1шт.

40

D41233

SPARE PART Power Tilt Dozer (88-/14" wide)

1шт.

41

D43100

SPARE PART Lift

1шт.

42

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

Moldboard at lift beam

4шт.

43

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

At tilt cyl., strut and outer push beam lug

8шт.

44

D32890

BUSHING

Moldboard at push beam, inner lug

4шт.

45

70441

BLADE

CUTTING EDGE - end, RH

1шт.

46

R23000

EDGE, CUTTING

Center

1шт.

47

70442

BLADE

CUTTING EDGE - end, LH

1шт.

48

19-1032

BOLT,5/8" - 11 x 2", Gr 5

Plow

22шт.

49

92-10

LOCK WASHER,5/8"

22шт.

50

25-1010

NUT,5/8"-11, G5

22шт.

D47996

KIT

Lift beam swivel

1шт.

51

NSS

NOT SOLD SEPARAT

SWIVEL - blade

1шт.

52

NSS

NOT SOLD SEPARAT

RING - swivel

1шт.

53

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 deg.

2шт.
