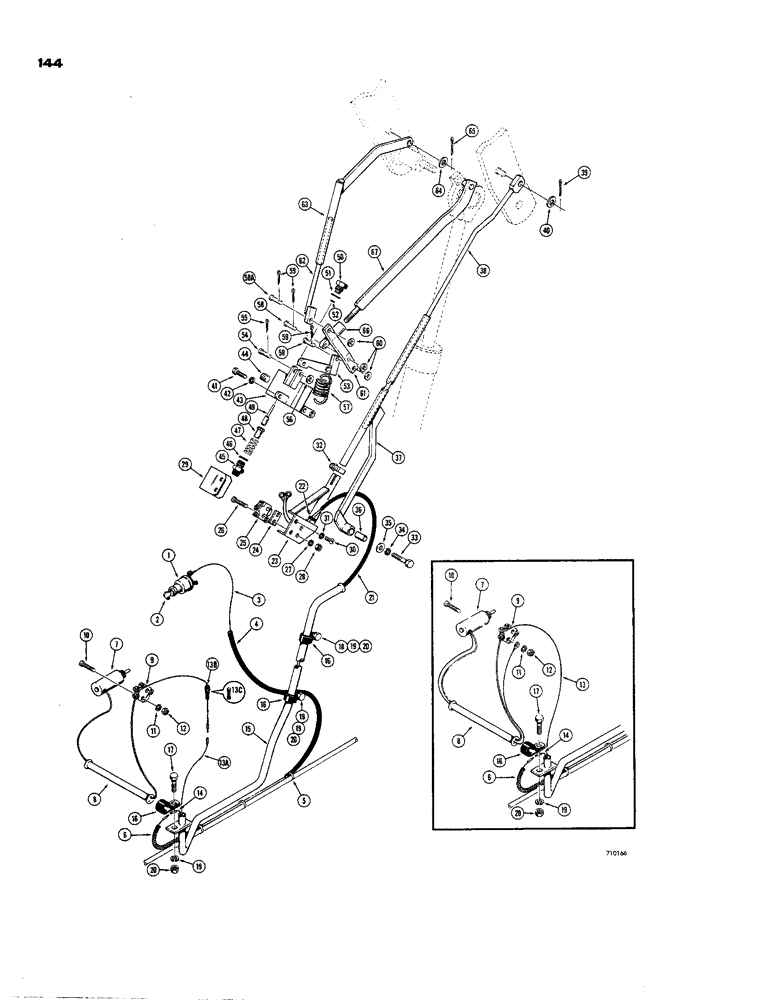

Запчасти Case 850 (144) - RETURN TO DIG AND ANTI-ROLLBACK (05) - UPPERSTRUCTURE CHASSIS

D35092

SWITCH

AND KEY - electrical

1шт.

1

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.

2

D36822

KEY

- switch, pair

1шт.

3

D43163

WIRE - electrical, white (Battery terminal of switch to limit switch)

1шт.

4

D42930

LOOM - wire protector

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wire tie

3шт.

6

D43785

GUARD ASSY.

LOOM - wire protector

1шт.

7

D40892

X

SOLENOID - electrical (Used before tractor S/N 7072855) When stock is exhausted, order D45387 solenoid, D44305 fuse, D44304 holder assembly and D45395 lead for service

1шт.

7a

D45387

SOLENOID

- electrical (Used on tractor S/N 7072855 and after)

1шт.

8

D42927

TUBE

- wire protector

1шт.

9

D40921

SWITCH

- limit, Serial Range: return-dig

1шт.

10

169-143

SCREW,Sl Fil Hd, #6 - 32 x 1 1/2"

- machine, fillister head (#6 - 32 NC x 1-1/2") Zinc plated

2шт.

11

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

4шт.

12

129-15

NUT,#6-32

2шт.

13

D42929

CABLE PULLING GRIP

WIRE - electrical (Used with D40892 solenoid)

1шт.

13a

D45395

CABLE

WIRE - electrical, lead (Used with D45387 solenoid)

1шт.

13b

D44304

HOLDER

- fuse (Used with D45387 solenoid)

1шт.

13c

D44305

FUSE

- electrical (Used with D45387 solenoid)

1шт.

14

D42928

ELECTRICAL WIRE

WIRE - electrical, white (To common terminal of limit switch)

1шт.

15

D42925

TUBE - cable guard

1шт.

16

NLS

NO LONGER SERVICED

- tube

3шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

18

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

19

92-6

LOCK WASHER,3/8"

3шт.

20

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

21

D42930

LOOM - wire protector

1шт.

22

49560

BAR

- rubber

1шт.

23

D40884

BOX

- switch

1шт.

24

D40924

SHIM

SPACER - switch

1шт.

25

D40921

SWITCH

- limit, Serial Range: return-dig

1шт.

26

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

- machine, fillister head (#6 - 32 NC x 1-1/4") Zinc plated

2шт.

27

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

28

129-15

NUT,#6-32

2шт.

29

D40922

COVER

- switch box

1шт.

30

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

RHMS - #8 - 32 NC x 1/4" (Zinc plated)

2шт.

31

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

2шт.

32

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP -tube

1шт.

33

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.

35

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

36

D40925

SPACER

SLEEVE - tube

1шт.

37

D40879

TUBE

- rod support

1шт.

38

D40907

ROD - limit switch

1шт.

39

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

40

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

41

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

42

92-6

LOCK WASHER,3/8"

2шт.

D41050

VALVE

- hydraulic lock, anti-rollback

1шт.

43

D41063

LOCK

BODY - valve

1шт.

44

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

PLUG - pipe, square socket head (1/2" NPT)

1шт.

45

D43832

FITTING

ADAPTER - special

1шт.

46

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

47

D43831

SPRING

- restrictor

1шт.

48

D41036

FITTING

RESTRICTOR - flow control

1шт.

49

D41060

PLUNGER

- valve

1шт.

50

D41051

GLAND

- valve

1шт.

51

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

52

D41038

SEAL

- "O"ring

1шт.

53

D41059

LEVER

- anti rollback control, at valve

1шт.

54

D42809

PIN

- clevis

1шт.

55

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

56

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

57

D41041

SPRING

- lever return

1шт.

58

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

58a

141-11

CLEVIS PIN,3/8" x 1 1/4"

PIN - clevis

1шт.

59

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

60

195-25

WASHER,3/8"

- plain () 3/8"

3шт.

61

D43128

- connecting, at rollback adjustment and push rods

1шт.

62

D43127

ROD

- push, valve closing

1шт.

63

D43131

TUBE - push rod engagement (Used before tractor S/N 7072756)

1шт.

NLS

NO LONGER SERVICED

TUBE - push rod engagement (Used on tractor S/N 7072756 and after)

1шт.

64

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

65

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

66

D41044

ROD

END - rollback adjustment rod

1шт.

67

D41066

ROD

- rollback adjustment

1шт.
