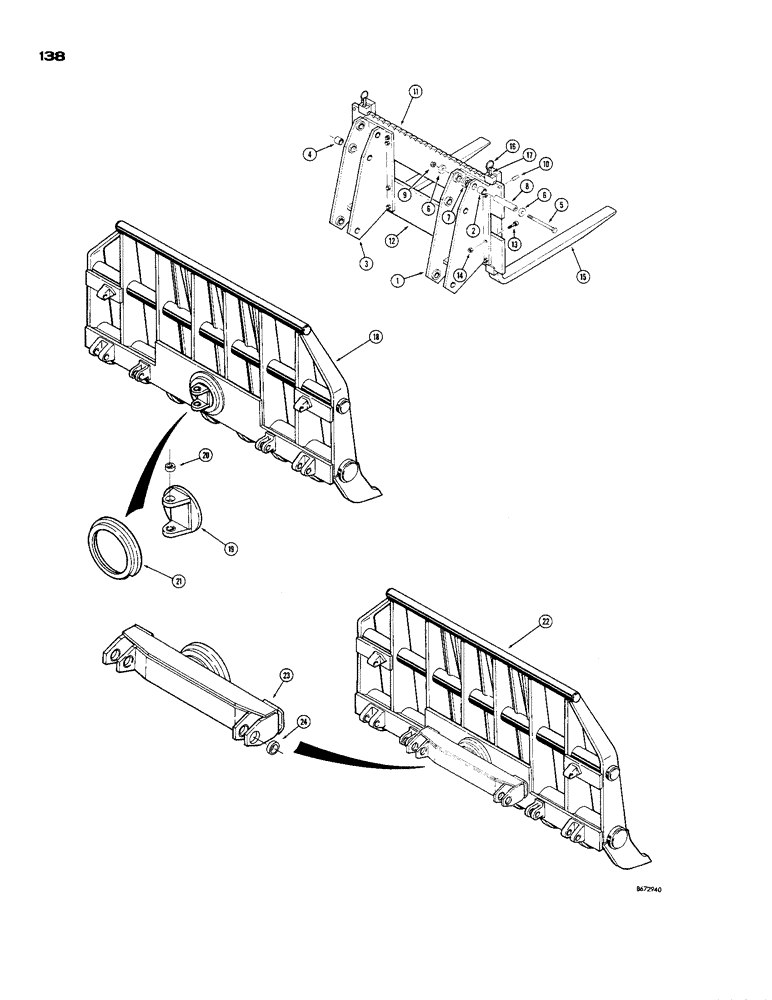

Запчасти Case 850 (138) - PALLET FORKS (05) - UPPERSTRUCTURE CHASSIS

D14182

PALLET FORKS - Loader, machinery item

1шт.

1

D43502

BRACKET - pallet fork, R.H.

1шт.

2

D43508

BUSHING

- bracket

6шт.

3

D43501

BRACKET - pallet fork, L.H.

1шт.

4

D43508

BUSHING

- bracket

6шт.

5

13-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

4шт.

6

72915

GASKET

- special

8шт.

7

D43492

SPACER - dump link and loader arm

4шт.

8

R13427

PIN

- mounting

4шт.

9

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex, lock (3/4" - 10 NC)

4шт.

10

138-190

LOCK PIN,7/16" x 2", Slotted

PIN, 7/16" x 2", Slotted

2шт.

11

D43494

PLATE - backing, upper

1шт.

12

D43495

PLATE - backing, lower

1шт.

13

61-832

HEX SOC SCREW,1/2"-13 x 2"

SCREW - hex. socket head, 1/2" - 13 NC x 2"

16шт.

14

131-354

LOCK NUT,1/2"-13, GA

NUT - hex., lock (1/2" - 13 NC)

16шт.

15

D36809

FORK

- pallet, 48" long

2шт.

16

D41289

RING

- pin retaining

1шт.

17

D38359

PIN,12.7mm OD x 95.25mm L

PIN - fork positioning

1шт.

18

D42922

RAKE - brush, Power Angling Dozer (Machinery item)

1шт.

D43435

KIT

- brush rank swivel, brake used on models with power angling dozer

1шт.

19

NSS

NOT SOLD SEPARAT

SWIVEL - pivotl, brush brake used on models with power angling dozer

1шт.

20

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- swivel, brush brake used on models with power angling dozer

2шт.

21

NSS

NOT SOLD SEPARAT

RING - swivel, retaining, brush brake used on models with power angling dozer

1шт.

22

D42923

RAKE - brush, Power Tilt Dozer (Machinery item)

1шт.

23

D43100

BEAM - lift, used on models with power tilt dozer

1шт.

24

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

- beam, used on models with power tilt dozer

4шт.
