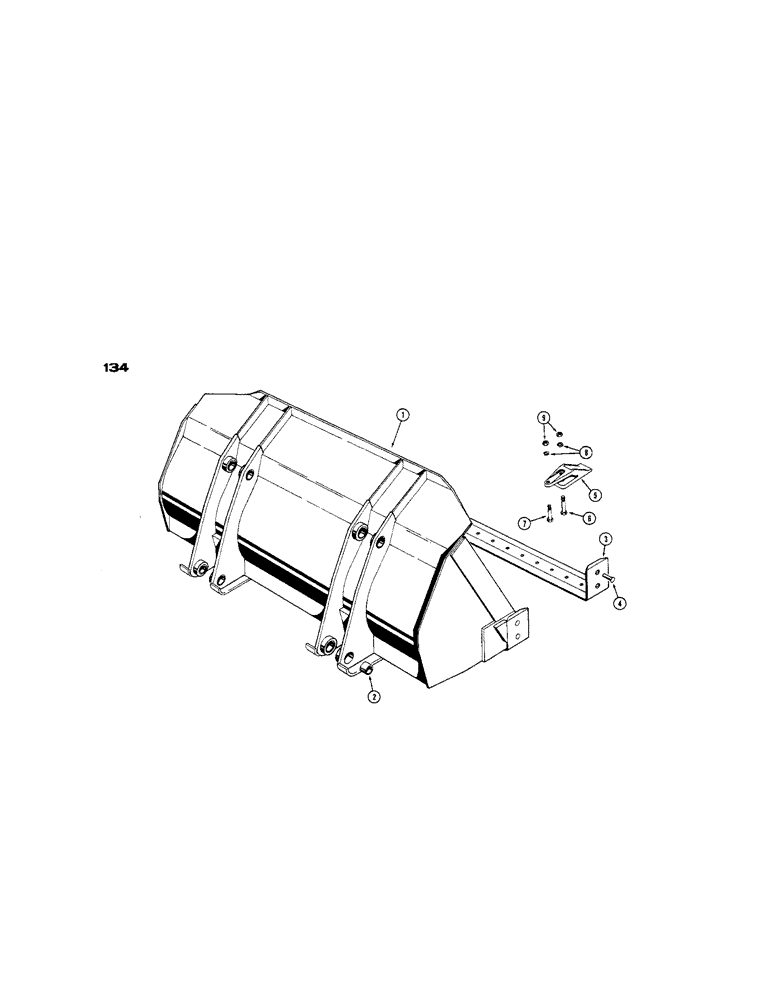

Запчасти Case 850 (134) - LOADER BUCKET, 1-3/8 CUBIC YARD BUCKET (MACHINERY ITEM) (05) - UPPERSTRUCTURE CHASSIS

1

D13841

BUCKET ASSEMBLY - loader, 1-3/8 cu. yd. (Use D49232 bucket for service)

1шт.

2

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- bucket ear

8шт.

3

D29809

EDGE, CUTTING

CUTTING EDGE - bucket

1шт.

4

46-1030

RIVET

- 5/8" dia. x 1-7/8"

22шт.

5

D29445

TOOTH

- bucket, also uses D40447 H & L tooth

6шт.

6

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4"

6шт.

7

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

6шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

9

25-1010

NUT,5/8"-11, G5

12шт.
