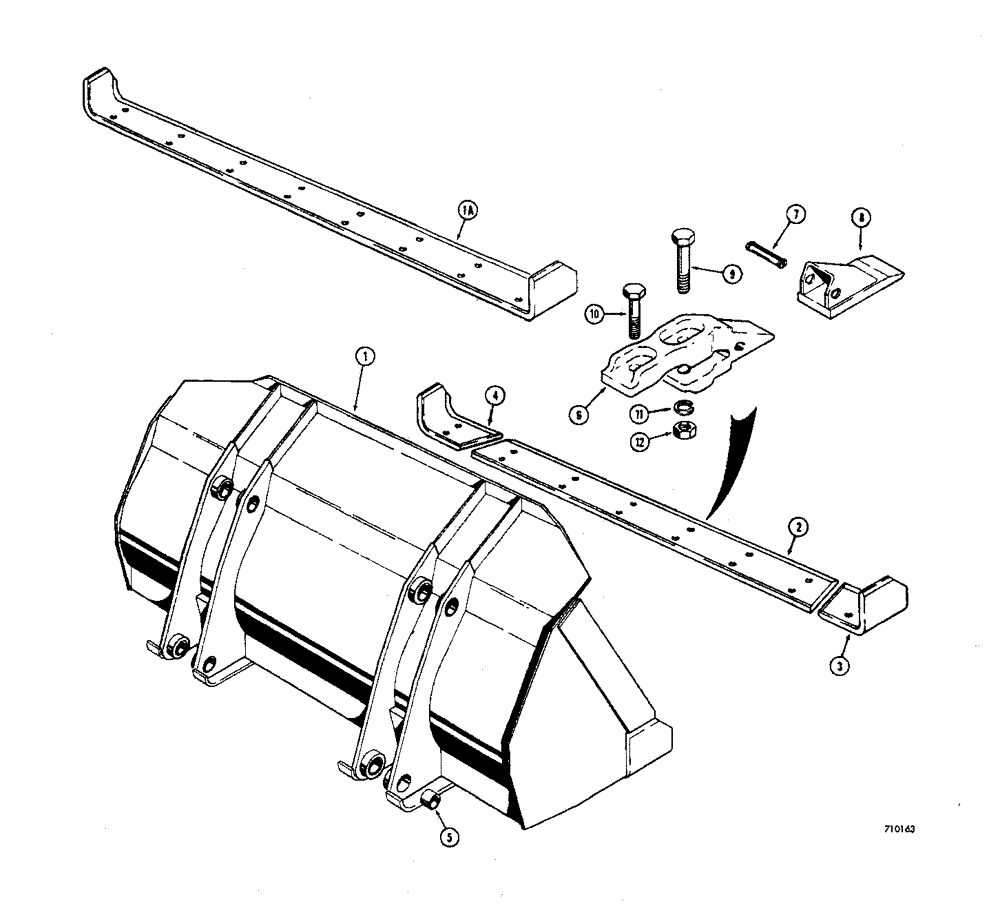

Запчасти Case 850 (134[1]) - LOADER BUCKET 1-3 /8 CUBIC YARD BUCKET ( MACHINERY ITEM) W/RIVETED ON CUTTING EDGE (05) - UPPERSTRUCTURE CHASSIS

1

D49232

BUCKET ASSEMBLY - loader, 1-3/8" cu. yd.

1шт.

1a

D51888

BLADE

CUTTING EDGE - one piece

1шт.

2

D49231

CUTTING EDGE

CUTTING EDGE - center, 63-5/8"

1шт.

3

D49200

BLADE

CUTTING EDGE - end, R.H.

1шт.

4

D49201

BLADE

CUTTING EDGE - end, L.H.

1шт.

5

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

BUSHING - bucket ear

8шт.

Also uses D40447 H & L tooth, (1) D39090 tip, (1) D39448 flexpin and (1) NSS shank.

1шт.

NLS

NO LONGER SERVICED

ASSEMBLY - bucket

8шт.

6

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

7

L32090

PIN

FLEX PIN - tooth

1шт.

8

3-L32089

POINT - tooth

1шт.

9

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

HHCS - 5/8" - 11 NC x 3-1/2"

8шт.

10

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 3-1/2"

8шт.

11

92-10

LOCK WASHER,5/8"

16шт.

12

25-1010

NUT,5/8"-11, G5

16шт.
