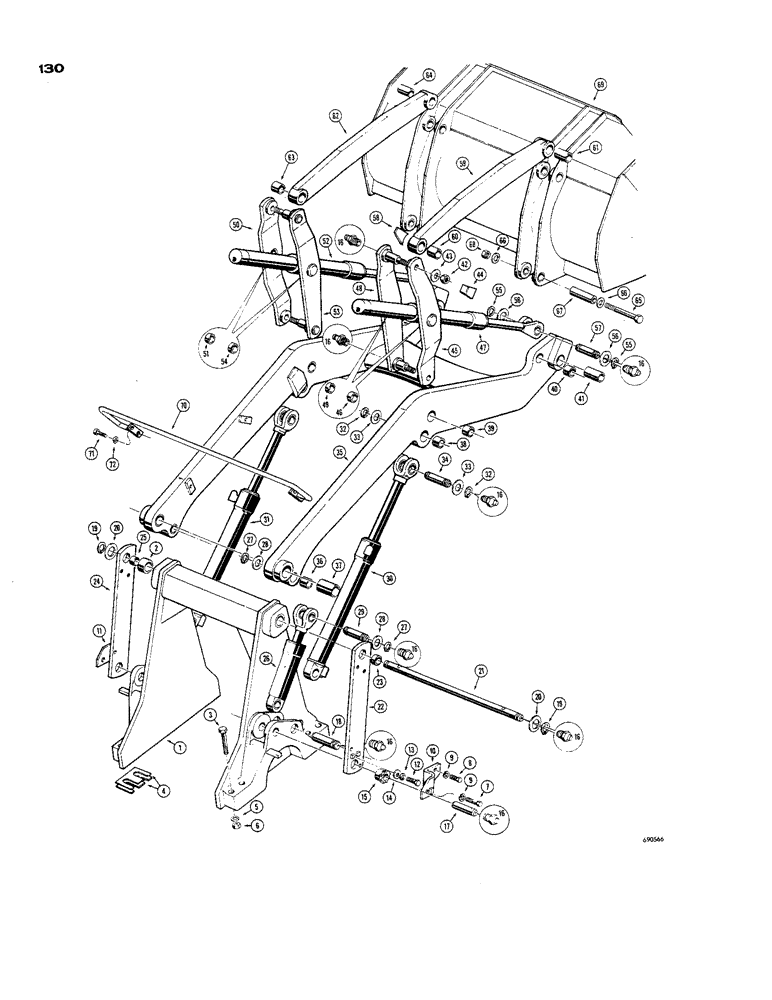

Запчасти Case 850 (130) - LOADER (05) - UPPERSTRUCTURE CHASSIS

1

D40062

FRAME - upright, loader

1шт.

2

D40443

BUSHING

- upright frame

2шт.

3

13-20104

BOLT,Hex, 1-1/4" - 7 x 6-1/2", Gr 5

HHCS - 1-1/4" - 7 NC x 6-1/2"

8шт.

4

D40034

SHIM,.0558" Thk

Upright frame .0558" Thk

1шт.

5

D38676

WASHER

- special

8шт.

6

230-41120

LOCK NUT,1 1/4"-7, GA

NUT - hex., lock (1-1/4" - 7 NC)

8шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

8

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

D52282

STRAP

- pin retaining (R.H.)

1шт.

11

D52283

STRAP

- pin retaining (L.H.)

1шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

13

92-8

LOCK WASHER,1/2"

2шт.

14

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

15

D41469

BUSHING

- eccentric, tension adjustment

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

16шт.

17

D40029

PIN

- Hydra-Leveling cylinder to upright frame

2шт.

18

D40028

PIN

- lift cylinder to upright frame

2шт.

19

D40439

RING

- retaining

2шт.

20

D41472

WASHER

- special

2шт.

21

D40042

ROD

SHAFT - pivot, lift frame

1шт.

22

D41445

STRAP - tension, R.H.

1шт.

23

D41446

BUSHING

- strap

1шт.

24

D41444

STRAP - tension, L.H.

1шт.

25

D41446

BUSHING

- strap

1шт.

26

REF

INSTRUCTION

CYLINDER - Hydra-Leveling (See Figure 188 for cylinders)

2шт.

27

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

4шт.

28

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, steel (1-13/16")

4шт.

29

D40040

PIN

- Hydra-Leveling cylinder to lift frame

2шт.

30

REF

INSTRUCTION

CYLINDER - lift, R.H. (See Figure 190 for cylinders)

1шт.

31

REF

INSTRUCTION

CYLINDER - lift, L.H. (See Figure 190 for cylinders)

1шт.

32

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

4шт.

33

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, steel (2-1/16")

4шт.

34

D40041

PIN

- lift cylinder to lift frame

2шт.

35

D40084

FRAME - loader lift (Used before tractor sreial no 7073158)

1шт.

D47983

FRAME - loader lift (Used on tractor serial no. 7073158 and after)

1шт.

36

D40089

BUSHING

- at Hydra-Leveling cylinder

2шт.

37

D41383

BUSHING

- at upright frame

2шт.

38

D40050

BUSHING,51.03mm ID x 60.33mm OD x 50.8mm L

- at lift cylinder

2шт.

39

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- at dump linkage (Used on D40084 frame only)

1шт.

D43508

BUSHING

- at dump linkage (Used on D47983 frame only)

2шт.

40

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

- at dump cylinder

2шт.

41

D33627

BUSHING

- at bucket

2шт.

42

25-1016

NUT,1"-8, G5

4шт.

43

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

4шт.

44

D40045

ELECTRICAL GAUGE

LEVELING GAUGE - bucket, dump link

1шт.

45

D40429

LINK - dump, R.H. outer (Used with D40084 frame only)

1шт.

For service use D15570 kit. D15570 kit consists of D47988 link, D33627 bushing and D49452 boss (not shown).

1шт.

D47988

LINK

- dump, R.H. outer (Used with D47983 frame only)

1шт.

46

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link

1шт.

47

REF

INSTRUCTION

CYLINDER - dump, R.H. (See Figure 186 for cylinders)

1шт.

48

D45472

LINK

- dump, R.H. inner (Used with D40084 frame only)

1шт.

For service use D15570 kit. D15570 kit consists of D47988 link, D33627 bushing and D49452 boss (not shown).

1шт.

D47990

LINK

- dump, R.H. inner (Used with D47983 frame only)

1шт.

49

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link

1шт.

50

D40430

LINK - dump, L.H. outer (Used with D40084 frame only)

1шт.

For service use D15569 kit. D15569 kit consists of D47989 link (Ref. 45), D47900 link (Ref. 48), D40045 leveling gauge (Ref. 44), D40033 leveling gauge (Ref. 58), D45474 link (Ref. 63, Figure 144), (Ref. 50), D47991 link (Ref. 53), D335627 bushing and D49452 boss (not shown).

1шт.

D47989

LINK

- dump, L.H. outer (Used with D47983 frame only)

1шт.

51

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link

1шт.

52

REF

INSTRUCTION

CYLINDER - dump, L.H. (See Figure 186 for cylinders)

1шт.

53

D40438

LINK

- dump, L.H. outer (Used with D40084 frame only)

1шт.

For service use D15569 kit. D15569 kit consists of D47989 link (Ref. 45), D47900 link (Ref. 48), D40045 leveling gauge (Ref. 44), D40033 leveling gauge (Ref. 58), D45474 link (Ref. 63, Figure 144), (Ref. 50), D47991 link (Ref. 53), D335627 bushing and D49452 boss (not shown).

1шт.

D47991

LINK

- dump, L.H. inner (Used with D47983 frame only)

1шт.

54

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link

1шт.

55

D25279

SNAP RING,M35, Int

RING - retaining

4шт.

56

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special

4шт.

57

D40037

PIN,38.1mm OD x 127mm L

- dump cylinder to lift frame

2шт.

58

D40033

GAUGE

LEVELING GAUGE - bucket, dump arm

1шт.

59

D40061

ARM - dump, R.H. (When stock is exhausted, order D47864 link for service)

1шт.

D47864

LINK ASSY.

ARM - dump, R.H.

1шт.

60

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- arm, at dump link (2" long)

1шт.

61

D33627

BUSHING

- arm, at bucket (3-1/4" long)

1шт.

62

D40060

ARM - dump, L.H. (When stock is exhausted, order D47865 link for service)

1шт.

D47865

POWER ARM

ARM - dump, L.H.

1шт.

63

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- arm, at dump link (2" long)

1шт.

64

D33627

BUSHING

- arm, at bucket (3-1/4" long)

1шт.

65

13-12140

BOLT,Hex, 3/4" - 10 x 8-3/4", Gr 5

HHCS - 3/4" - 10 NC x 8-3/4"

4шт.

66

72915

GASKET

- special

8шт.

67

R19659

PIN

- bucket

4шт.

68

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC)

4шт.

69

REF

INSTRUCTION

BUCKET - loader (See Figure 134 andf 136 for options)

1шт.

70

D43507

HANDLE

HAND RAIL - loader

1шт.

71

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

72

92-8

LOCK WASHER,1/2"

4шт.
