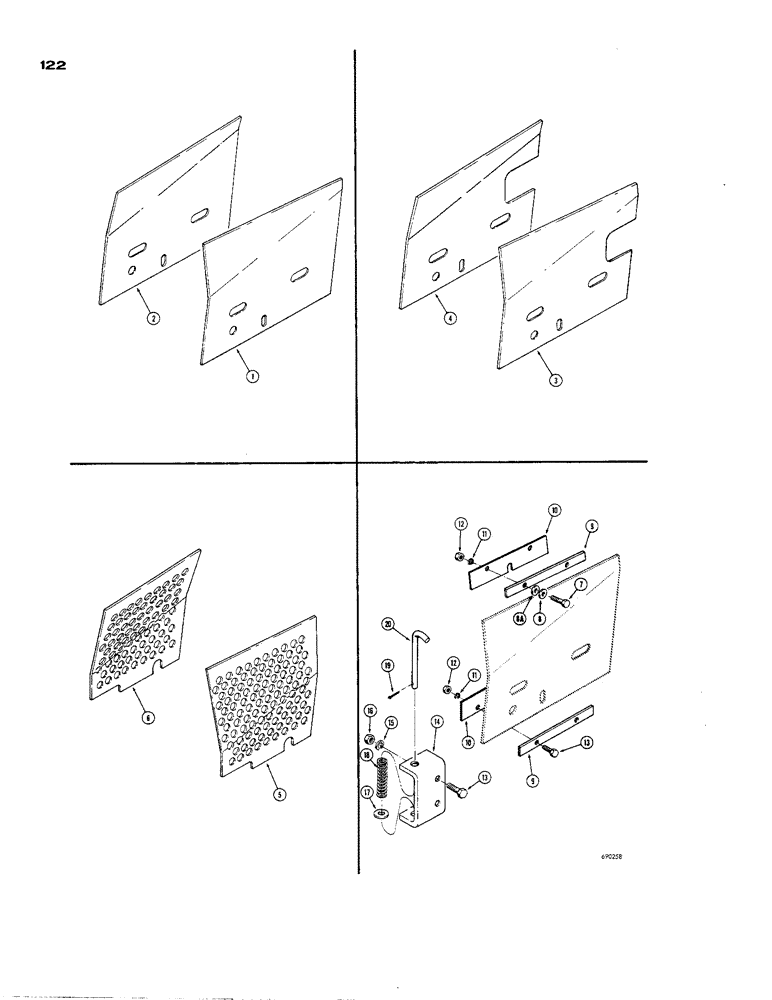

Запчасти Case 850 (122) - SIDE SHIELDS & BRUSH GUARDS, SIDE SHIELDS & BRUSH GUARDS, SIDE SHIELDS (USED ON LOADER OR DRAWBAR) (05) - UPPERSTRUCTURE CHASSIS

1

D41338

GUARD

SHIELD - side, engine front (R.H.)

1шт.

2

D41337

GUARD

SHIELD - side, engine front (L.H.)

1шт.

3

D41340

GUARD

SHIELD - side, engine front (R.H.), used on dozer models only

1шт.

4

D41339

FRAME

SHIELD - side, engine front (L.H.), used on dozer models only

1шт.

5

D41342

GUARD

- brush, engine rear (R.H.), used on all models

1шт.

6

D41341

GUARD

- brush, engine rear (L.H.), used on all models

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Mounting parts Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

8

195-25

WASHER,3/8"

- plain () Upper cap screws only, mounting parts 3/8"

4шт.

8a

D44499

SHIM

mounting parts

1шт.

9

D41343

BUSHING

SPACER - retainer, mounting parts

4шт.

10

D41344

RETAINER

- shield or guard, mounting parts

4шт.

11

92-6

LOCK WASHER,3/8"

mounting parts 3/8"

8шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), mounting parts

8шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Mounting parts Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

14

D41345

BRACKET

- latch mounting, parts

2шт.

15

92-6

LOCK WASHER,3/8"

mounting parts 3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), mounting parts

4шт.

17

195-33

WASHER,1/2"

- plain (), mounting parts 1/2"

2шт.

18

A31171

SPRING

- latch, mounting parts

1шт.

19

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), , Mounting parts 5/32" x 3/4"

1шт.

20

D41346

LATCH

- shield or guard, mounting parts

2шт.
