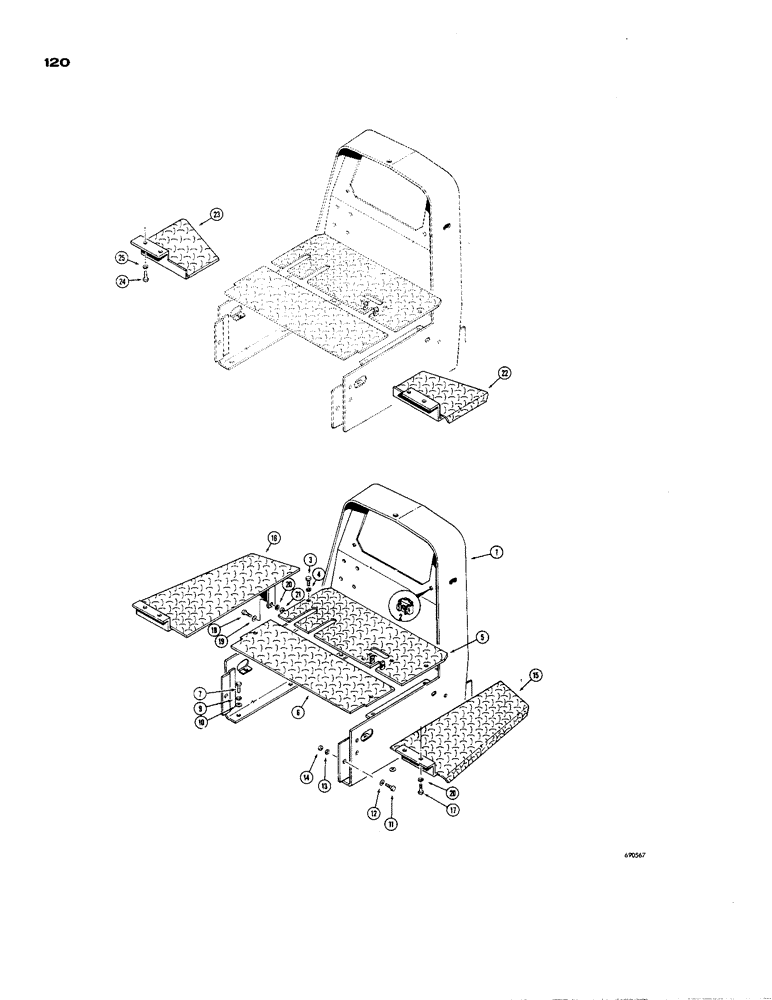

Запчасти Case 850 (120) - COWL, FLOOR PLATES AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

1

D39878

COWL - crawler

1шт.

2

131-139

SPRING NUT,Ret, 5/16"-24

Tinnerman Ret, 5/16"-24

4шт.

3

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

D39863

FLOOR PLATE - front

1шт.

6

D39879

FLOOR PLATE - rear

1шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Cowl mounting) Center and rear holes Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

8

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4" (Cowl mounting) Front holes (Not illustrated)

2шт.

9

92-8

LOCK WASHER,1/2"

6шт.

10

195-33

WASHER,1/2"

- plain () 1/2"

6шт.

11

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

12

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

13

92-8

LOCK WASHER,1/2"

2шт.

14

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

15

D39618

PLATE - step, R.H. (Drawbar and Dozer models only)

1шт.

16

D39617

X

PLATE - step, L.H. (Drawbar and Dozer models only)

1шт.

17

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

18

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

19

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

20

92-8

LOCK WASHER,1/2"

6шт.

21

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 nC)

2шт.

22

D41263

PLATE - step, R.H. (Loader models only)

1шт.

23

D41264

PLATE - stop, L.H. (Loader models only)

1шт.

24

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

25

92-8

LOCK WASHER,1/2"

4шт.
