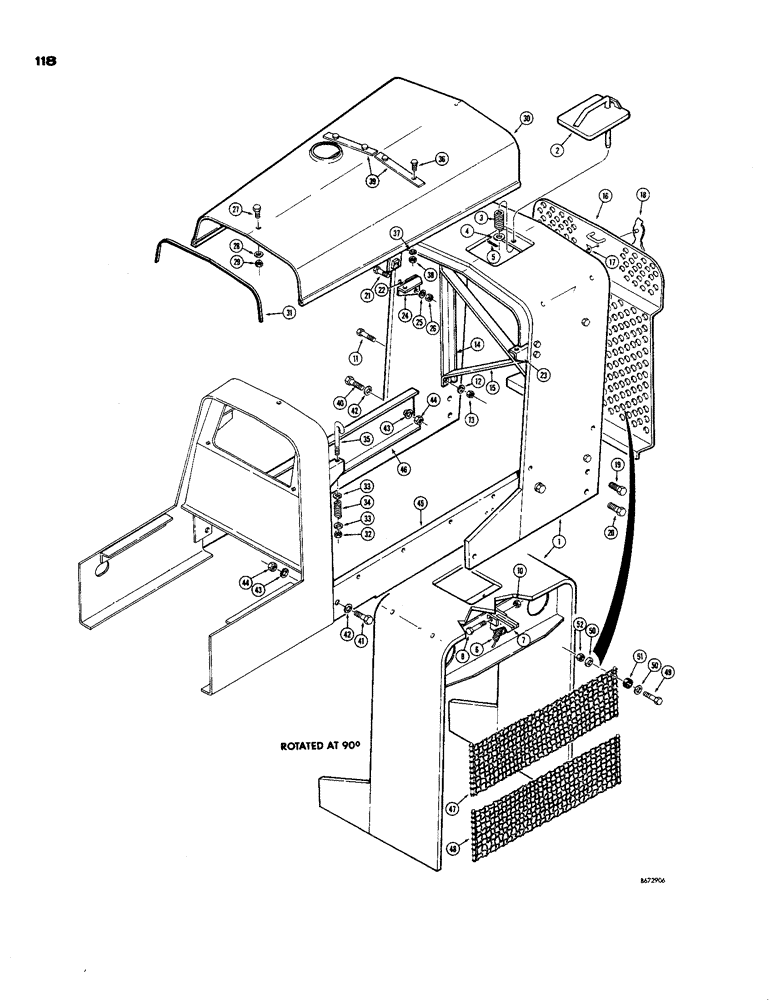

Запчасти Case 850 (118) - HOOD, SHROUD AND GRILLE (05) - UPPERSTRUCTURE CHASSIS

1

D41097

GUARD - radiator shroud, Drawbar Models

1шт.

D41096

GUARD - radiator shroud, Dozer Models (Not illustrated)

1шт.

D41095

GUARD - radiator shroud, Loader Models (Not illustrated)

1шт.

2

D41101

LID - radiator

1шт.

3

D49021

VALVE SPRING

SPRING - lid and retainer

1шт.

4

195-33

WASHER,1/2"

- plan () 1/2"

1шт.

5

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

6

NLS

NO LONGER SERVICED

SPRING - radiator guard to grill latch

1шт.

7

D41104

LATCH - grill

1шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

9

RESERVED

1шт.

10

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

1шт.

11

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

14

D41110

BRACE - grill

2шт.

15

D41112

BRACE

- radiator guard

1шт.

16

D41109

GUARD

GRILLE - radiator

1шт.

17

D41526

CLIP - eagle retaining

2шт.

18

D40300

EMBLEM

MEDALLION - eagle (If used)

1шт.

19

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

6шт.

20

13-1632

BOLT,Hex, 1" - 8 x 2", Gr 5, Full Thd

HHCS - 1" - 8 NC x 2"

2шт.

21

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4" (Used with D41366 spacer)

4шт.

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Used with D44695 spacer) Hex, 1/2"-13 x 2", G5

4шт.

22

D41366

SPACER - bracket (Used before tractor S/N 7073116)

2шт.

D44695

SPACER - bracket (Used on tractor S/N 7073116 and after)

2шт.

23

D35746

BRACKET

- hood mounting, R.H. (All models except Dozers)

1шт.

D41453

BRACKET - hood mounting, R.H. (Dozer models only)

1шт.

24

D35745

SPLIT PIN/SAFETY PIN

BRACKET - hood mounting, L.H. (All models except Dozers)

1шт.

D41452

BRACKET - hood mounting, L.H. (Dozer models only)

1шт.

25

92-8

LOCK WASHER,1/2"

4шт.

26

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

28

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

29

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

1шт.

30

D39881

HOOD - engine

1шт.

31

D35820

GUARD - rear hood edge

1шт.

32

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 nC)

4шт.

33

195-25

WASHER,3/8"

- plain () 3/8"

8шт.

34

F60482

SPRING

- latch

4шт.

35

D41350

BOLT

LATCH - special, hood hold down

4шт.

36

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

37

92-6

LOCK WASHER,3/8"

4шт.

38

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

39

D41367

DEFLECTOR - dirt (Optional on Loader models)

2шт.

40

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

2шт.

41

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

42

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

43

92-8

LOCK WASHER,1/2"

4шт.

44

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

45

D39881

ENGINE PANEL - side, R.H.

1шт.

46

D39880

ENGINE PANEL - side, L.H.

1шт.

47

D41357

SCREEN - brush, upper (Front)

1шт.

48

D41358

SCREEN - brush, lower (Front)

1шт.

49

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

14шт.

50

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special

28шт.

51

R20553

WASHER

SPACER - screen

14шт.

52

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

14шт.
