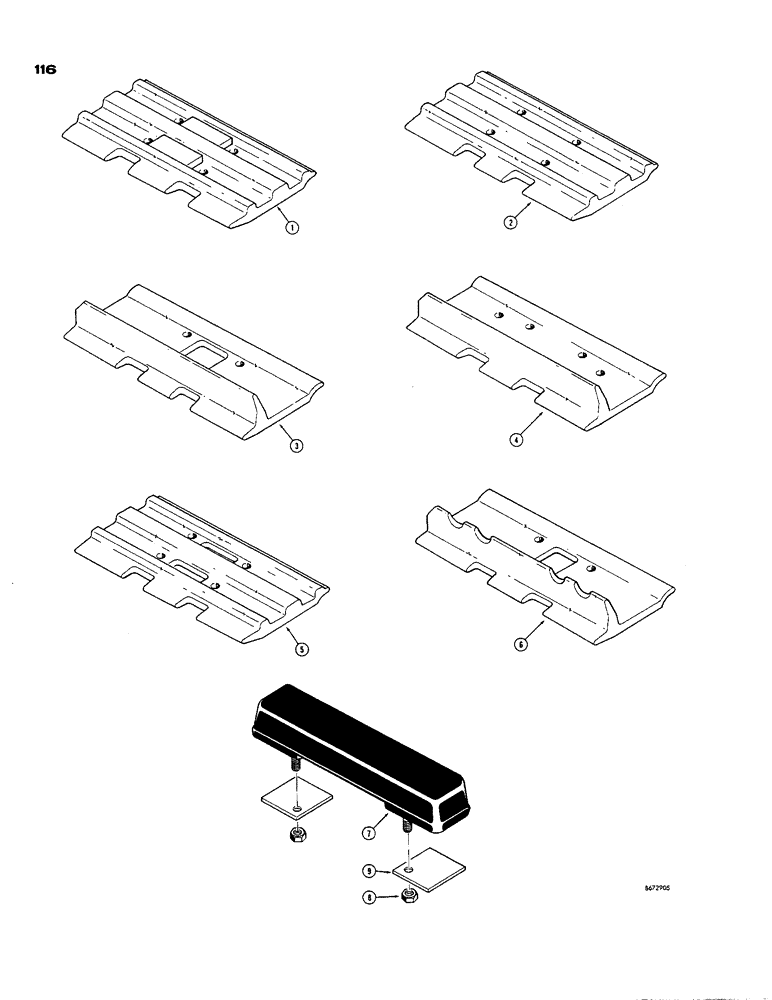

Запчасти Case 850 (116) - TRACK SHOES, SEMI-GROUSER, MINING SPECIAL (04) - UNDERCARRIAGE

1

D41578

TRACK SHOE

SHOE - track, 10" (All models)

78шт.

2

D41123

PLATE

SHOE - track, 12" (All models), semi grouser closed

78шт.

2

D41124

NO LONGER SERVICED

SHOE - track, 13" (All models), semi grouser closed

78шт.

2

D41127

TRACK SHOE

SHOE - track, 14" offset (L.H.) Loader models only, semi grouser closed

39шт.

2

D41128

TRACK SHOE

SHOE - track, 14" offset (R.H.) Loader models only, semi grouser closed

39шт.

2

D41125

PLATE

SHOE - track, 15" (All models except Loader), semi grouser closed

72шт.

2

D41126

TRACK SHOE

SHOE - track, 16" (All models except Loader), semi grouser closed

72шт.

3

D41146

SHOE - track, 12" (All models except Loader), grouser open center

72шт.

3

D41140

SHOE - track, 13" (All models except Loader), grouser open center

72шт.

3

D41141

SHOE - track, 14" (All models except Loader), grouser open center

72шт.

3

D41142

SHOE - track, 15" (All models except Loader), grouser open center

72шт.

3

D41143

PLATE

SHOE - track, 16" (All models except Loader), grouser open center

72шт.

3

D41144

TRACK SHOE

SHOE - track, 17" (Drawbar models only), grouser open center

72шт.

3

D41145

TRACK SHOE

SHOE - track, 18" (Drawbar models only), grouser open center

72шт.

4

D41131

SHOE - track, 12" (All models except Loader), grouser closed

72шт.

4

D41132

TRACK SHOE

SHOE - track, 13" (All models except Loader), grouser closed

72шт.

4

D41133

TRACK SHOE

SHOE - track, 14" (All models except Loader), grouser closed

72шт.

4

D41134

PLATE

SHOE - track, 15" (All models except Loader), grouser closed

72шт.

4

D41135

TRACK SHOE

SHOE - track, 16" (All models except Loader), grouser closed

72шт.

4

D41136

TRACK SHOE

SHOE - track, 17" (Drawbar models only), grouser closed

72шт.

4

D41137

TRACK SHOE

SHOE - track, 18" (All except Loader and Power Tilt Dozer), grouser closed

72шт.

4

D41323

PLATE

SHOE - track, 20" (Drawbar models only), grouser closed

72шт.

5

D41116

TRACK SHOE

SHOE - track, 12" (All models), semi grouser open center

78шт.

5

D41117

PLATE

SHOE - track, 13" (All models), semi grouser open center

78шт.

5

D41119

TRACK SHOE

SHOE - track, 14" offset (L.H.) Loader models only, semi grouser open center

39шт.

5

D41120

TRACK SHOE

SHOE - track, 14" offset (R.H.) Loader models only, semi grouser open center

39шт.

5

D41118

PLATE

SHOE - track, 15" (All models except Loader), semi grouser open center

72шт.

5

D41121

TRACK SHOE

SHOE - track, 16" (Allmodels except Loader), semi grouser open center

72шт.

6

D41148

X

SHOE - track, 14" (All models except Loader), grouser ice

72шт.

6

D41149

SHOE - track, 15" (All models except Loader), grouser ice

72шт.

6

D41150

TRACK SHOE

SHOE - track, 16" (All models except Loader), grouser ice

72шт.

6

D41151

SHOE - track, 17" (Drawbar models only), grouser ice

72шт.

R3551

KIT

RUBBER TRACK SHOE INSTALLATION - used with D41133 and D41134 track shoes only

1шт.

7

70635

SHOE

- track, rubber

72шт.

8

131-168

LOCK NUT,1/2"-20, GA

NUT - hex., lock (1/2" - 20 NF), rubber track shoe

144шт.

9

R21166

SPACER

- shoe, rubber track

144шт.
