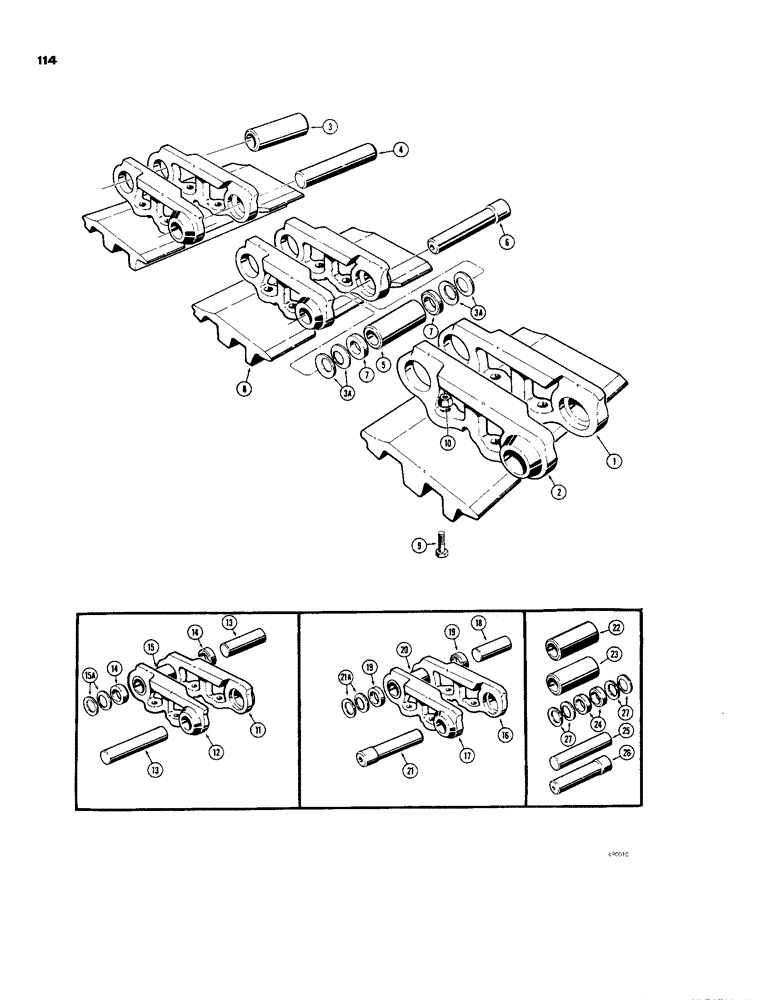

Запчасти Case 850 (114) - TRACK CHAIN - 6 ROLLER (04) - UNDERCARRIAGE

D39758

CHAIN ASSEMBLY - 19 unit (When stock is exhausted, order D45078 19 unit chain assembly for service)

2шт.

D45078

CHAIN (AG)

CHAIN ASSEMBLY - 19 unit, sealed track

2шт.

D39759

X

CHAIN ASSEMBLY - 20 unit (When stock is exhausted, order D45079 20 unit chain assembly for service)

2шт.

D45079

CHAIN (AG)

CHAIN ASSEMBLY - 20 unit, sealed track

2шт.

1

D31710

LINK

- track, R.H. (Order D31820 or D45348 track chain unit kit for service)

20шт.

2

D31709

LINK

- track, L.H. (Order D31820 or D45348 track chain unit kit for service)

20шт.

3

R14892

BUSHING

- track, long (D39758 and D39759 chain assemblies only) when stock is exhausted, order 1 - D45075 track bushing and 4 - D45076 seal washers for service

19шт.

3

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

- track, long (D45078 and D45079 chain assemblies only)

19шт.

3a

D45076

BELLEVILLE SPRING

SEAL - washer (D45078 and D45079 chain assemblies only)

40шт.

4

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard

19шт.

D32164

PIN

- track, service option (.003" oversize)

19шт.

5

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short

1шт.

6

D36511

PIN

- track, master

1шт.

7

R14898

SPACER

BUSHING - spacer (D39758 and D39759 chain assemblies only) when stock is exhausted, order D45272 bushing and 2 - D45076 seals for service, for sealed track each original bushing must be replaced with D45272 bushing and 2 - D45076 seals

2шт.

D45272

BUSHING

- spacer (D45078 and D45079 chain assembly only)

2шт.

8

REF

INSTRUCTION

PLATE - track (See Figure 116 for options)

78шт.

9

D48004

FLANGE BOLT

BOLT - special

312шт.

10

R17415

LOCK NUT

- lock, special

312шт.

D31820

KIT

- track chain unit (Used on models without sealed track) When stock is exhausted, order D45348 sealed track chain unit kit for service

74шт.

D45348

KIT

- track chain unit, sealed track

74шт.

When D45348 track chain unit kit or D45350 master chain unit kit is used to repair an early production unit which does not feature sealed track, (4) D45076 seal washers are not required.

1шт.

11

D31710

LINK

- track, R.H. (Order D31820 or D45348 track chain unit kit for service)

1шт.

12

D31709

LINK

- track, L.H. (Order D31820 or D45348 track chain unit kit for service)

1шт.

13

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard, chain unit kit

2шт.

14

R14898

SPACER

BUSHING - spacer (D31820 track chain unit kit only) when stock is exhausted, order D45272 bushing and 2 - D45076 seals for service, for sealed track each original bushing must be replaced with D45272 bushing and 2 - D45076 seals

2шт.

D45272

BUSHING

- spacer (D45348 sealed track chain unit only)

2шт.

15

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, trackchain unit kit

1шт.

15a

D45076

BELLEVILLE SPRING

SEAL - washer (D45348 sealed track chain unit kit only)

8шт.

D38426

KIT

- master chain unit (Used on models without sealed track) when stock is exhausted, order D45350 sealed track master chain unit kit for service

4шт.

D45350

LINK

KIT - master chain unit, sealed track

4шт.

When D45348 track chain unit kit or D45350 master chain unit kit is used to repair an early production unit which does not feature sealed track, (4) D45076 seal washers are not required.

1шт.

16

D31710

LINK

- track, R.H. (Order D31820 or D45348 track chain unit kit for service), master

1шт.

17

D31709

LINK

- track, L.H. (Order D31820 or D45348 track chain unit kit for service), master

1шт.

18

R14893

PIN,34.9mm OD x 176.22mm L

- track, standard, master chain unit kit

1шт.

19

R14898

SPACER

BUSHING - spacer (D38426 master chain unit kit only) when stock is exhausted, order D45272 bushing and 2 - D45076 seals for service, for sealed track each original bushing must be replaced D45272 bushing and 2 - D45076 seals

2шт.

D45272

BUSHING

- spacer (D45350 master chain unit kit only)

2шт.

20

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, chain unit kit

1шт.

21

D36511

PIN

- master chain unit kit

1шт.

21a

D45076

BELLEVILLE SPRING

SEAL - washer (D45350 master chain unit kit only)

8шт.

D37883

PIN

KIT - pin and bushing (Used on models without sealed track) when stock is exhausted, order D45349 sealed track pin and bushing kit for service

1шт.

D45349

KIT

- pin and bushing, sealed track

1шт.

22

R14892

BUSHING

- track, long (D37883 pin and bushing kit only) when stock is exhausted, order 1 - D45075 track bushing and 4 - D45076 seal washers for service

76шт.

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

- track, long (D45349 pin and bushing kit only)

76шт.

23

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

- master, short, pin kit

4шт.

24

R14898

SPACER

BUSHING - spacer (D37883 pin and bushing kit only) when stock is exhausted, order D45272 bushing and 2 - D45076 seals for service, for sealed track each bushing must be replaced with D45272 bushing and 2 - D45076 seals

8шт.

D45272

BUSHING

- spacer (D45349 pin and bushing kit only)

8шт.

25

D32164

PIN

- track, service option (.003" oversize), bushing kit

76шт.

26

D36511

PIN

- track, master (D37883 pin and bushing kit only)

4шт.

D43541

PIN

- track, master (.003" oversize) D45349 pin and bushing kit only

4шт.

27

D45076

BELLEVILLE SPRING

SEAL - washer (D45349 pin and bushing kit only)

320шт.
