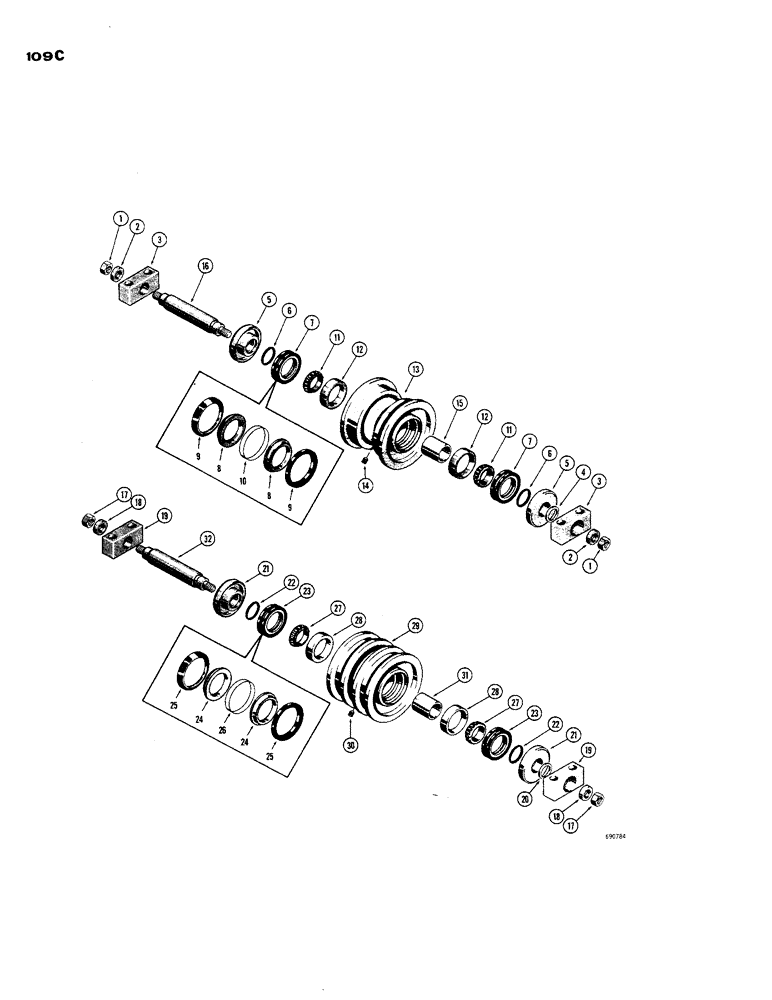

Запчасти Case 850 (109C) - D44186 AND D44187 TRACK ROLLERS, D44187 TRACK ROLLER (SINGLE FLANGE) (04) - UNDERCARRIAGE

R24102

ROLLER

- track (Replaced D44187)

8-1шт.

1

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC)

2шт.

2

D44182

WASHER

- special

2шт.

3

D36409

BLOCK

- roller

2шт.

4

D31329

SHIM,.005" Thk

1шт.

5

D45502

BUSHING

- thrust

2шт.

6

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O"ring

2шт.

7

D35267

SEAL

- face

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - seal, split

1шт.

D36826

SEAL KIT

KIT - repair

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

11

D44321

ROLLER BEARING,1.625" ID x 1.1875"

CONE - bearing

2шт.

12

D44322

BEARING CUP,3.375" OD x 0.9375"

CUP - bearing

2шт.

13

D36402

FLANGE

HUB - roller

1шт.

14

221-841

PLUG

- pipe, hex. socket head (1/4" NPT)

1шт.

15

D44183

SPACER

- bearing

1шт.

16

D44184

SHAFT

- roller

1шт.

D44186

ROLLER

- track, double flange

4шт.

17

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC), D44186 track roller double flange

2шт.

18

D44182

WASHER

- special, D44186 track roller double flange

2шт.

19

D36409

BLOCK

- D44186 track roller double flange

2шт.

20

D31329

SHIM,.005" Thk

D44186 Track roller (Double flange) .005" Thk

1шт.

21

D45502

BUSHING

- thrust, D44186 track roller double flange

2шт.

22

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O"ring, D44186 track roller double flange

2шт.

23

D35267

SEAL

- face, D44186 track roller double flange

2шт.

24

NSS

NOT SOLD SEPARAT

BODY - seal, split, D44186 track roller double flange

1шт.

D36826

SEAL KIT

KIT - repair, D44186 track roller double flange

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - rubber, D44186 track roller double flange

2шт.

26

NSS

NOT SOLD SEPARAT

RETAINER - plastic, D44186 track roller double flange

1шт.

27

D44321

ROLLER BEARING,1.625" ID x 1.1875"

CONE - bearing, D44186 track roller double flange

2шт.

28

D44322

BEARING CUP,3.375" OD x 0.9375"

CUP - bearing, D44186 track roller double flange

2шт.

29

D36465

HUB

- roller, double flange, D44186 track

1шт.

30

221-841

PLUG

- pipe, hex. socket head (1/4" NPT), D44186 track roller double flange

1шт.

31

D44183

SPACER

- bearing, D44186 track roller double flange

1шт.

32

D44184

SHAFT

- D44186 track roller double flange

1шт.
