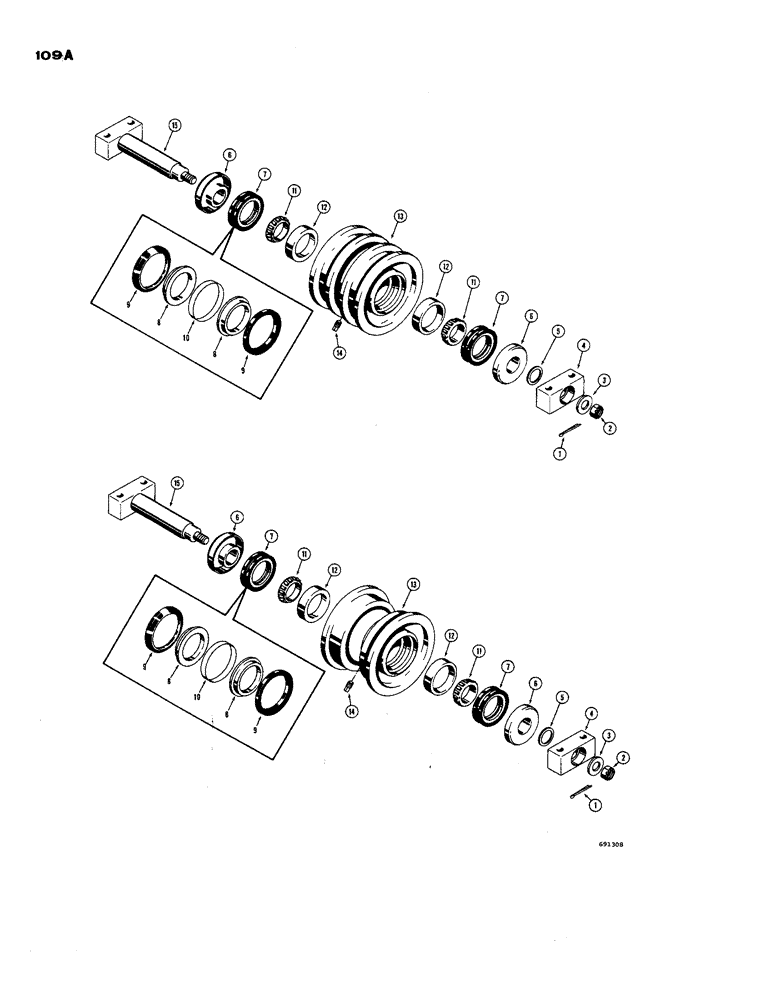

Запчасти Case 850 (109A) - D36466 & D36356 TRACK ROLLER, (USED BEFORE TRAC. S/N 7073117) D36466 TRACK ROLLER (DOUBLE FLANGE) (04) - UNDERCARRIAGE

D36466

ROLLER - track, double flange (When stock is exhausted, order D44186 roller for service) Parts list Figure 109C

4шт.

1

132-51

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

2

25-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex., slotted (3/4" - 16 NF)

1шт.

3

D31328

WASHER

- special

1шт.

4

D36409

BLOCK

- roller

1шт.

5

D31329

SHIM,.005" Thk

1шт.

6

D36043

BUSHING

- thrust (When stock is exhausted, order D45502 bushing and D27878 seal for service)

2шт.

7

D35267

SEAL

- face

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - seal, split

1шт.

D36826

SEAL KIT

KIT - repair

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

11

D44321

ROLLER BEARING,1.625" ID x 1.1875"

CONE - bearing

2шт.

12

D44322

BEARING CUP,3.375" OD x 0.9375"

CUP - bearing

2шт.

13

D36465

HUB

- roller, double flange

1шт.

14

221-841

PLUG

- pipe, hex socket head (1/4" NPT)

1шт.

15

D36406

SHAFT

BLOCK AND SHAFT - roller (When stock is exhausted, order 1 - D44182 washers and 2 - 131-357 nuts)

1шт.

D36356

ROLLER - track, single flange (When stock is exhausted, order D44187 roller for service parts list Figure 109C)

8-1шт.

1

132-51

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), , D36356 track roller single flange 1/8" x 1 3/8"

1шт.

2

25-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex., slotted (3/4" - 16 NF), D36356 track roller single flange

1шт.

3

D31328

WASHER

- special, D36356 track roller single flange

1шт.

4

D36409

BLOCK

- D36356 track roller single flange

1шт.

5

D31329

SHIM,.005" Thk

D36356 Track roller (Single flange) .005" Thk

1шт.

6

D36043

BUSHING

- thrust (When stock is exhausted, order D45502 bushing and D27878 seal for service), D36356 track roller single flange

2шт.

7

D35267

SEAL

- face, D36356 track roller single flange

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - seal, split, D36356 track roller single flange

1шт.

D36826

SEAL KIT

KIT - repair, D36356 track roller single flange

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rubber, D36356 track roller single flange

2шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - plastic, D36356 track roller single flange

1шт.

11

D44321

ROLLER BEARING,1.625" ID x 1.1875"

CONE - bearing, D36356 track roller single flange

2шт.

12

D44322

BEARING CUP,3.375" OD x 0.9375"

CUP - bearing, D36356 track roller single flange

2шт.

13

D36402

FLANGE

HUB - track roller, single flange, D36356

1шт.

14

221-841

PLUG

- pipe, hex. socket head (1/4" NPT), D36356 track roller single flange

1шт.

15

D36406

SHAFT

BLOCK AND SHAFT - roller (When stock is exhausted, order 1 - D44184 shaft, 1 - D36409 block, 1 - D44183 spacer, 2 - D44182 washers and 2 - 131-357 nuts), D36356 track roller single flange

1шт.
