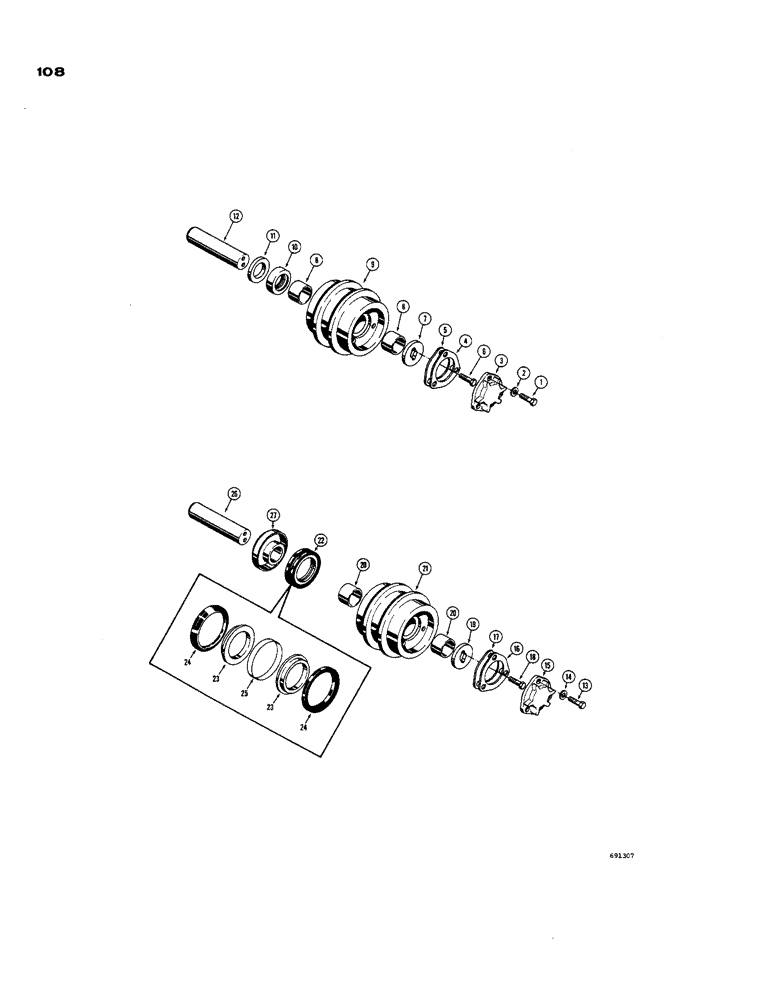

Запчасти Case 850 (108) - TRACK CARRIER ROLLER, D36354 NON-FACE SEALED CARRIER ROLLER (04) - UNDERCARRIAGE

D36354

ROLLER

- track carrier, non-face sealed (When stock is exhausted, use D48684 roller for service)

2-4шт.

1

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

2

D35288

WASHER

- copper

1шт.

3

D30381

COVER

- roller

1шт.

4

D30384

SHIM,.010" Thk

(Brown) .010" Thk

1шт.

5

D30383

SHIM,.005" Thk

(Blue) .005" Thk

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

D30382

WASHER

- thrust

1шт.

8

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split

2шт.

9

D36979

HUB

- roller (When stock is exhausted, use D48936 kit)

1шт.

10

D36394

SEAL

- oil

1шт.

11

D36395

GUARD

SHIELD - seal

1шт.

12

D49100

SHAFT

- roller

1шт.

D48684

ROLLER

- track carrier, face sealed

2-4шт.

13

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

D48684 face sealed carrier roller Hex, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

14

D35288

WASHER

- copper, D48684 face sealed carrier roller

1шт.

15

D30381

COVER

- D48684 face sealed carrier roller

1шт.

16

D30384

SHIM,.010" Thk

(Brown), D48684 Face sealed carrier roller .010" Thk

1шт.

17

D30383

SHIM,.005" Thk

(Blue), D48684 Face sealed carrier roller .005" Thk

1шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

D48684 face sealed carrier roller Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

19

D30382

WASHER

- thrust, D48684 face sealed carrier roller

1шт.

20

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split, D48684 face sealed carrier roller

2шт.

Part of Kit P/N D48936

1шт.

21

D48685

COVER

HUB - D48684 face sealed carrier roller

1шт.

Part of Kit P/N D48936

1шт.

22

D35267

SEAL

- D48684 face sealed carrier roller

1шт.

Part of Kit P/N D48936

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - seal, split, D48684 face sealed carrier roller

1шт.

D36826

SEAL KIT

KIT - repair, D48684 face sealed carrier roller

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - rubber, D48684 face sealed carrier roller

2шт.

25

NSS

NOT SOLD SEPARAT

RETAINER - plastic, D48684 face sealed carrier roller

1шт.

26

D49100

SHAFT

- D48684 face sealed carrier roller

1шт.

27

D35265

COLLAR

BUSHING - thrust, D48684 face sealed carrier roller

1шт.

Part of Kit P/N D48936

1шт.

D48936

HUB

KIT Includes: Refs. 20, 21, 22 and 27, D48684 face sealed carrier roller

1шт.
