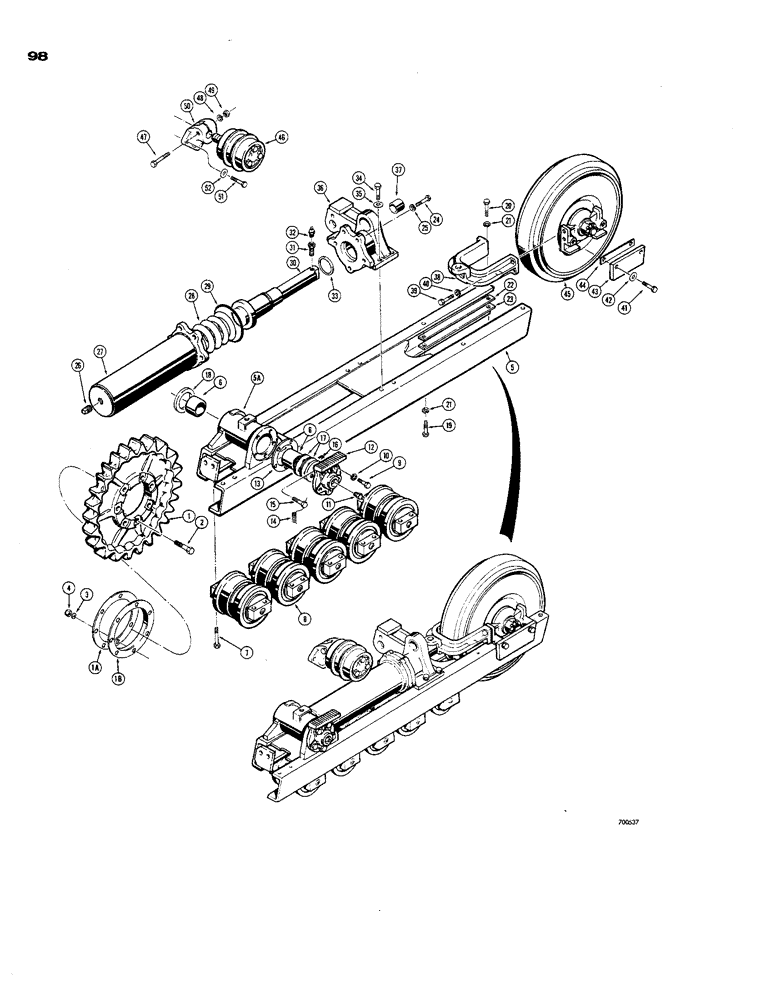

Запчасти Case 850 (098) - TRACK FRAME AND RECOIL SYSTEM - 5 ROLLER (04) - UNDERCARRIAGE

1

D40985

SPARE PART SPROCKET - drive (When stock is exhausted, order D46923 sprocket for service)

2шт.

D46923

DRIVE SPROCKET

2шт.

1a

D39530

SHIM,.03125" Thk

Sprocket, alignment

1шт.

1b

D45344

GUARD

Seal

2шт.

2

70119

BOLT,Hex, 3/4" - 16 x 2.75", Gr 5

Special

14шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

14шт.

4

232-46112

LOCK NUT,3/4"-16, GC

14шт.

5

R24111

FRAME

Track, RH (All models except Power Angle-Tilt Dozers)

1шт.

5

R24115

FRAME

Track, RH (Power Angle-Tilt Dozer only)

1шт.

R5007

BLOCK

KIT - block assembly, R24111 and R24115 frame

1шт.

5a

NSS

NOT SOLD SEPARAT

BLOCK - pivot, RH

1шт.

6

D36379

BUSHING,76.33mm ID x 82.58mm OD x 76.2mm L

BUSHING - block

2шт.

5

R24110

FRAME

Track, LH (All models except Power Angle-Tilt Dozers) Not illustrated

1шт.

5

R24114

FRAME

Track, LH (Power Angle-Tilt Dozers only) Not illustrated

1шт.

R5008

BLOCK

KIT - block assembly, R24110 and R24114 frame

1шт.

5a

NSS

NOT SOLD SEPARAT

BLOCK - pivot, LH

1шт.

6

D36379

BUSHING,76.33mm ID x 82.58mm OD x 76.2mm L

BUSHING - block

2шт.

7

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

40шт.

8

REF

INSTRUCTION

ROLLER - track, single flange (See Figure 109A and 109C for proper rollers)

10шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

10шт.

10

92-8

LOCK WASHER,1/2"

10шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight (NPT)

2шт.

12

D44787

PLATE

SPARE PART COVER - pivot shaft

2шт.

13

D41288

GASKET

SHIM - cover (.005" thick)

8шт.

14

R13538

ELECTRICAL WIRE

WIRE Tie

2шт.

15

R13420

BOLT

Special

6шт.

16

D44185

PLATE

Lock, at pivot shaft

2шт.

17

R13087

SHIM,.031" Thk

Plate

1шт.

18

D41447

SEAL

Oil, pivot block housing

2шт.

19

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

20

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

21

92-10

LOCK WASHER,5/8"

8шт.

22

D35290

STRIP

SHIM - wear plate (.0149" thick)

1шт.

23

D35276

PLATE

Wear, front idler wheel

4шт.

24

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

10шт.

25

92-10

LOCK WASHER,5/8"

10шт.

26

221-15

PLUG,Sq Hd, 3/4"-14

Pipe (NPT)

2шт.

27

D39915

HOUSING

Recoil spring

2шт.

28

D39925

SPRING

Recoil

2шт.

29

A40052

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

SEAL

2шт.

30

D39930

ADJUSTER

TRACK - hydraulics (Parts list Figure 110)

2шт.

31

D35287

CHECK VALVE,5/8" - 18

CHECK BALL ASSEMBLY - track adjuster

2шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight (NPT)

2шт.

33

D36362

RING

Quad

2шт.

34

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

35

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

8шт.

36

D40982

HOUSING

RECOIL - Front, RH

1шт.

D40981

HOUSING

RECOIL - Front, LH (Not illustrated)

1шт.

37

D35850

BUSHING

Housing

1шт.

38

D36359

YOKE

UNIVERSAL JOINT YOKE Front idler wheel

2шт.

39

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

40

92-8

LOCK WASHER,1/2"

8шт.

41

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

42

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

8шт.

43

D39929

SHIM

PLATE - guide, front idler wheel

4шт.

44

D39928

SHIM,.0478" Thk

Plate

1шт.

45

REF

INSTRUCTION

IDLER WHEEL - RH & LH (See Figure 110 for idlers)

2шт.

46

REF

INSTRUCTION

ROLLER - track carrier (See Figure 108 for proper roller)

2шт.

47

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

48

92-8

LOCK WASHER,1/2"

2шт.

49

25-108

NUT,1/2"-13, G5

2шт.

50

D45485

BRACKET

Track carrier roller

2шт.

51

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

52

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

4шт.
