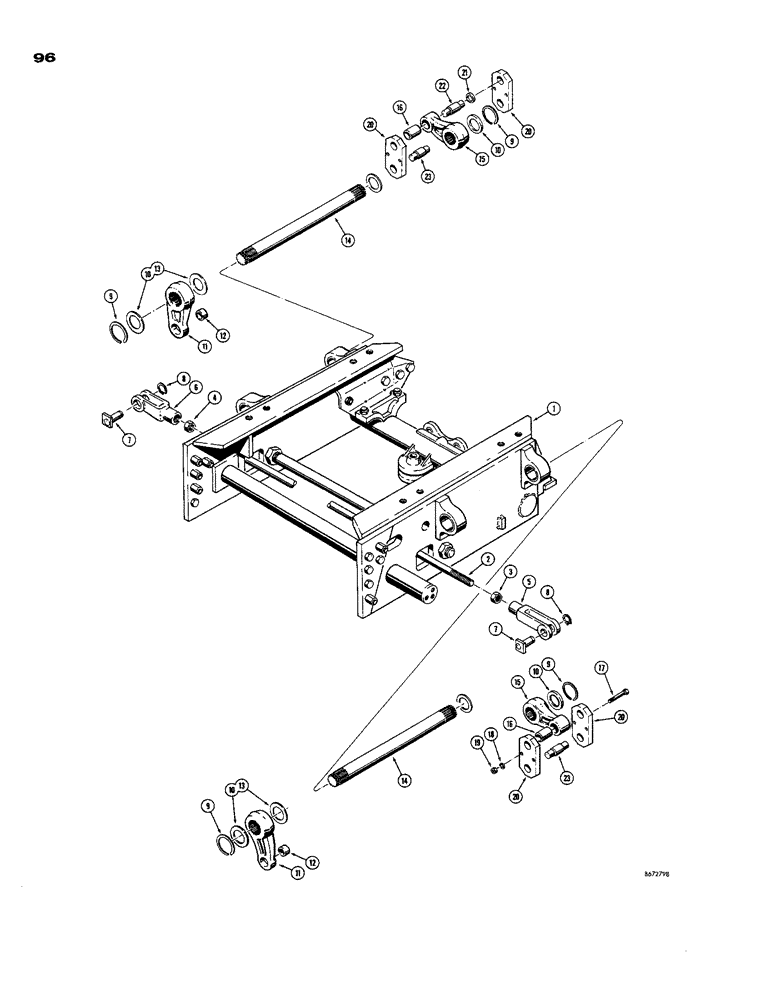

Запчасти Case 850 (096) - TORSION BAR AND RELATED PARTS (04) - UNDERCARRIAGE

1

D39983

MAIN FRAME ASSEMBLY - crawler (See fIGURe 94 for parts list and mounting hardware)

1шт.

2

D43397

ROD

- equalizer

1шт.

3

25-1120

NUT,1 1/4"-12, G5

- hex. (1-1/4" - 12 NF) R.H. thread

1шт.

4

129-332

SPECIAL NUT,1 1/4"-12, G5, LH

1шт.

5

D29932

X

YOKE - equalizer, R.H. (When stock is exhausted, order D42949 yoke for service)

1шт.

D42949

YOKE

- equalizer, R.H.

1шт.

5a

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- yoke (D42949 yoke only) Not shown

2шт.

6

D29933

X

YOKE - equalizer, L.H. (When stock is exhausted, order D42948 yoke for service)

1шт.

D42948

YOKE

- equalizer, L.H.

1шт.

6a

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- yoke (D42948 yoke only) Not shown

2шт.

7

D36998

PIN ASSY.

PIN - yoke, used with D29932 and D29933 yokes only

2шт.

D42944

PIN

- yoke, used with D42948 and D42949 yokes only (Not shown)

2шт.

8

D25279

SNAP RING,M35, Int

RING - pin retaining

2-4шт.

9

R18674

RING

- lever retaining

4шт.

10

74298

WASHER

SPACER - equalizer lever (7/64" thick)

1шт.

11

D34029

LEVER

- equalizer, rear

2шт.

12

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- lever

1шт.

13

R18559

SHIM,.062" Thk

Equalizer lever .062" Thk

1шт.

14

R15667

X

BAR - torsion (When stock is exhausted, order D42883 torsion bar for service)

2шт.

D42883

BAR

- torsion

2шт.

15

D39628

LEVER

- equalizer, front

2шт.

16

D39629

BUSHING

- lever

1шт.

17

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

20

D39633

LINK

- equalizer lever to track frame

4шт.

21

CASD39632

WASHER

SPACER - link and front equalizer lever

4шт.

22

D39631

PIN

- front equalizer lever

2шт.

23

D35848

PIN

- link to track frame

2шт.
