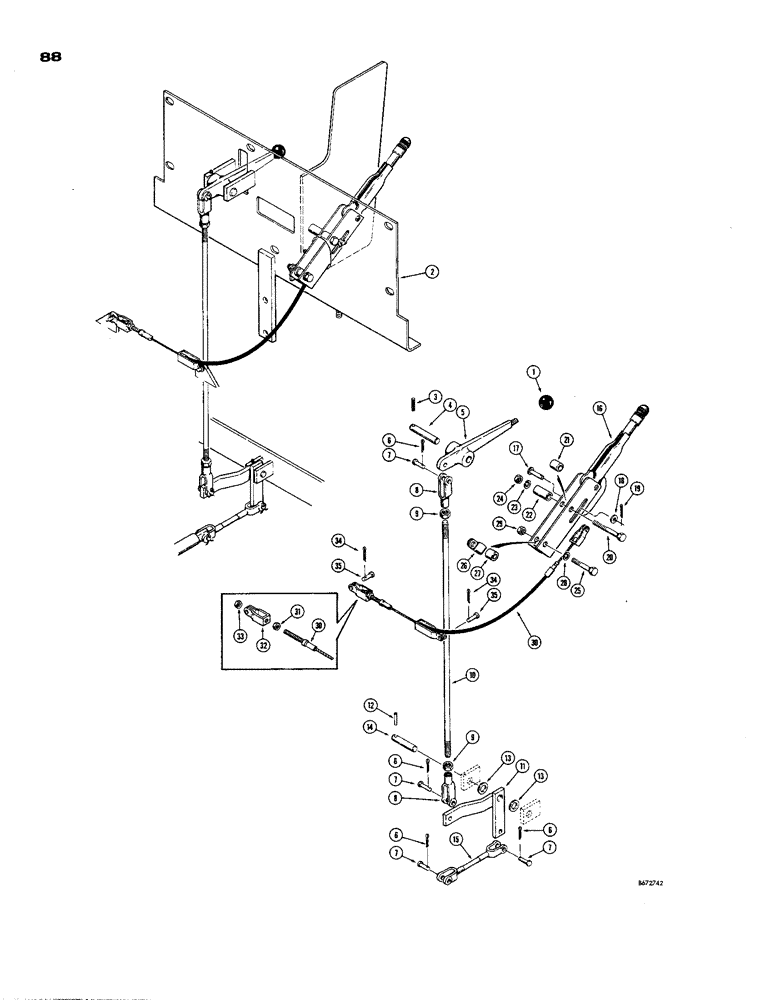

Запчасти Case 850 (088) - DUAL RANGE LINKAGE AND PARKING BRAKE (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
70213
KNOB
- dual range control lever
1шт.
2
D39670
PLATE - heel
1шт.
3
138-98
LOCK PIN,3/16" x 1 1/4", Slotted
PIN, 3/16" x 1 1/4", Slotted
1шт.
4
D29768
SHAFT
- pivot, dual range control lever
1шт.
5
R13377
LEVER
- control, dual range
1шт.
6
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
4шт.
7
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, , Rod end 3/8" x 1.060"
4шт.
8
D35773
YOKE
- rod end
2шт.
9
25-116
NUT,Hex, 3/8"-24, G5
- hex. (3/8" - 24 NF)
2шт.
10
D41022
ROD
- control, dual range
1шт.
11
D30316
LEVER - dual range
1шт.
12
138-98
LOCK PIN,3/16" x 1 1/4", Slotted
PIN, 3/16" x 1 1/4", Slotted
1шт.
13
195-41
WASHER,5/8"
- plain () 5/8"
2шт.
14
D30320
SHAFT - dual range lever
1шт.
15
D30319
ROD
- control, dual range
1шт.
D40687
LEVER
BRAKE LEVER - parking
1шт.
16
NSS
NOT SOLD SEPARAT
LEVER - parking brake
1шт.
17
D42458
PIN
- clevis
1шт.
18
95-5
WASHER,3/8" x 7/8" x .083"
- standard wrot (5/16")
1шт.
19
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
20
13-552
BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5
HHCS - 5/16" - 18 NC x 3-1/4"
1шт.
21
D40685
SPACER
- lever, inner
1шт.
22
F18607
SPACER
- lever, outer
1шт.
23
92-5
LOCK WASHER,5/16"
1шт.
24
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16" - 18 NC)
1шт.
25
13-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
HHCS - 5/16" - 18 NC x 1-3/4"
1шт.
26
D40684
CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type
- cable guide
1шт.
27
D8169
SPACER - clamp
1шт.
Another spacer used is P/N D30863.
1шт.
28
92-5
LOCK WASHER,5/16"
1шт.
29
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16" - 18 NC)
1шт.
D41531
CABLE
ASSEMBLY - brake
1шт.
30
NSS
NOT SOLD SEPARAT
CABLE - brake
1шт.
31
129-122
NUT,5/16"-24, G5
1шт.
32
D43802
CLEVIS
- cable
1шт.
33
86637933
JAM NUT,5/16" - 24, Gr 5
1шт.
34
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
35
141-3
CLEVIS PIN,5/16" x .940"
PIN, CLEVIS, , Cable yoke 5/16" x .940"
2шт.
