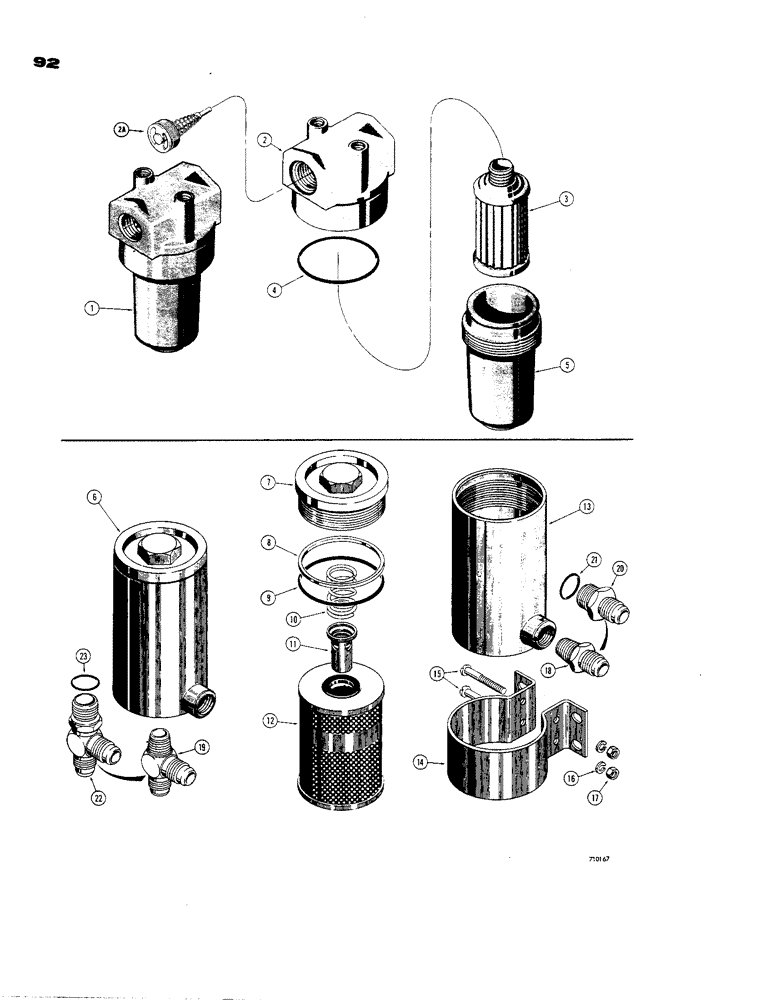

Запчасти Case 850 (092) - TRANSMISSION OIL FILTERS, D43639 TRANSMISSION OIL FILTER ( SUCTION LINE ) (03) - TRANSMISSION

1

D43639

FILTER, ENGINE OIL

FILTER - transmission oil

1шт.

D43798

HEAD

ASSEMBLY - filter

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2a

D49376

VALVE

- oil, bypass (3 P.S.I.)

1шт.

D32211

FILTER, ELEMENT

KIT - filter element

1шт.

3

NSS

NOT SOLD SEPARAT

SCREEN - filter

1шт.

4

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

5

D43799

HOUSING

- filter

1шт.

6

D35153

FILTER

- transmission oil (Pressure line) When stock is exhausted, order one D45336 filter, one 218-5063 connector and one D45618 tee for service, used before tractor serial no. 7074062

1шт.

7

D31214

CAP

- D35153 transmission oil filter (pressure line), used before tractor serial no. 7074062

1шт.

8

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

D35153 Transmission oil filter (Pressure line), Used before tractor S/N 7074062

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, D35153 transmission oil filter (pressure line), used before tractor serial no. 7074062

1шт.

10

D31212

SPRING

- retaining, D35153 transmission oil filter (pressure line), used before tractor serial no. 7074062

1шт.

11

D37207

VALVE

- relief, D35153 transmission oil filter (pressure line), used before tractor serial no. 7074062

1шт.

12

D45378

ELEMENT

- D35153 transmission oil filter (pressure line), used before tractor serial no. 7074062

1шт.

13

D35143

BODY

- D35153 transmission oil filter (pressure line), used before tractor serial no. 7074062

1шт.

14

D31217

BRACKET

- D35153 transmission oil filter (pressure line), used before tractor serial no. 7074062

1шт.

15

75-544

RHMS - 5/16" - 18 NC x 2-3/4", D35153 transmission oil filter (pressure line), used before tractor serial no. 7074062

2шт.

16

92-5

LOCK WASHER,5/16"

D35153 transmission oil filter (pressure line), used before tractor serial no. 7074062 5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), D35153 transmission oil filter (pressure line), used before tractor serial no. 7074062

2шт.

18

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight (Used with D35153 filter only), D35153 transmission oil filter (pressure line), used before tractor serial no. 7074062

1шт.

19

D35964

TEE - special (Used with D35153 filter only), D35153 transmission oil filter (pressure line), used before tractor serial no. 7074062

1шт.

6

NLS

NO LONGER SERVICED

FILTER - transmission oil (Pressure line), used on tractor serial no. 7074062 & after- as production item prior 7074062 as service replacement

1шт.

7

D31214

CAP

- D45336 trans. oil filter (pressure line)used on tractor serial no. 7074062 & after- as production item prior 7074062 as service replacement

1шт.

8

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

D45336 Trans. oil filter (Pressure line) Used on tractor S/N 7074062 & after- as production item prior 7074062 as service replacement

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, D45336 trans. oil filter (pressure line)used on tractor serial no. 7074062 & after- as production item prior 7074062 as service replacement

1шт.

10

D31212

SPRING

- retaining, D45336 trans. oil filter (pressure line)used on tractor serial no. 7074062 & after- as production item prior 7074062 as service replacement

1шт.

11

D37207

VALVE

- relief, D45336 trans. oil filter (pressure line)used on tractor serial no. 7074062 & after- as production item prior 7074062 as service replacement

1шт.

12

D45378

ELEMENT

- filter, D45336 trans. oil filter (pressure line)used on tractor serial no. 7074062 & after- as production item prior 7074062 as service replacement

1шт.

13

D45333

BODY

- D45336 trans. oil filter (pressure line)used on tractor serial no. 7074062 & after- as production item prior 7074062 as service replacement

1шт.

14

D47871

BRACKET

- D45336 trans. oil filter (pressure line)used on tractor serial no. 7074062 & after- as production item prior 7074062 as service replacement

1шт.

15

75-544

RHMS - 5/16" - 18 NC x 2-3/4", D45336 trans. oil filter (pressure line)used on tractor serial no. 7074062 & after- as production item prior 7074062 as service replacement

2шт.

16

92-5

LOCK WASHER,5/16"

D45336 trans. oil filter (pressure line)used on tractor serial no. 7074062 & after- as production item prior 7074062 as service replacement 5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), D45336 trans. oil filter (pressure line)used on tractor serial no. 7074062 & after- as production item prior 7074062 as service replacement

2шт.

20

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male (Used with D45336 filter only), D45336 trans. oil filter (pressure line)used on tractor serial no. 7074062 & after- as production item prior 7074062 as service replacement

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, D45336 trans. oil filter (pressure line)used on tractor serial no. 7074062 & after- as production item prior 7074062 as service replacement

1шт.

22

218-5294

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

- male (Used with D45336 filter only), D45336 trans. oil filter (pressure line)used on tractor serial no. 7074062 & after- as production item prior 7074062 as service replacement

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, D45336 trans. oil filter (pressure line)used on tractor serial no. 7074062 & after- as production item prior 7074062 as service replacement

1шт.
