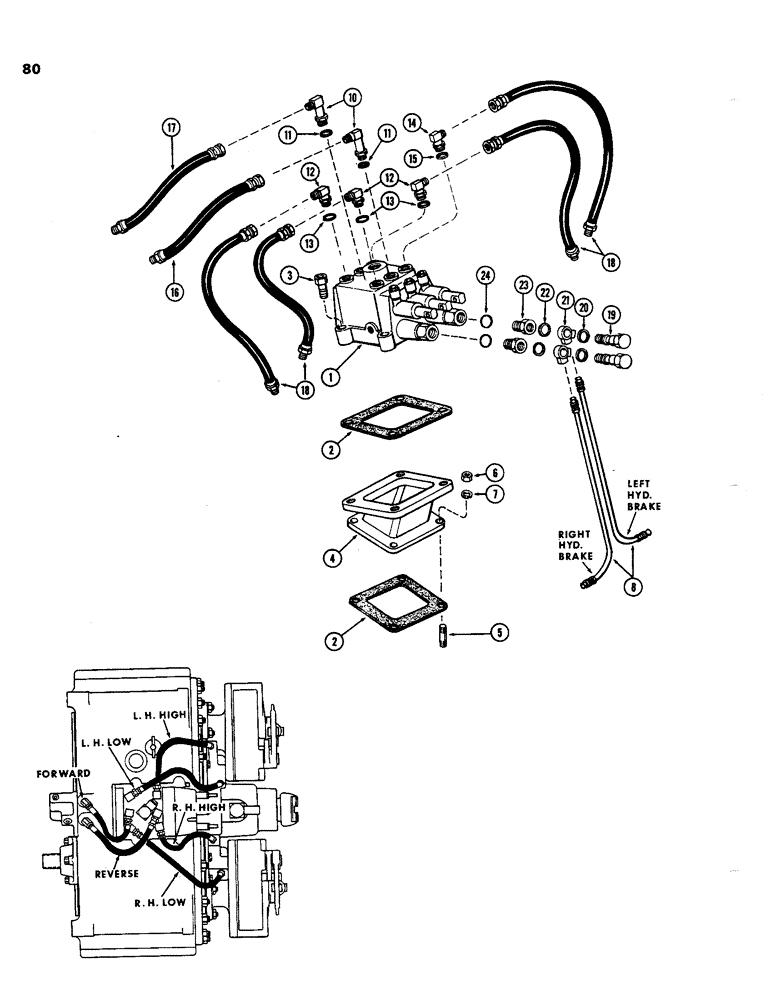

Запчасти Case 850 (080) - TRANSMISSION HYDRAULICS (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
A50388
NO LONGER SERVICED
TRANSMISSION & FINAL DRIVE ASSY. - complete (incl. all items Figures 68 thru 82)
1шт.
1
R20724
VALVE
ASSY. - control (Repairs, Figure 82)
1шт.
2
A50113
GASKET
- mountng, valve & base
2шт.
3
166-49
12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8
BOLT - 3/8 x 2" N.C. pt. Ferry hd.
4шт.
4
A50114
BASE
- valve mounting
1шт.
5
A50019
NO LONGER SERVICED
STUD - mountng, valve base
4шт.
6
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
4шт.
7
92-6
LOCK WASHER,3/8"
4шт.
8
A50126
TUBE
- valve to L.H. & R.H. brake cylinders
2шт.
10
R20739
FITTING
ELBOW ASSY. - 90 deg. adjustable, long rear hose
2шт.
11
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, elbow seal
1шт.
12
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
ASSY. - 90 deg. adjustable, short front hose
4шт.
13
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, elbow seal
1шт.
14
R20894
FITTING
ELBOW ASSY. - 90 deg. adjustable, extra long
1шт.
15
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O"RING - elbow seal (3/4 x 1-1/8 x 3/32")
1шт.
16
A50294
HYDRAULIC HOSE,14.25"
- Valve to rear housing, LH 14.25"
1шт.
17
A50295
HYDRAULIC HOSE,6.35 mm ID x 419.00 mm, SAE100R1
6.35 mm ID x 419.00 mm, SAE 100R1 - Valve to rear housing, RH
1шт.
18
A50296
HYDRAULIC HOSE,6.35 mm ID x 495.30 mm, SAE100R1
6.35 mm ID x 495.30 mm, SAE 100R1 - Control valve to front inlet cover
4шт.
19
A12864
BOLT
- connection, brake tube
2шт.
20
51200242
SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk
- brake connection bolt, outer
2шт.
21
51200243
FITTING
- brake line hydraulic
2шт.
22
NLS
NO LONGER SERVICED
- connection bolt, inner
2шт.
23
72125
ADAPTER
- brake tube fitting bolt
2шт.
24
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O"RING - adapter sealing (41/64 x 51/64 x 5/64")
2шт.
Выбрано товаров: 24
