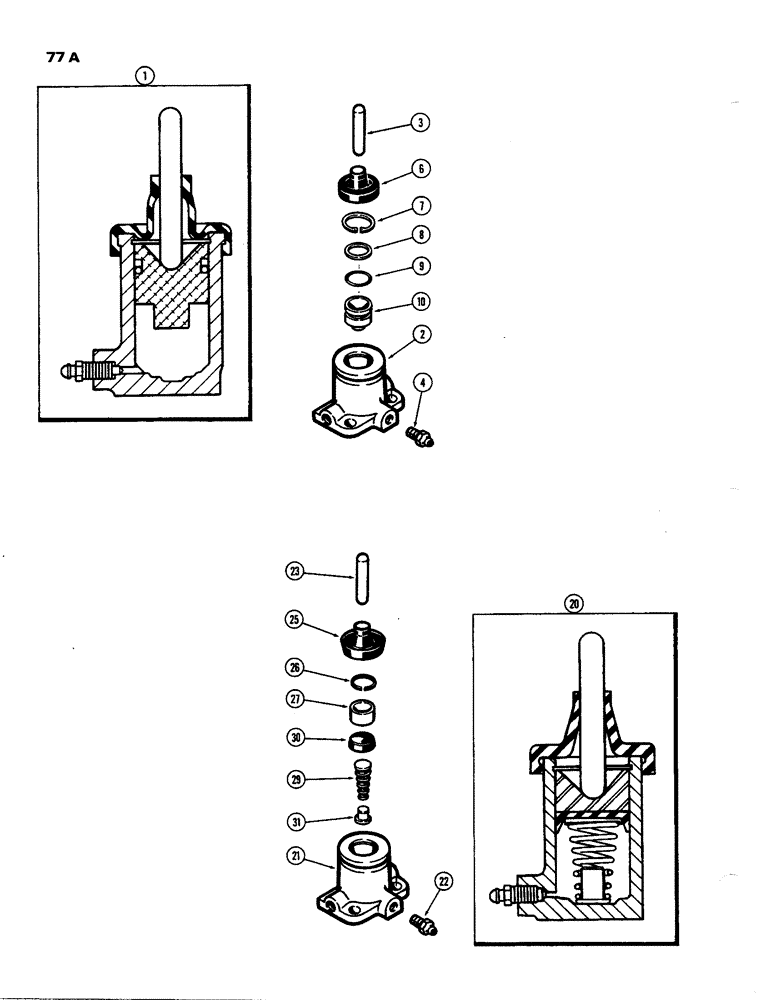

Запчасти Case 850 (077A) - HYDRAULIC BRAKE CYLINDER, 1ST USED TRANS. SN2681293 (03) - TRANSMISSION

1

A50557

CYLINDER

ASSY. - brake (green color identification)

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order A50557)

1шт.

3

A41489

ROD

- push

1шт.

4

A41491

BLEEDER,1/4" - 28 x 23.37mm

- bleeder

1шт.

A42875

SEAL

KIT - seal, brake cylinder (Not Illust.)

1шт.

6

A41490

BOOT

- dust

1шт.

7

NSS

NOT SOLD SEPARAT

"O"RING - cylinder piston (Order A42875)

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup, cyl. piston (teflon) (Order A42875)

1шт.

9

A30975

SNAP RING,1.188", Int, #118

cylinder piston 1.188", Int, #118

1шт.

10

A42874

PISTON

- cylinder

1шт.

20

A50485

SCREW

CYLINDER ASSY. - brake (yellow color identification), used prior to trans. serial no. 2681293

2шт.

21

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order A50557), used prior to trans. serial no. 2681293

1шт.

22

A41489

ROD

- push, used prior to trans. serial no. 2681293

1шт.

23

A41491

BLEEDER,1/4" - 28 x 23.37mm

- bleeder, used prior to trans. serial no. 2681293

1шт.

A41506

CYLINDER

KIT - seal, brake cylinder (Not Illust.), used prior to trans. serial no. 2681293

1шт.

25

A41590

COIL

BOOT - dust, used prior to trans. serial no. 2681293

1шт.

26

NSS

NOT SOLD SEPARAT

PISTON - cylinder (Order A41506)

1шт.

27

A42243

SPRING ASSY. - pressure (incl. cup), used prior to trans. serial no. 2681293

1шт.

28

NSS

NOT SOLD SEPARAT

CUP - retainer (Order A42243 or A41506), used prior to trans. serial no. 2681293

1шт.

29

NSS

NOT SOLD SEPARAT

STOP - spring (Order A41506), used prior to trans. serial no. 2681293

1шт.
