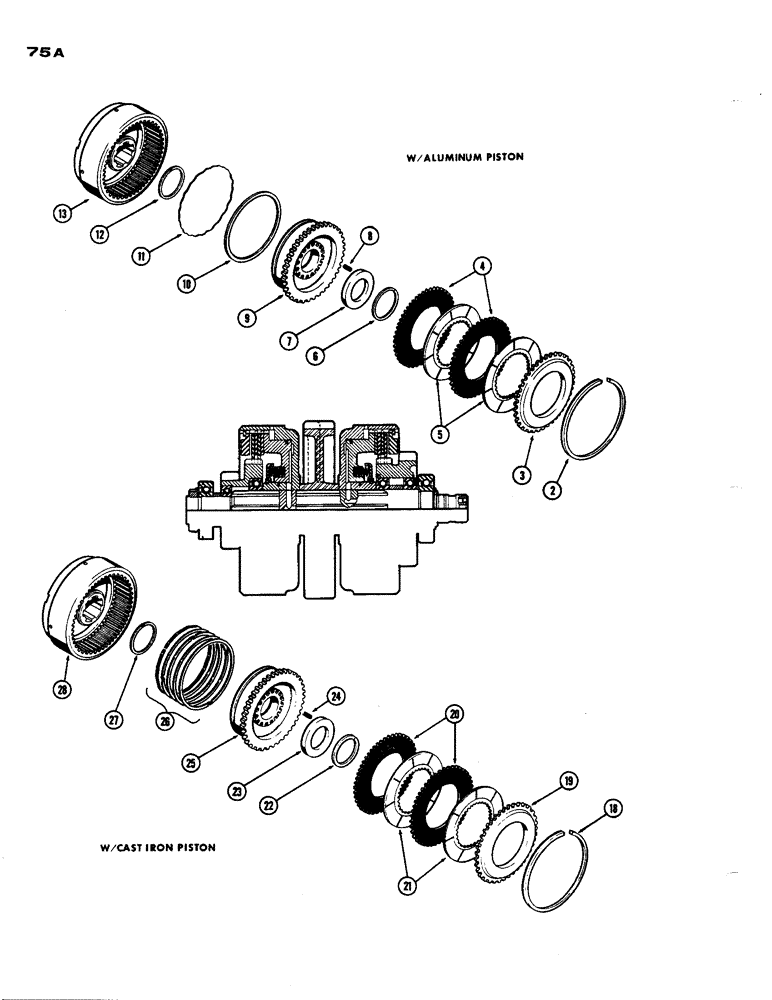

Запчасти Case 850 (075A) - HIGH AND LOW SPEED, CLUTCH, W/ALUMINUM PISTON (03) - TRANSMISSION

A50412

CLUTCH

ASSY.

4шт.

2

A30785

SHIM

RING - snap, backing plate ret.

1шт.

3

A50030

PLATE

- backing, clutch

1шт.

4

A50029

PLATE

DISC - clutch (Sintered) (Internal teeth)

2шт.

5

A50028

PLATE

DISC - clutch (steel) (external teeth)

2шт.

6

A27233

RING

- snap, spring retainer

1шт.

7

R11016

RETAINER

- clutch spring

1шт.

8

R11015

SPRING

- clutch

18шт.

9

A50413

PISTON

- clutch (aluminum)

1шт.

10

A50414

SEALING RING

RING - sealng, clutch piston

1шт.

11

A50416

SPRING

EXPANDER - piston ring

1шт.

12

A50415

SEAL

RING - sealing, clutch drum hub

1шт.

13

A50288

DRUM

- clutch

1шт.

A50287

X

CLUTCH ASSY. (Order A50412), with cast iron piston

4шт.

18

30785

RING

- snap, back plate ret., with cast iron piston

1шт.

19

A50030

PLATE

- backing, clutch, with cast iron piston

1шт.

20

A50029

PLATE

DISC - clutch (sintered) (Internal teeth), with cast iron piston

2шт.

21

A50028

PLATE

DISC - clutch (steel) (external teeth), with cast iron piston

2шт.

22

A27233

RING

- snap, spring retainer, with cast iron piston

1шт.

23

R11016

RETAINER

- clutch spring, with cast iron piston

1шт.

24

R11015

SPRING

- clutch, with cast iron piston

18шт.

25

A50186

PISTON

- clutch (cast iron)

1шт.

26

A50027

RING

KIT - piston (Set of 4 rings & 1 expander), cast iron

1шт.

27

A50025

SEAL

"O"RING - piston sealing, with cast iron

1шт.

28

A50288

DRUM

- clutch, with cast iron piston

1шт.
