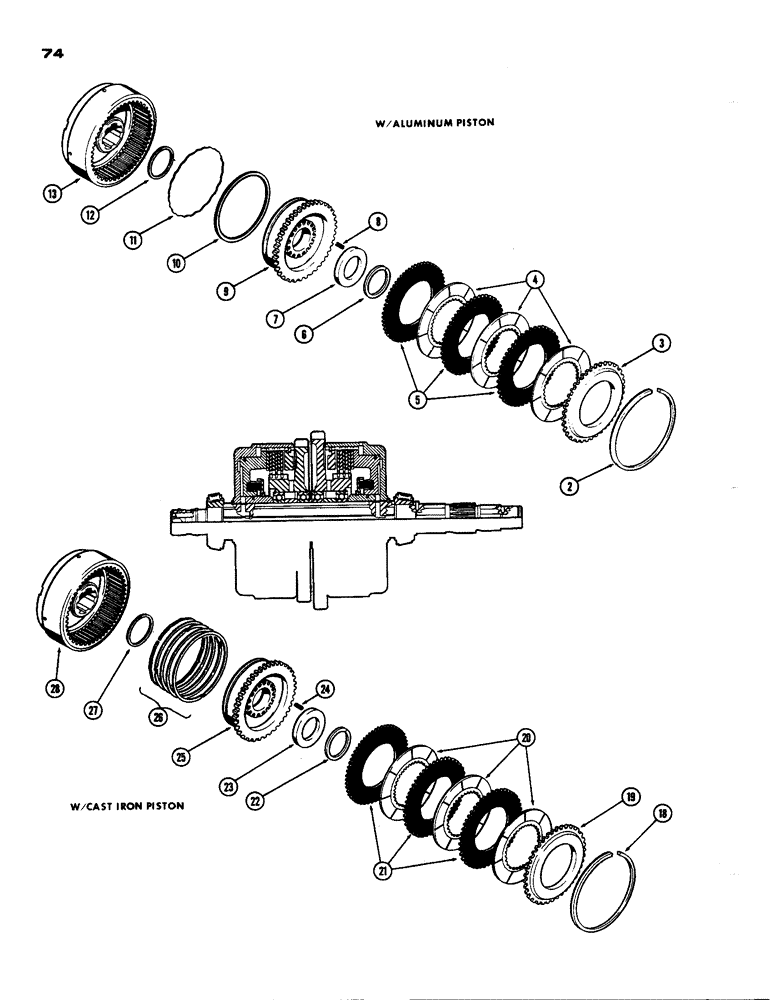

Запчасти Case 850 (074) - FORWARD AND REVERSE, CLUTCH, W/ALUMINUM PISTON (03) - TRANSMISSION

A50411

CLUTCH

ASSY. - (w/aluminum piston)

2шт.

2

30785

RING

- snap, backing plate ret.

1шт.

3

A50030

PLATE

- clutch backing

1шт.

4

A50029

PLATE

DISC - clutch (sintered) (internal teeth)

3шт.

5

A50028

PLATE

DISC - clutch (Steel) (External teeth)

3шт.

6

A27233

RING

- snap, spring retainer

1шт.

7

R11016

RETAINER

- clutch spring

1шт.

8

R11015

SPRING

- clutch

18шт.

9

A50413

PISTON

- clutch (Aluminum)

1шт.

10

A50414

SEALING RING

RING - sealing, piston

1шт.

11

A50416

SPRING

EXPANDER - piston ring

1шт.

12

A50415

SEAL

RING - sealing, drum hub

1шт.

13

A50290

DRUM

- clutch

1шт.

A50289

CLUTCH ASSY. (w/ cast iron piston) (Order A50411)

2шт.

18

30785

RING

- snap, backing plate ret., w/ cast iron piston

1шт.

19

A50030

PLATE

- clutch backing, with cast iron pistno

1шт.

20

A50029

PLATE

DISC - clutch (sintered) (internal teeth), with cast iron piston

3шт.

21

A50028

PLATE

DISC - clutch (steel) (external teeth), with cast iron piston

3шт.

22

A27233

RING

- snap, spring retainer, with cast iron piston

1шт.

23

R11016

RETAINER

- clutch spring, with cast iron piston

1шт.

24

R11015

SPRING

- clutch, with cast iron piston

18шт.

25

A50186

PISTON

- clutch (Cast iron)

1шт.

26

A50027

RING

KIT - piston (Set of 4 rings & 1 expander), cast iron

1шт.

27

A50025

SEAL

"O"RING - piston seal, cast iron

1шт.

28

A50290

DRUM

- clutch, with cast iron piston

1шт.
