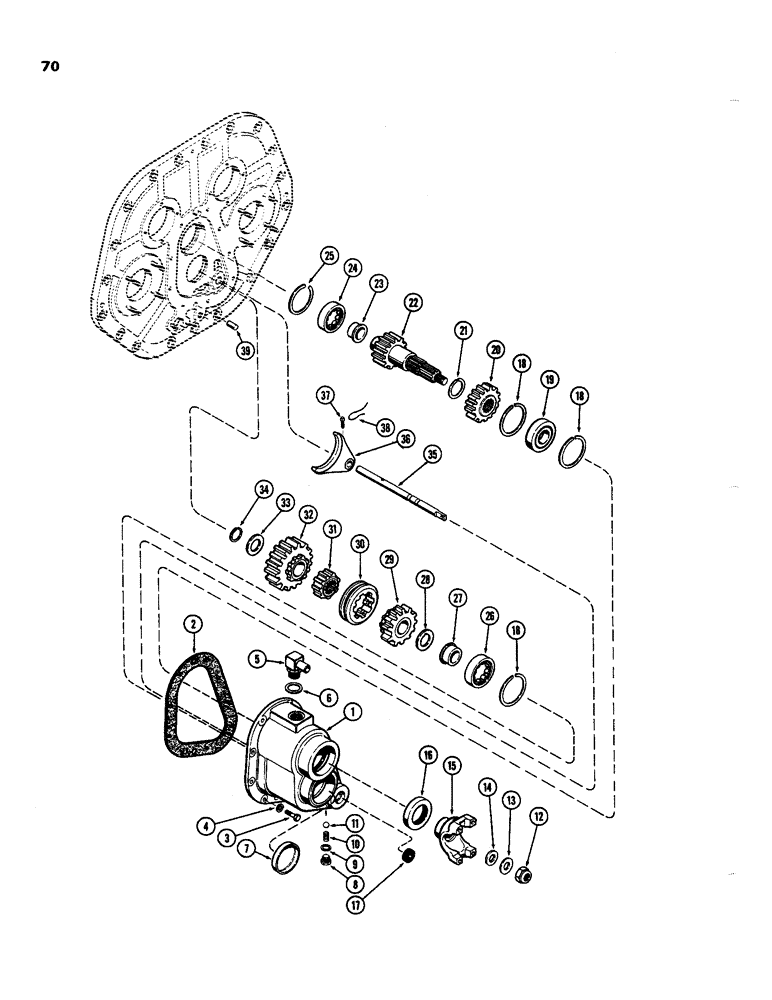

Запчасти Case 850 (070) - MECHANICAL RANGE SHIFT (03) - TRANSMISSION

A50388

NO LONGER SERVICED

TRANSMISSION & FINAL DRIVE ASSY. - complete (incl. all items Figure 68 thru 82)

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - two speed shift (Order A57372)

1шт.

2

A50269

GASKET

- shift housing

1шт.

3

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - cap, 3/8 x 1-1/4" N.C., 12 pt. ferry

9шт.

4

A22317

WASHER

- cap screw, copper

9шт.

5

R20916

FITTING

ELBOW - oil return, 90 deg.

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O"RING - elbow, 59/64 x 3/4 x 7/64"

1шт.

7

A50268

PLUG

- cap, shift housing

1шт.

8

A50994

SCREW - cap, range selector detent

1шт.

9

A50093

SEALING WASHER

WASHER - detent screw

1шт.

10

A50092

SPRING

- selector detent

1шт.

11

211-13

BALL,1/2" Dia

- detent, steel 1/2" Dia

1шт.

12

131-37

LOCK NUT,3/4"-16

NUT - lock, 3/4" N.F. hex.

1шт.

13

32601

WASHER

- flange retaining

1шт.

14

34395

SEALING WASHER

WASHER - flange seal

1шт.

15

A50090

FORK

FLANGE - universal shaft

1шт.

16

A50420

SEAL

- oil, range housing (Replaces A50252)

1шт.

17

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- oil, selector shaft (Replaces G13827)

1шт.

18

R13804

RING

- snap, bearing retainer

3шт.

19

A26537

BALL BEARING,34.99mm ID x 80mm OD x 21mm W

BEARING - ball, drive gear shaft front

1шт.

20

A50499

GEAR

- driver, input shaft

1шт.

21

R15364

SNAP RING,#152, 1.527", Ext

RING - snap, driver gear

1шт.

22

A50306

SHAFT

- range drive gear

1шт.

23

A50077

BEARING CONE,1.1811" ID x 0.748"

RING - inner, roller bearing

1шт.

24

A50255

BEARING, ROLLER, CYL,2.8359" OD x 0.748"

BEARING - roller, outer ring & roller

1шт.

25

A27417

RING

- snap, roller bearing retainer

1шт.

26

A50258

ROLLER BEARING,3.1510" OD x 0.8268"

BEARING ASSY. - roller, outer ring & rollers

1шт.

27

A50332

BEARING CONE,1.25" ID x 0.8268"

RING - inner, roller bearing

1шт.

28

A50333

WASHER

- thrust, range gear

1шт.

29

A50501

GEAR

- driven, front clutch shaft

1шт.

30

A50074

SLEEVE

- range selector

1шт.

31

A50073

X

COLLAR - range selector

1шт.

32

A50504

GEAR

- rear driven shift range

1шт.

33

A50071

WASHER

- thrust, rear driven gear

1шт.

34

A26946

RING

- snap, rear driven gear retainer

1шт.

35

A50079

SHAFT

- range selector

1шт.

36

A50080

SHAFT

FORK - range selector shaft

1шт.

37

A7044

SET SCREW,3/8" - 16 x 7/8"

- retaining, selector fork

1шт.

38

R10831

ELECTRICAL WIRE

WIRE - tie, selector fork screw

1шт.

39

A50017

AXLE PIN

PIN - dowel, range housing locating

2шт.
