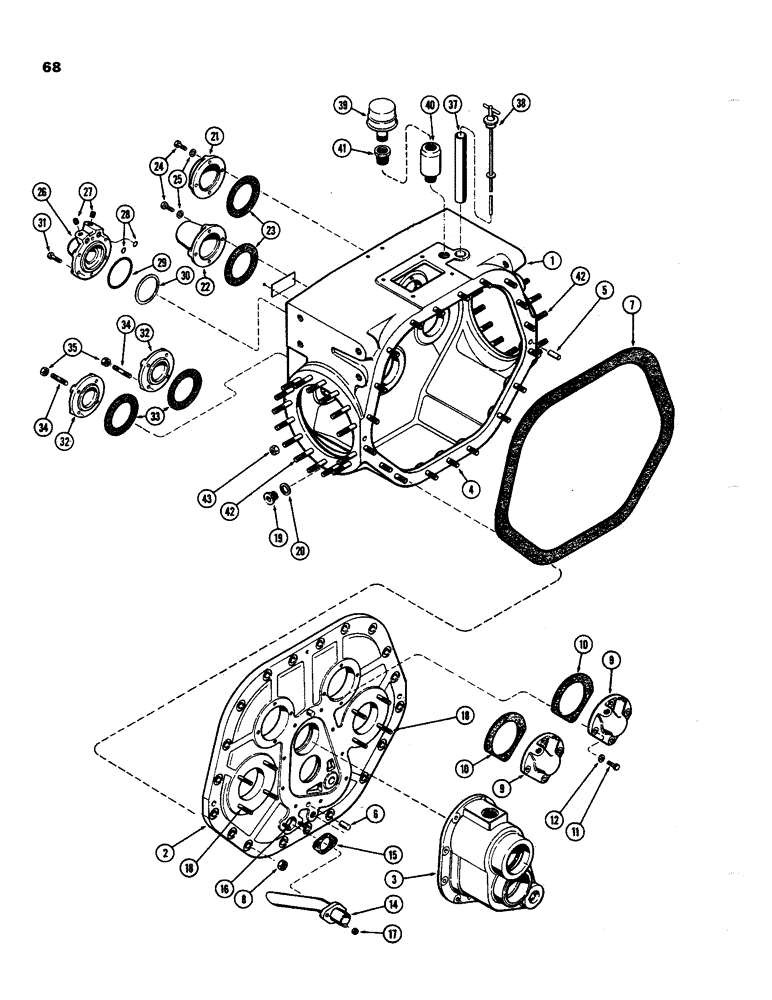

Запчасти Case 850 (068) - TRANSMISSION HOUSING AND COVERS (03) - TRANSMISSION

A50388

NO LONGER SERVICED

TRANSMISSION & FINAL DRIVE ASSY. - complete (incl. all items Figure 60 thru 82)

1шт.

1

A57372

HOUSING

ASSY. - transmission

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - front housing (Order A57372)

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - two speed shift (Order A57372)

1шт.

4

A50249

STUD

- cover, front, 9/16" N.C. x 2-3/8"

19шт.

5

A50247

DOWEL

PIN - dowel, cover locating, 1/2 x 1-1/4" drilled

2шт.

6

A50017

AXLE PIN

PIN - dowel, shift hsg., 1/2 x 1-1/4"

2шт.

7

A50246

GASKET

- front, Serial Range: cover-housing

1шт.

8

232-4119

LOCK NUT,9/16"-12, GC

NUT - lock, 9/16" N.C. hex.

19шт.

9

A50057

COVER

- oil inlet, front

2шт.

10

A50056

GASKET

- front inlet cover

2шт.

11

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

- 3/8 x 1-1/4" N.C. hex.

8шт.

12

A22317

WASHER

- mounting bolt, copper

8шт.

13

R20711

CONNECTOR, ELEC

1шт.

14

A50110

TUBE

SNORKEL - transmission oil suction

1шт.

15

A50109

GASKET

- snorkel tube

1шт.

16

A50362

STUD

- snorkel mounting, 3/8" N.C. x 1-3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

18

A50241

STUD

- brake plate mtg., 1/2" N.C. x 2-1/8"

8шт.

19

R14777

PLUG

- drain, transmission

1шт.

20

A58613

SEALING WASHER

WASHER - drain plug (nylon)

1шт.

21

A50060

COVER

- trans. L.H. rear high-low clutch

1шт.

22

A50059

COVER

- trans. R.H. rear high-low clutch

1шт.

23

A50058

GASKET

- rear L.H. & R.H. clutch covers

2шт.

24

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

8шт.

25

A22317

WASHER

- mtg. bolt, copper

8шт.

26

A50054

COVER

- trans. rear forward-reverse clutch

1шт.

27

221-1840

PLUG

- 1/8" P.T. hex. sckt. hd.

2шт.

28

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O"RING - rear cover bolt sealing

2шт.

29

A50055

SEALING RING

RING - cover sealing

1шт.

30

A50053

SHIM,.003" Thk

Rear, Forward-reverse cover .003" Thk

1шт.

30

40590

SHIM

- rear, forward-reverse cover (.005")

1шт.

30

40591

SHIM

- rear, forward-reverse cover (.010")

1шт.

31

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

32

A50271

COVER

- rear L.H. & R.H. pinion shaft

2шт.

33

A50348

SHIM,.003" Thk

Rear pinion shaft cover .003" Thk

1шт.

33

A50272

SHIM,.005" Thk

Rear pinion shaft cover .005" Thk

1шт.

33

A50347

PIN

- rear pinion shaft cover (.010")

1шт.

34

A50019

NO LONGER SERVICED

STUD - rear pinion cover & valve

12шт.

35

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

8шт.

37

A50018

TUBE

- oil level gauge

1шт.

38

A50225

DIPSTICK

- oil level gauge

1шт.

39

A27173

BREATHER

ASSY. - transmission

1шт.

40

A50116

BAFFLE

- breather

1шт.

41

221-58

BUSHING,Hex, 3/4" x 1/4" NPT

- reducer, 3/4 to 1/4"

1шт.

42

A50021

STUD

- L.H. & R.H. final drive, 1/2" N.C. x 3"

30шт.

43

131-194

LOCK NUT,1/2"-13, GC

NUT - lock, 1/2" N.C. hex.

30шт.
