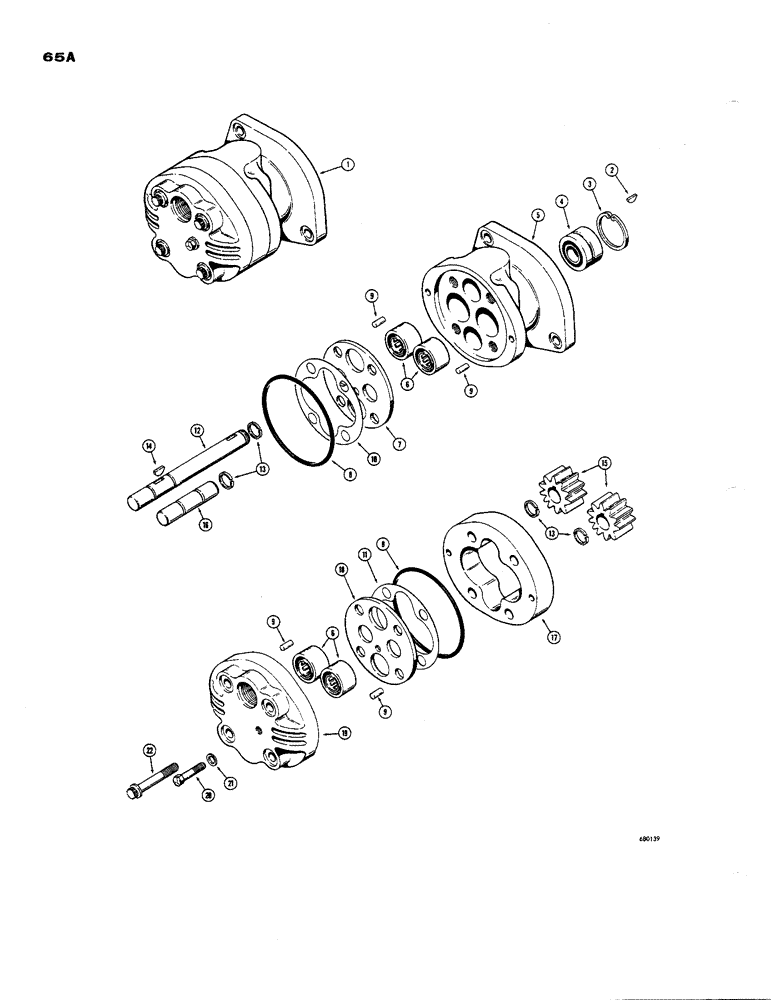

Запчасти Case 850 (065A) - D44094 TORQUE CONVERTER PUMP (03) - TRANSMISSION

1

D44094

PUMP

- hydraulic, torque converter charging (Hydreco #1500L5C1) 15.5 G.P.M. at 2400 R.P.M.

1шт.

2

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

1шт.

3

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

4

D32084

BEARING

- cover, front

1шт.

5

D44096

COVER

- front

1шт.

When ordering this item, the two bearings (17252) used with each, should be replaced.

1шт.

6

17252

BEARING

- drive and driven shafts

4шт.

7

D32078

PLATE

- wear, front cover

1шт.

8

17254

O-RING

SEAL - O-ring

2шт.

9

17258

AXLE PIN

PIN - dowel

4шт.

10

17248

SHIM

- .001" thick (Amber)

1шт.

11

D32079

SHIM,.002" Thk

(Red) .002" Thk

1шт.

12

D44097

SHAFT

- drive

1шт.

13

17249

RING, SNAP

RING - snap, gear retaining

4шт.

14

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

15

17243

GEAR

- drive and driven

2шт.

16

17247

SHAFT

- driven

1шт.

17

D44098

HOUSING

- gear

1шт.

18

D32078

PLATE

- wear, rear cover

1шт.

19

D44095

COVER - rear

1шт.

When ordering this item, the two bearings (17252) used with each, should be replaced.

1шт.

20

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

special, end play adjustment Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

21

D48116

WASHER

- special

1шт.

22

62-544

BOLT,Hex Skt, 5/16" - 24 x 2 3/4"

SHCS - 5/16" - 24 NF x 2-3/4"

4шт.
