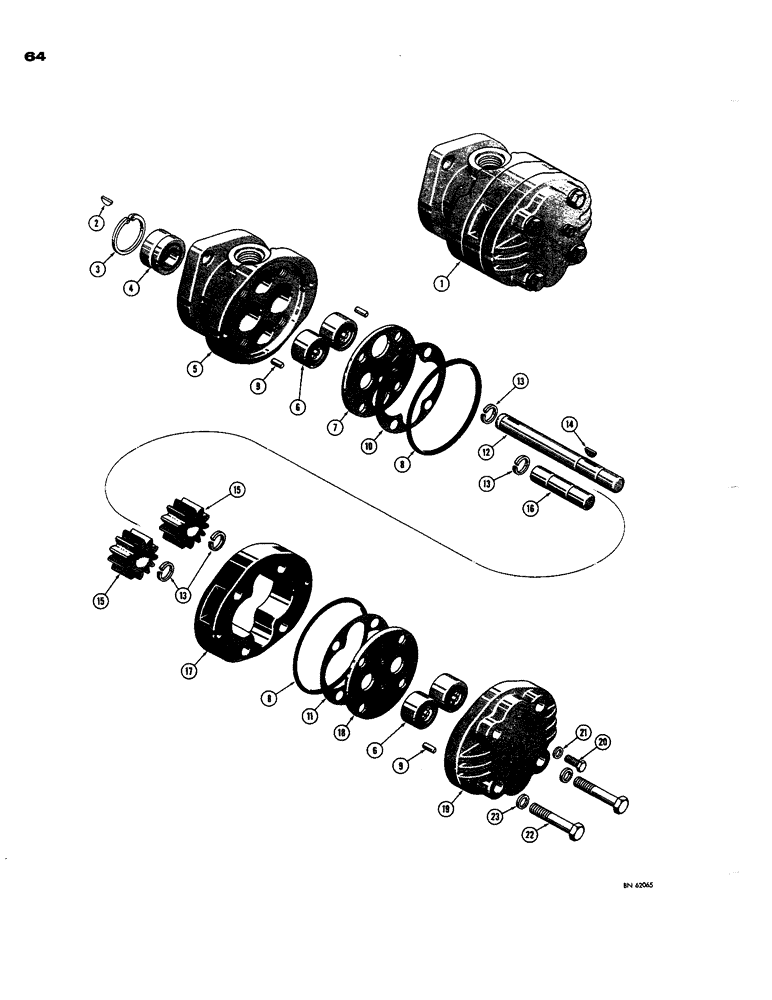

Запчасти Case 850 (064) - D37375 TORQUE CONVERTER PUMP (03) - TRANSMISSION

1

D37375

PUMP

- hydraulic, torque converter charging (Hydreco #1510L5B2)

1шт.

2

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

3

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

4

D32084

BEARING

- cover, port end

1шт.

5

D37915

COVER - port end

1шт.

When ordering this item, the two bearings (D32076 or 17252) used with each, should be replaced.

1шт.

6

D32076

BEARING

- drive and driven shafts (When stock is exhausted, order 17252 bearing for service)

4шт.

17252

BEARING

- drive and driven shafts

4шт.

7

D32078

PLATE

- wear, port end

1шт.

8

17254

O-RING

SEAL - O-ring

2шт.

9

17258

AXLE PIN

PIN - dowel

4шт.

10

17248

SHIM

- .001" thick (Amber)

1шт.

11

D32079

SHIM,.002" Thk

(Red) .002" Thk

1шт.

12

D32081

SHAFT

- drive

1шт.

13

17249

RING, SNAP

RING - snap, gear retaining

4шт.

14

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

1шт.

15

D32077

GEAR WHEEL

GEAR - drive and driven

2шт.

16

D32080

SHAFT

- driven

1шт.

17

D32082

HOUSING - gear

1шт.

18

17245

PLATE

- wear, rear cover

1шт.

19

D32075

COVER - rear

1шт.

When ordering this item, the two bearings (D32076 or 17252) used with each, should be replaced.

1шт.

20

D32073

BOLT

- special, end play adjustment (When stock is exhausted, order 13-58 bolt and D48116 washer for service)

1шт.

20

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

21

D32074

WASHER

- special, used with D32073 bolt only

1шт.

21

D48116

WASHER

- special, used with 13-58 bolt only

1шт.

22

114-311

BOLT

HHCS - 7/16 - 20 NF x 3"

4шт.

23

17260

LEVER

WASHER - special

4шт.
