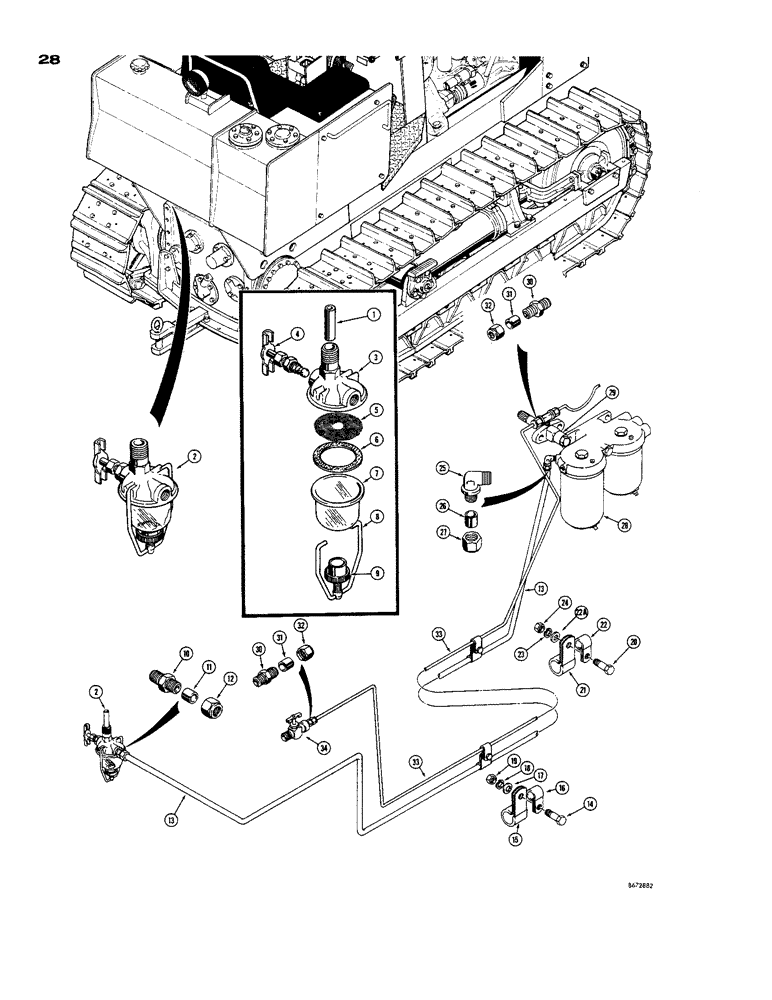

Запчасти Case 850 (028) - FUEL LINES AND STRAINER (02) - FUEL SYSTEM

33487

STRAINER ELEMENT

STRAINER ASSEMBLY - bowl type

1шт.

1

NLS

NO LONGER SERVICED

TUBE - strainer, extension

1шт.

2

A30049

STRAINER ELEMENT

STRAINER - bowl type

1шт.

3

A11214

HEAD

COVER - strainger

1шт.

4

A11200

COCK

VALVE - shut-off

1шт.

5

A11211

FILTER SCREEN

SCREEN - strainer

1шт.

6

A11208

GASKET

- bowl

1шт.

7

86982913

BOWL

- strainer, metal (If used)

1шт.

A11209

BOWL

- strainer, glass (If used)

1шт.

8

A11212

BAIL

- bowl

1шт.

9

A11210

ADJUSTER

NUT - special, bail

1шт.

10

222-26

HYD CONNECTOR,5/8"-24 x 1/8" NPTF W/Nut

CONNECTOR - male, flex tube (3/8" tube)

1шт.

11

222-104

SLEEVE,3/8" Tube

- connector

1шт.

12

222-114

NUT,5/8"-24

NUT - connector

1шт.

13

D39626

TUBE - fuel tank to fuel filter

1шт.

14

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

15

49839

CLAMP

- tube, lower

1шт.

16

51200321

CLAMP

- tube, upper

1шт.

17

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

18

92-8

LOCK WASHER,1/2"

1шт.

19

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

20

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

21

49832

CLAMP

- tube, lower

1шт.

22

51200321

CLAMP

- tube, upper

1шт.

22a

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

23

92-8

LOCK WASHER,1/2"

1шт.

24

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

25

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- male, flex tube (3/8" tube)

1шт.

26

222-104

SLEEVE,3/8" Tube

- elbow

1шт.

27

222-114

NUT,5/8"-24

NUT - elbow

1шт.

28

A40435

FILTER

ASSEMBLY - fuel, primary (1st and 2nd stage) Parts list Figure 18

1шт.

29

A8013

NOZZLE INJECTION

FUEL INJECTOR - engine, no. 4 cylinder (Parts list Figure 14)

1шт.

30

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR - male, flex tube (1/4" tube)

1шт.

31

222-102

SLEEVE,1/4" Tube

Connector 1/4" Tube

1шт.

32

87017024

TUBE NUT,1/2"-24

NUT - connector

1шт.

33

D39627

TUBE - fuel injector to fuel tank

1шт.

34

217-94

SHUT-OFF VALVE

VALVE - fuel shutoff (1/4" NPT)

1шт.
