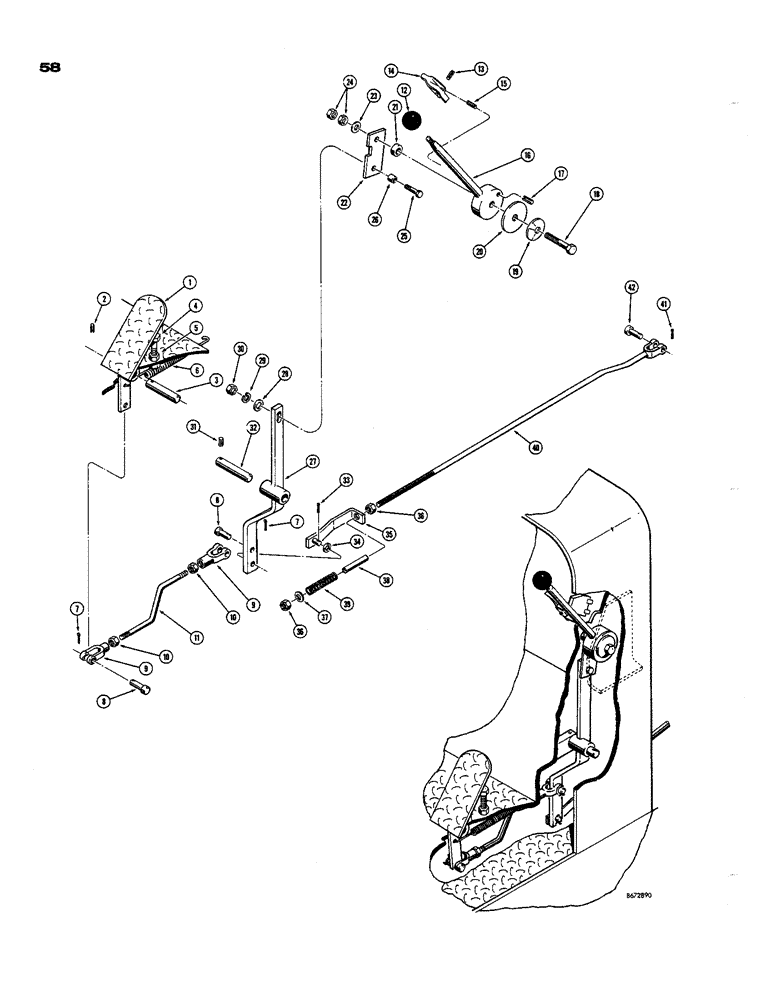

Запчасти Case 850 (058) - THROTTLE CONTROL LINKAGE (01) - ENGINE

1

D35946

PEDAL - foot throttle

1шт.

2

135-737

GROOVED PIN,5/32" x 1", Type E

PIN, GROOVED, 5/32" x 1", Type E

1шт.

3

R17364

SHAFT

- pedal pivot

1шт.

4

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

5

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, lock (1/2"-13 NC)

1шт.

6

11469

SPRING

- pedal return

1шт.

7

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

8

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

2шт.

9

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable

2шт.

10

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

11

D41760

ROD -, Serial Range: pedal-link

1шт.

12

70213

KNOB

- control

1шт.

13

138-91

LOCK PIN,3/16" x 11/16", Slotted

PIN, 3/16" x 11/16", Slotted

1шт.

14

A8011

LOCK - throttle

1шт.

15

A8012

SPRING

- throttle

1шт.

16

D35860

LEVER - hand throttle

1шт.

17

138-132

LOCK PIN,1/4" x 7/8", Slotted

PIN, 1/4" x 7/8", Slotted

1шт.

18

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

19

R14771

WASHER

- special, Bellveville

1шт.

20

R15071

DISC

- friction

1шт.

21

D35859

SPACER

- throttle link

1шт.

22

D35856

LINK - throttle

1шт.

23

95-8

WASHER,1/2"

- standard wrot 1/2"

1шт.

24

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

25

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

26

D34162

SPACER

- link

1шт.

27

D41866

LEVER - hand and foot throttle connecting

1шт.

28

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

29

92-5

LOCK WASHER,5/16"

1шт.

30

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

31

135-737

GROOVED PIN,5/32" x 1", Type E

PIN, GROOVED, 5/32" x 1", Type E

1шт.

32

R17364

SHAFT

- lever pivot

1шт.

33

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

34

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

35

D41763

LINK - lever to throttle control rod

1шт.

36

25-104

NUT,1/4"-20, G5

2шт.

37

195-18

WASHER,1/4"

- plain () 1/4"

1шт.

38

D41762

SPACER

- spring

1шт.

39

T35704

SPRING - throttle control rod

1шт.

40

D39951

ROD - throttle control, at injection pump

1шт.

41

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

42

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke, rod end

1шт.
