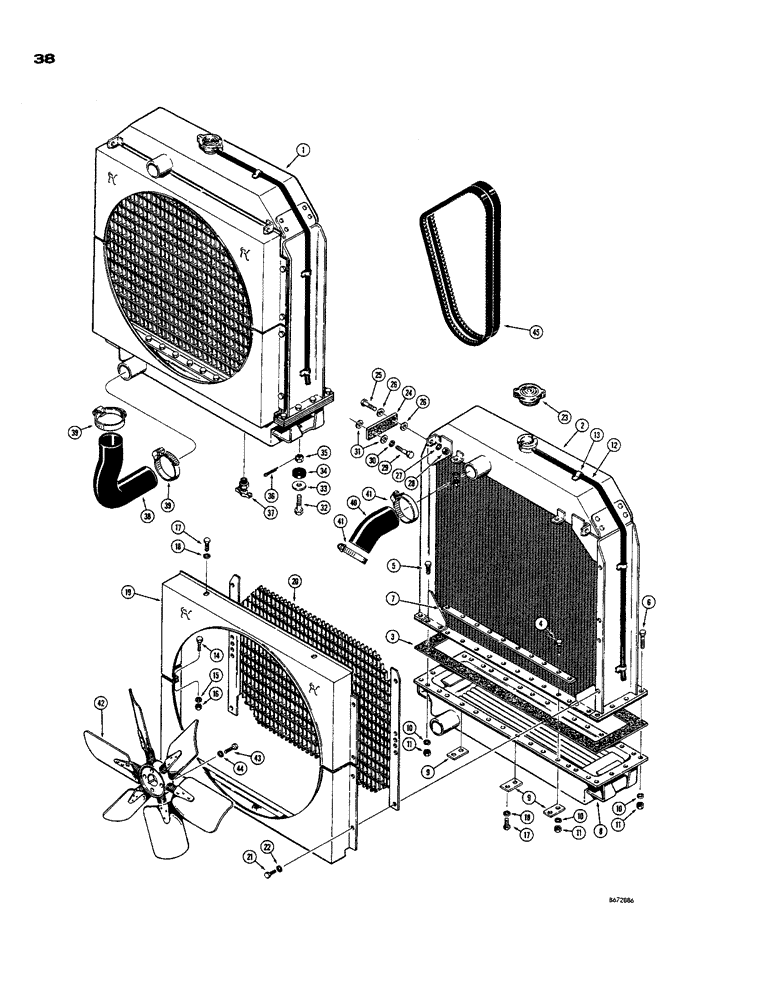

Запчасти Case 850 (038) - RADIATOR, FAN AND HOSES (01) - ENGINE

1

D40255

RADIATOR

- Young #D219988

1шт.

2

D42847

NO LONGER SERVICED

TANK AND CORE - D40255 radiator, top

1шт.

3

D38230

GASKET

- top tank and oil cooler

1шт.

4

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

20шт.

5

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

6

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

8шт.

7

D38227

BAR - header

2шт.

8

D42848

TANK - oil cooler, D40255 radiator

1шт.

9

D43430

CLIP - shroud mounting

3шт.

10

92-5

LOCK WASHER,5/16"

36шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

36шт.

12

D38224

HOSE - overflow

1шт.

13

D42850

CLAMP - hose

3шт.

14

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

15

95-4

WASHER,1/4"

- flat () 1/4"

4шт.

16

131-204

NUT,1/4"-20

NUT - hex., lock (1/4" - 20 NC)

4шт.

17

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

5шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

19

D42849

SHROUD - fan

1шт.

20

D40240

SCREEN

- anti-sand blast, D40255 radiator

1шт.

Use D40240 anti-sandblast screen with A15504 pusher fan and D42282 reversible fan only.

1шт.

21

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

8шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

23

D25826

CAP

- radiator

1шт.

24

D35108

STRAP

- radiator mounting

2шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

26

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special

4шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special

4шт.

32

D40254

BOLT

- special

2шт.

33

NLS

NO LONGER SERVICED

- special

1шт.

34

70198

WASHER

- vibration

2шт.

35

25-128

NUT

- hex., slotted (1/2" - 13 NC)

2шт.

36

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

2шт.

37

217-92

COCK

DRAIN COCK - radiator (1/4" NPT)

1шт.

38

R17766

HOSE,2.00" ID x 10.69", SAE 20R4 Class C D1 Or D2

D40255 Radiator, Outlet 2.00" ID x 10.69", SAE 20R4 Class C D1 Or D2

1шт.

39

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

40

R17765

HOSE,2.50" ID x 2.63", SAE 20R4 CLASS SC

- D40255 radiator, inlet 2.50" ID x 2.63", SAE 20R4 CLASS SC

1шт.

41

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

42

A15504

FAN

- pusher (Standard) Not illustrated

1шт.

Use D40240 anti-sandblast screen with A15504 pusher fan and D42282 reversible fan only.

1шт.

A15519

FAN

- suctin (Optional) Not illustrated

1шт.

D42282

FAN

- reversible, pusher or suction (Optional)

1шт.

Use D40240 anti-sandblast screen with A15504 pusher fan and D42282 reversible fan only.

1шт.

43

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used with A15504 and A15506 fans only Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used with D42282 fan only Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

44

92-6

LOCK WASHER,3/8"

4шт.

45

D43913

SET OF BELTS,0.69" W x 54.62" L

SET OF 2 BELTS , Fan 0.69" W x 54.62" L

1шт.
