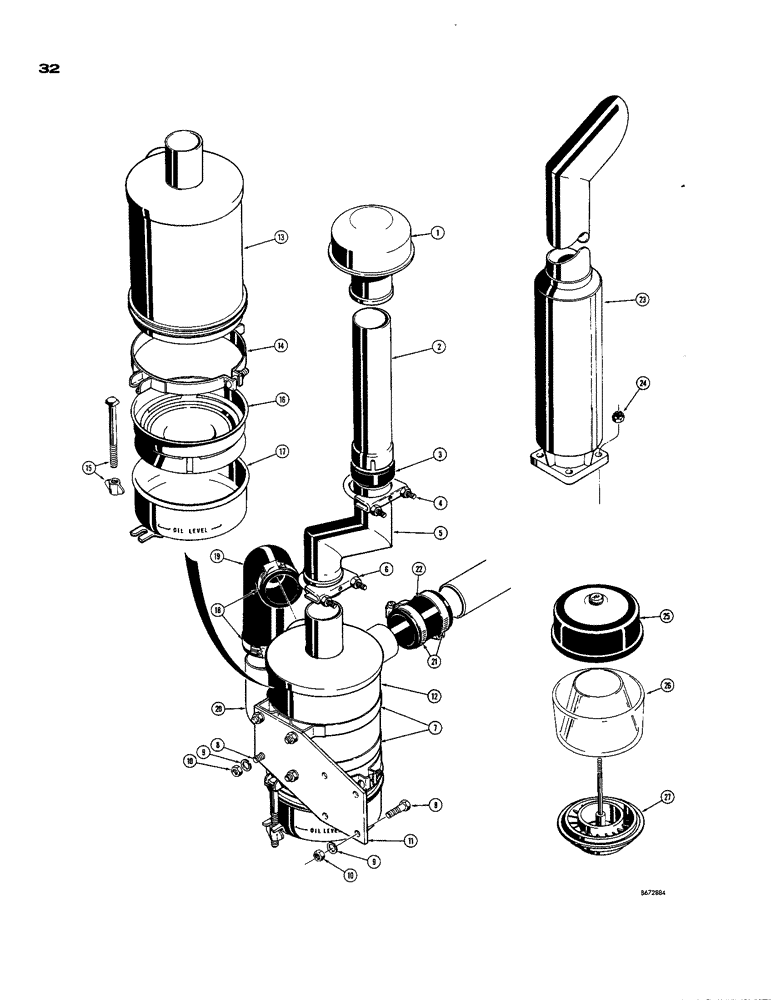

Запчасти Case 850 (032) - MUFFLER AND OIL BATH TYPE AIR CLEANER (01) - ENGINE

1

A21433

CAP

- air cleaner, screen

1шт.

2

74767

ARTICULATION

STACK - air cleaner, straight

1шт.

3

D41458

SLEEVE - stack

1шт.

4

A19955

CLAMP

- stack

1шт.

5

D41459

STACK - air cleaner, bent

1шт.

6

A13240

CLAMP,2-5/8" ID

- stack

1шт.

7

70973

BRACKET

- air cleaner mounting

2шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

9

92-5

LOCK WASHER,5/16"

8шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

8шт.

11

D41460

PLATE - air cleaner, Serial Range: bracket-cowl

1шт.

12

R22268

CLEANER

AIR CLEANER - oil bath type, optional (See Figure 30 for standard dry type air cleaner)

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

14

R22419

BAND - air cleaner

1шт.

15

R22421

BOLT - air cleaner

2шт.

16

R21392

CUP - inner, air cleaner

1шт.

17

R22420

CUP

- outer, air cleaner

1шт.

18

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

19

70970

ELBOW - hose

1шт.

20

D41454

TUBE - air cleaner to intake manifold

1шт.

21

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

22

G46338

INTAKE AIR HOSE,2.25" ID x 3.00", SAE 20R2

- Tube to intake manifold 2.25" ID x 3.00", SAE 20R2

1шт.

23

D35766

MUFFLER

- exhaust (Standard on all models except Forestry) See Figure 34 for spark arresting muffler

1шт.

24

131-906

NUT

- hex., lock (1/2" - 13 NC)

4шт.

A64589

PRECLEANER

ASSEMBLY - air cleaner, optional (Used with oil bath type air cleaner only)

1шт.

25

73187

COVER

- precleaner

1шт.

26

365413R1

BOWL

BODY - precleaner

1шт.

27

73185

SLEEVE

- precleaner

1шт.
