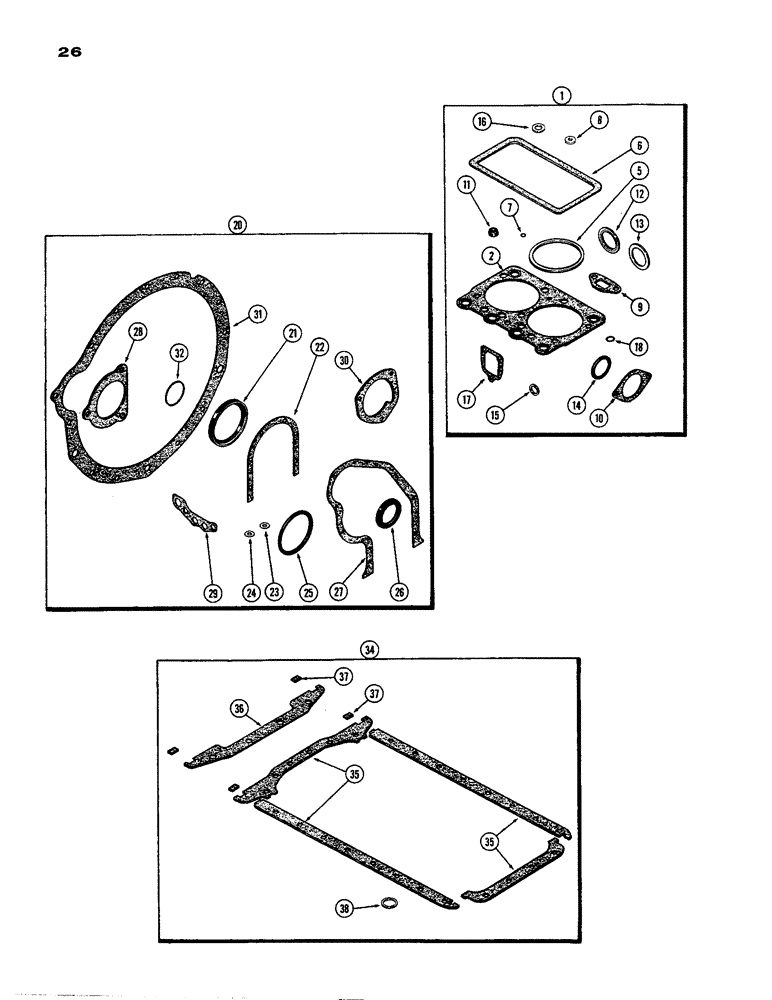

Запчасти Case 850 (026) - ENGINE GASKET KITS, (301) DIESEL ENGINE (01) - ENGINE

1

A41576

GASKET

KIT - valve grind (See Note)

1шт.

2

A57593

GASKET

- cylinder head

2шт.

5

A34686

RING

- fire, cylinder head gasket (Std.)

4шт.

6

A57595

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O"RING - rocker shaft oil tube

2шт.

8

A23684

GASKET

GASKET - cylinder head cover stud

4шт.

9

A27905

GASKET

- water manifold

4шт.

10

A28113

GASKET

- thermostat housing

1шт.

11

A10726

SEAL

SHIELD - oil, intake valve stem

4шт.

12

A11888

MANIFOLD GASKET

- exhaust manifold

4шт.

13

A21054

MANIFOLD GASKET

- intake manifold

2шт.

14

A30954

GASKET

SEAL - thermostat

1шт.

15

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - fuel injection nozzle

4шт.

16

A23685

GASKET

- breather tube to cover (not applicable)

2шт.

17

A22939

GASKET

- decompressor opening (not applicable)

2шт.

18

A34133

GASKET

- breather tube bolt (not applicable)

2шт.

20

A40348

KIT

GASKET KIT - engine block (See Note)

1шт.

21

A23085

OIL SEAL

- oil, rear crankshaft

1шт.

22

A32830

GASKET

- rear crankshaft seal retainer

1шт.

23

A22670

SHIM,.005" Thk

Balancer .005" Thk

4шт.

24

A22671

SHIM,.010" Thk

Balancer .010" Thk

4шт.

25

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O"RING - injection pump housing

1шт.

26

A57342

SEAL

- oil, crankshaft front

1шт.

27

A33018

GASKET

- timing gear cover

1шт.

28

A27933

GASKET

- starting motor

1шт.

29

A21084

GASKET

- oil filter base

1шт.

30

A57596

GASKET

- water pump mounting

1шт.

31

A11649

GASKET

- cyl. block to conn. hsg. (not applicable)

1шт.

32

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O"RING - flywheel to crankshaft (not applicable)

1шт.

34

A20171

GASKET

KIT - oil pan (See Note)

1шт.

35

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order ref. 34)

4шт.

36

A11603

OIL PAN GASKET SET

- seal plate

1шт.

37

A11604

OIL PAN GASKET SET

- end, seal plate gasket

2шт.

38

A22317

WASHER

- seal plate to pan bolt

2шт.
