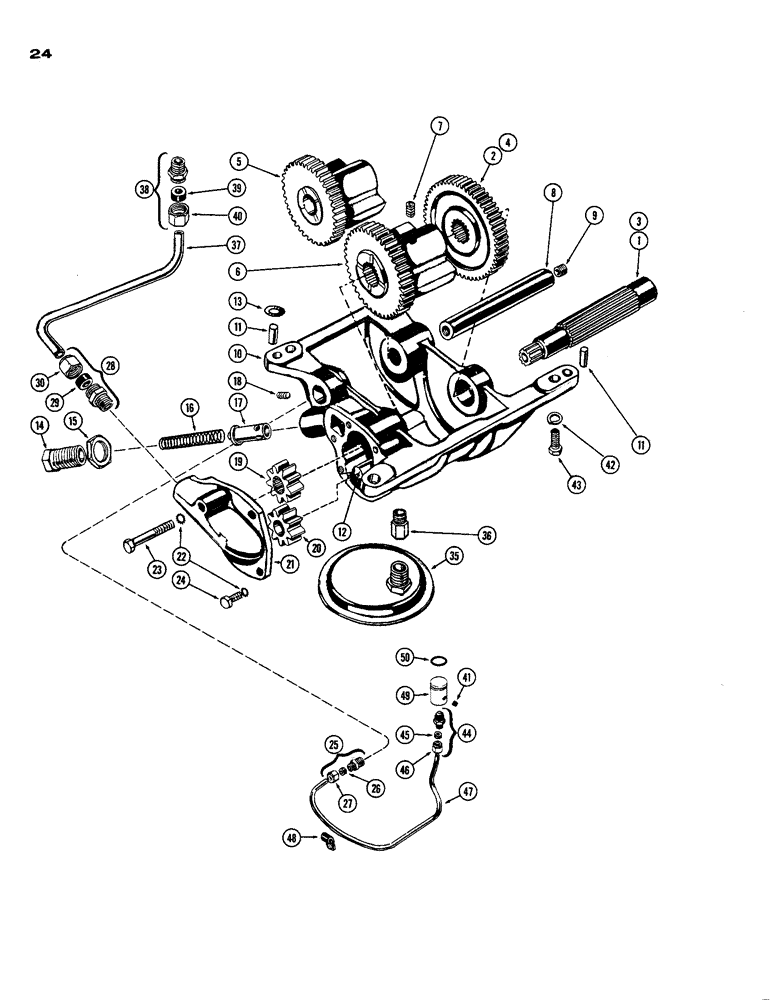

Запчасти Case 850 (024) - BALANCER AND OIL PUMP, (301)DIESEL ENGINE (01) - ENGINE

A62235

BALANCER

ASSY. - w/oil pump (incl. items 1 & 2 & 5 thru 31) (1st used eng. ser. no. 2209603)

1шт.

A22540

BALANCER

ASSY. - w/oil pump (incl. items 3 thru 31) (used prior to eng. ser. no. 2209603)(Order A62235)

1шт.

1

A57957

SHAFT

- drive, counterweight, w/out sleeve (used w/A57960 balancer assy.)

1шт.

2

A57958

GEAR

- drive, counteweight (w/partial internal spline) (used w/A57960 balancer assy)

1шт.

3

A22558

SHAFT

ASSY. - drive, counterweight (w/sleeve) (used w/A22540 balancer)(Order A57957 & A57958)

1шт.

4

A22562

X

GEAR - drive, counterweight (w/full internal spline) (used w/A22540 balancer)(Order A57958)

1шт.

5

A62236

WEIGHT

COUNTERWEIGHT ASSY. - driven(Replaces A22546)

1шт.

6

A62238

WEIGHT

COUNTERWEIGHT - drive (splined)(Replaces A22561)

1шт.

7

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8 x 3/8" N.C. sckt. hd. cup pt.

1шт.

8

A22563

SHAFT

- stationary

1шт.

9

221-841

PLUG

- 1/4"P.T.,sckt. hd.

1шт.

10

A22541

HOUSING ASSY. - balancer

1шт.

11

A8134

PIN

- dowel, housing, 3/8" x 3/4"

2шт.

12

A22543

SHAFT

- stub, oil pump gear

1шт.

13

A22670

SHIM,.005" Thk

Hsg. to cyl. block .005" Thk

1шт.

13

A22671

SHIM,.010" Thk

Hsg. to cyl. block .010" Thk

1шт.

14

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, oil pump relief

1шт.

15

A27858

NUT

- adjusting screw

1шт.

16

A23598

VALVE SPRING

SPRING - relief, oil pump (Use w/A22540 Balancer)

1шт.

16

A61958

VALVE SPRING

SPRING - relief, oil pump (Use w/A57960 Balancer)

1шт.

17

A22566

PLUNGER

- relief, oil pump

1шт.

18

178-40

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, 5/16 x 3/8" hex. sckt., cone pt.

1шт.

19

A22564

GEAR

- drive, oil pump (Splined)

1шт.

20

A22555

GEAR

ASSY. - oil pump, w/bushing

1шт.

21

A22565

COVER ASSY

COVER - outlet, oil pump

1шт.

22

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

5шт.

23

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Cover Hex, 5/16"-18 x 2", G5

2шт.

24

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

25

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - 1/4" P.T.

1шт.

26

222-102

SLEEVE,1/4" Tube

Connector 1/4" Tube

1шт.

27

87017024

TUBE NUT,1/2"-24

NUT - connector, 1/4" tube

1шт.

28

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - 1/2" P.T.

1шт.

29

222-106

SLEEVE,5/8" Tube

- connector

1шт.

30

222-116

TUBE NUT,1"-18

NUT - connector, 5/8" tube

1шт.

35

A22590

FILTER SCREEN

SCREEN ASSY. - oil inlet

1шт.

36

A22591

ADAPTER

- oil pump screen (used w/deep pan)

1шт.

37

A62745

TUBE

- oil, Serial Range: pump-filter

1шт.

38

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - 1/2" P.T.

1шт.

39

222-106

SLEEVE,5/8" Tube

- connector

1шт.

40

222-116

TUBE NUT,1"-18

NUT - connector, 5/8" tube

1шт.

41

A22593

SET SCREW,1/4" - 18 x 7/8"

- set, Serial Range: plug-block

1шт.

42

92-8

LOCK WASHER,1/2"

4шт.

43

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

44

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

CONNECTOR ASSY. - 1/8" P.T.

1шт.

45

222-102

SLEEVE,1/4" Tube

Connector 1/4" Tube

1шт.

46

87017024

TUBE NUT,1/2"-24

NUT - connector, 1/4" tube

1шт.

47

A22596

TUBE

- oil gallery to balancer shaft

1шт.

48

A20541

CLIP

- oil tube

1шт.

49

A57075

PLUG

- oil gallery, cylinder block

1шт.

50

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O"RING - oil gallery plug

1шт.
