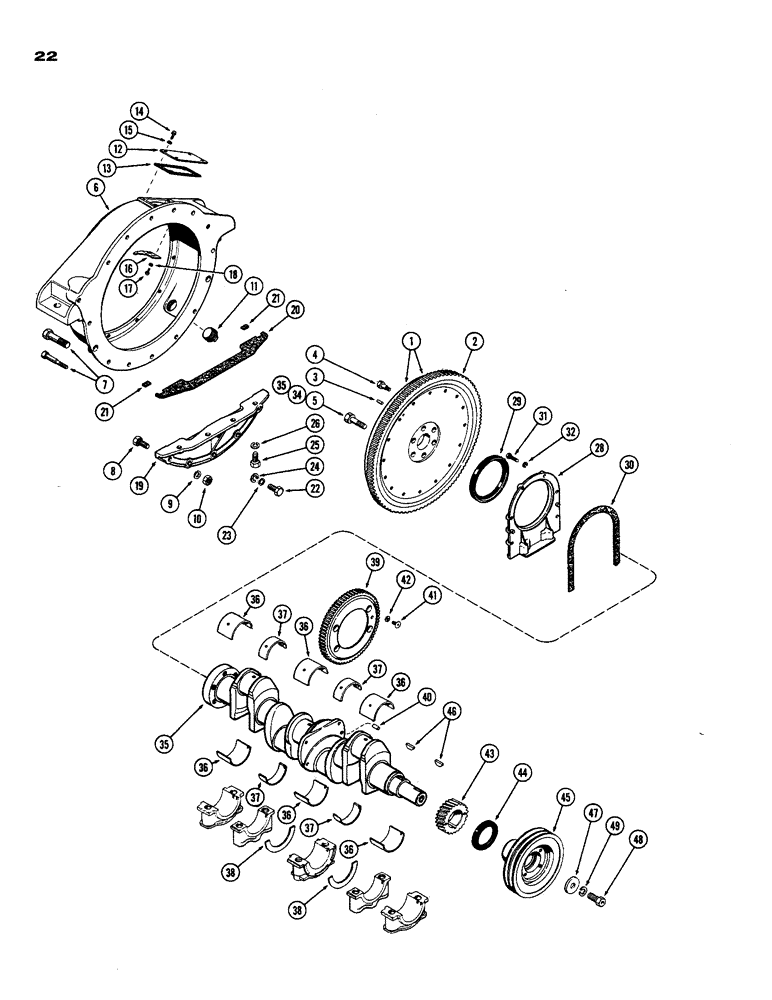

Запчасти Case 850 (022) - CRANKSHAFT-FLYWHEEL AND HOUSING, (301) DIESEL ENGINE (01) - ENGINE

1

A34210

FLYWHEEL ASSY. - engine

1шт.

2

A27920

GEAR

- ring, flywheel

1шт.

3

A27840

PIN

- dowel, flywheel

1шт.

4

A11549

STEP BOLT

BOLT - dowel, flywheel (9/16 x 1-17/32)(See ref. 34 & 35)

2шт.

5

A11550

BOLT (SPREADER)

BOLT - flywheel (5/8" N.F. x 1-1/2")(See ref. 34 & 35)

4шт.

6

A21040

HOUSING

- flywheel

1шт.

7

A20108

BOLT - housing to cylinder block

2шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

8

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.F. hex

6шт.

9

92-8

LOCK WASHER,1/2"

4шт.

10

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

11

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - 1-1/4"sq. hd.

1шт.

12

A22584

COVER

- housing inspection & timing

1шт.

13

A22585

GASKET

- timing cover

1шт.

14

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

15

92-5

LOCK WASHER,5/16"

4шт.

16

A22586

INDICATOR

POINTER - timing, flywheel

1шт.

17

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

A22688

PLATE - seal clutch housing

1шт.

20

A11603

OIL PAN GASKET SET

- seal plate

1шт.

21

A11604

OIL PAN GASKET SET

- end, seal plate

2шт.

22

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

23

A11648

WASHER - seal plate bolt

1шт.

24

92-8

LOCK WASHER,1/2"

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

26

92-6

LOCK WASHER,3/8"

4шт.

28

A57457

RETAINER

ASSY. - rear seal, crankshaft

1шт.

29

A23085

OIL SEAL

- oil, 4-3/4 x 5-3/4 x 1/2"

1шт.

30

A32830

GASKET

- rear retainer

1шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

32

92-6

LOCK WASHER,3/8"

6шт.

33

A22578

CRANKSHAFT - engine (Order A42802)

1шт.

33

A42802

KIT

Crankshaft KIT - replacement (incl. new bolts)

1шт.

34

114-622

X

BOLT - 5/8 x 2" N.F. hex. (Gr.8) not required on 850

2шт.

35

25331R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

- 5/8 x 1-1/2" N.F. hex. (Gr.8) use on 850 plus Ref. 4 and 5

2шт.

36

A28687

LINING

INSERT ASSY. - main brg. (Set of 2)(Wide)(Std.)

3шт.

36

A7182

KIT

INSERT ASSY. - main brg. (Set of 2)(Wide)(-.002")

3шт.

36

A7188

BEARING LINER

INSERT ASSY. - main brg. (Set of 2)(Wide)(-.010")

3шт.

36

A42193

LINER

INSERT ASSY. - main brg. (Set of 2)(Wide)(-.020")

3шт.

36

A7200

KIT

INSERT ASSY. - main brg. (Set of 2)(Wide)(-.030")

3шт.

37

A20394

LINING

INSERT ASSY - main brg. (Set of 2)(Narrow)(Std.)

2шт.

37

A20579

LINING

INSERT ASSY. - main brg. (Set of 2)(Narrow)(-.002")

2шт.

37

A42483

LINING

INSERT ASSY. - main brg. (Set of 2)(Narrow)(-.010")

2шт.

37

A42484

KIT

INSERT ASSY. - main brg. (Set of 2)(Narrow)(-.020")

2шт.

37

A20588

KIT

INSERT ASSY. - main brg. (Set of 2)(Narrow)(-.030")

2шт.

38

A27835

WASHER

- thrust, crankshaft brg. (Std.)

2шт.

38

A7204

WASHER

- thrust, crankshaft brg. (.006" oversize)

2шт.

39

A22576

GEAR

- drive balancer

1шт.

40

A8134

PIN

- dowel, balancer drive gear, 3/8x 3/4"

1шт.

41

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW - mtg., drive gear, 3/8 x 3/4 " N.F., flat sckt. hd.

4шт.

42

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, Ext Csk Tooth, 3/8"

4шт.

43

A27837

GEAR

- crankshaft

1шт.

44

A57342

SEAL

- oil, crankshaft front, 2-5/8 x 3-5/8 x 1/2"

1шт.

45

A61163

PULLEY

- drive, fan & generator (Replaces A24500)

1шт.

46

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

KEY - crankshaft gear & pulley, #6 Woodruff

2шт.

47

A27903

WASHER

- drive pulley, 21/32 x 2-1/8 x 17/64"

1шт.

48

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- drive pulley ret., 5/8 x 1-1/2" N.C. hex.

1шт.

49

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.
