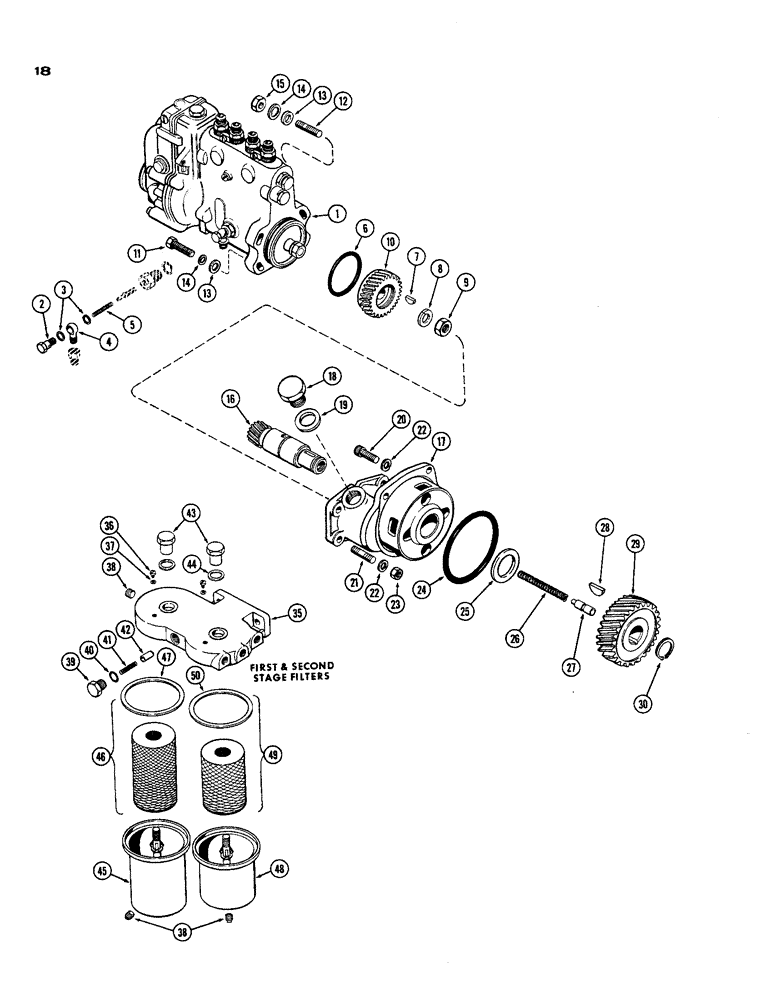

Запчасти Case 850 (018) - FUEL INJECTION PUMP AND DRIVE, (301) DIESEL ENGINE (01) - ENGINE

1

A57877

PUMP ASSY. - fuel injection (1900 RPM)(Crawler Dozer)

1шт.

1

A20448

PUMP ASSY. - fuel injection (2000 RPM)(Crawler Loader)

1шт.

2

A25192

BANJO BOLT

BOLT - lube oil fitting

1шт.

3

A22381

WASHER

- banjo fitting

2шт.

4

A25191

FITTING

- oil lube line (Banjo type)

1шт.

5

A25190

SPRING

- oil lube port

1шт.

6

A42056

O-RING,2.598" ID x 2.834" OD x 0.118"

"O" RING - pump to housing, 2-19/32 x 2-27/32 x 1/8"

1шт.

7

A20933

KEY

- drive gear, pump

1шт.

8

A25188

WASHER

- gear lock

1шт.

9

A25189

NUT - retaining, pump gear

1шт.

10

A21139

GEAR

- injection pump

1шт.

11

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- pump, lower, 3/8 x 1-1/2 N.C. hex.

2шт.

12

A20664

STUD - pump, uppper, 3/8" N.F. x 1-7/8"

2шт.

13

A57470

WASHER

- 13/32 x 11/16" x 16 gauge

4шт.

14

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

15

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

16

A20622

GEAR

PINION - drive, pump gear

1шт.

17

A21136

HOUSING ASSY. - w/bushing

1шт.

18

A21140

PLUG

- timing window

1шт.

19

A58613

SEALING WASHER

GASKET - timing plug (nylon)

1шт.

20

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - housing, 3/8 x 1-1/4" N.C., 12 pt. hd.

1шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Housing Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

21

A26554

STUD - housing, 3/8" N.C./N.F. x 1-9/16"

1шт.

22

92-6

LOCK WASHER,3/8"

3шт.

23

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

24

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - housing to cylinder block

1шт.

25

A27864

WASHER

- thrust

1шт.

26

CASA27853

SPRING

- plunger tension

1шт.

27

A27852

PLUNGER

- thrust, pinion

1шт.

28

126-66

WOODRUFF KEY

KEY - drive gear, #141 Woodruff

1шт.

29

A20899

GEAR WHEEL

GEAR - drive, fuel injection pump

1шт.

30

A27576

SNAP RING,#98, Ext

Ring, Snap, , drive gear #98, Ext

1шт.

A40435

FILTER

ASSY. - primary fuel, 1st & 2nd stage

1шт.

35

A24915

HEAD - 1st & 2nd stage filters

1шт.

36

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, 1st & 2nd stage filters

2шт.

37

A20662

GASKET

WASHER - bleed screw, 1st & 2nd stage filters

2шт.

38

221-849

PLUG,Hex Soc, 1/8"-27

- 1/8" P.T. ctsk. sckt. hd., 1st & 2nd stage filters

3шт.

39

A24916

PLUG

- relief valve, 1st & 2nd stage filters

1шт.

40

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - valve plug, 1/2 x 11/16 x 3/32", 1st & 2nd stage filters

1шт.

41

A24918

SPRING

- relief valve, 1st & 2nd stage filters

1шт.

42

A24917

PLUNGER

- relief valve, 1st & 2nd stage filters

1шт.

43

A21131

NUT

- body retaining, 1st & 2nd stage filters

2шт.

44

A28055

GASKET

- retaining nut, 1st & 2nd stage filters

2шт.

45

A21129

BODY

- 1st & 2nd stage filters

1шт.

46

A21141

FILTER, ELEMENT

ELEMENT ASSY. - 4-13/16" long, 1st & 2nd stage filters

1шт.

47

A28056

GASKET

- body to head, 1st & 2nd stage filters

1шт.

48

A21132

BODY

- 1st & 2nd stage filters

1шт.

49

A7627

FILTER, ELEMENT

ELEMENT ASSY. - 3-7/8" long, 1st & 2nd stage filters

1шт.

50

A28056

GASKET

- body to head, 1st & 2nd stage filters

1шт.
