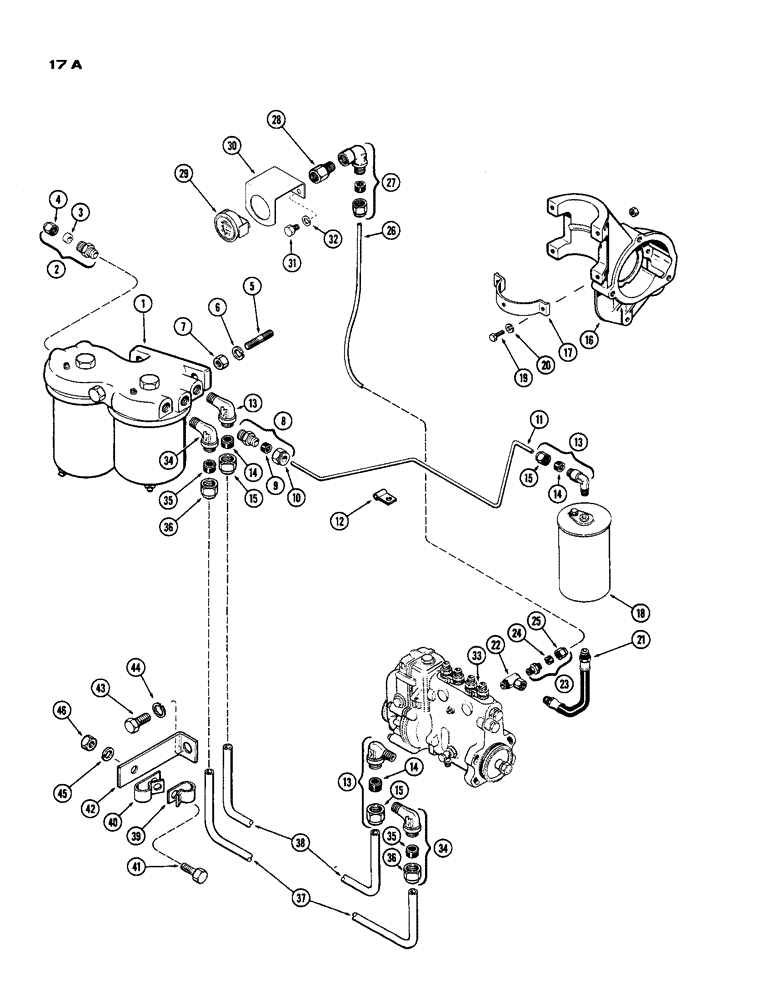

Запчасти Case 850 (017A) - FUEL INJ. FILTER SYS., (301) DIESEL ENG., 3 STAGE FILTERING SYS. USED PRIOR TO ENG. S/N 2205978 (01) - ENGINE

1

A40435

FILTER

ASSY. - 1st & 2nd stage (Repairs, Figure18)

1шт.

2

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR ASSY. - 3/8" tube, 1/4" P.T.

2шт.

3

222-104

SLEEVE,3/8" Tube

- connector, 3/8" Tube

1шт.

4

222-114

NUT,5/8"-24

NUT - connector, 3/8" tube

1шт.

5

A26554

STUD - mounting,primary filter

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

8

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - 5/16" tube, 1/4" P.T.

1шт.

9

222-103

SLEEVE,5/16" Tube

- Connector 5/16" Tube

1шт.

10

222-113

TUBE NUT,9/16"-24

NUT - connector 5/16" tube

1шт.

11

A22253

TUBE

1шт.

12

A7922

CLIP

- tube retainer

1шт.

13

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 5/16" tube, 1/4" P.T.

3шт.

14

222-103

SLEEVE,5/16" Tube

- Elbow 5/16" Tube

1шт.

15

222-113

TUBE NUT,9/16"-24

NUT - elbow, 5/16" tube

1шт.

16

A22583

ADAPTER

- mounting, water pump & 3rd stage filter

1шт.

17

A21144

CLAMP

- third stage filter

2шт.

18

A57228

FILTER

- third stage

1шт.

19

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

20

92-5

LOCK WASHER,5/16"

4шт.

21

A20538

FUEL HOSE,0.38" ID x 8.50"

Third stage filter to fuel pump 0.38" ID x 8.50"

1шт.

22

A20539

FITTING

UNION - fuel, Serial Range: hose-pump

1шт.

23

222-20

CONNECTOR, ELEC,3/8"-24 x 1/8" NPTF

CONNECTOR ASSY. - 1/8" tube, 1/8" P.T.

1шт.

24

222-100

TUBE NUT,1/8" Tube

SLEEVE - connector, 1/8" Tube

1шт.

25

222-110

TUBE NUT,3/8"-24

NUT - connector, 1/8" tube

1шт.

26

A9364

TUBE

- gauge to fuel pump adapter

1шт.

27

222-53

ELBOW,3/8"-24 x 1/8 NPTF

- 1/8" tube, 1/8" P.T., incl. items 24 & 25

1шт.

28

A28061

FITTING

SNUBBER - fuel gauge

1шт.

29

A8101

GAUGE

- fuel oil pressure

1шт.

30

A57077

BRACKET

SUPPORT - fuel gauge

1шт.

31

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

32

92-6

LOCK WASHER,3/8"

2шт.

33

A57877

PUMP ASSY. - fuel injection (Repairs, Figure18)

1шт.

34

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 3/8" tube, 1/4" P.T.

2шт.

35

222-104

SLEEVE,3/8" Tube

- elbow, 3/8" Tube

1шт.

36

222-114

NUT,5/8"-24

NUT - elbow, 3/8" tube

1шт.

37

A20650

TUBE

- first stage, Serial Range: filter-pump

1шт.

38

A20651

TUBE

- pump to second stage filter

1шт.

39

A27814

X

CLIP - second stage tube

1шт.

40

A20688

CLIP

- first stage tube

1шт.

41

75-412

SCREW,Rd, 1/4" x 3/4"

- mach., 1/4 x 3/4" N.C. rd. hd.

1шт.

42

A20656

BRACKET - first & second stage tube

1шт.

43

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

44

92-5

LOCK WASHER,5/16"

1шт.

45

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

46

25-104

NUT,1/4"-20, G5

1шт.
