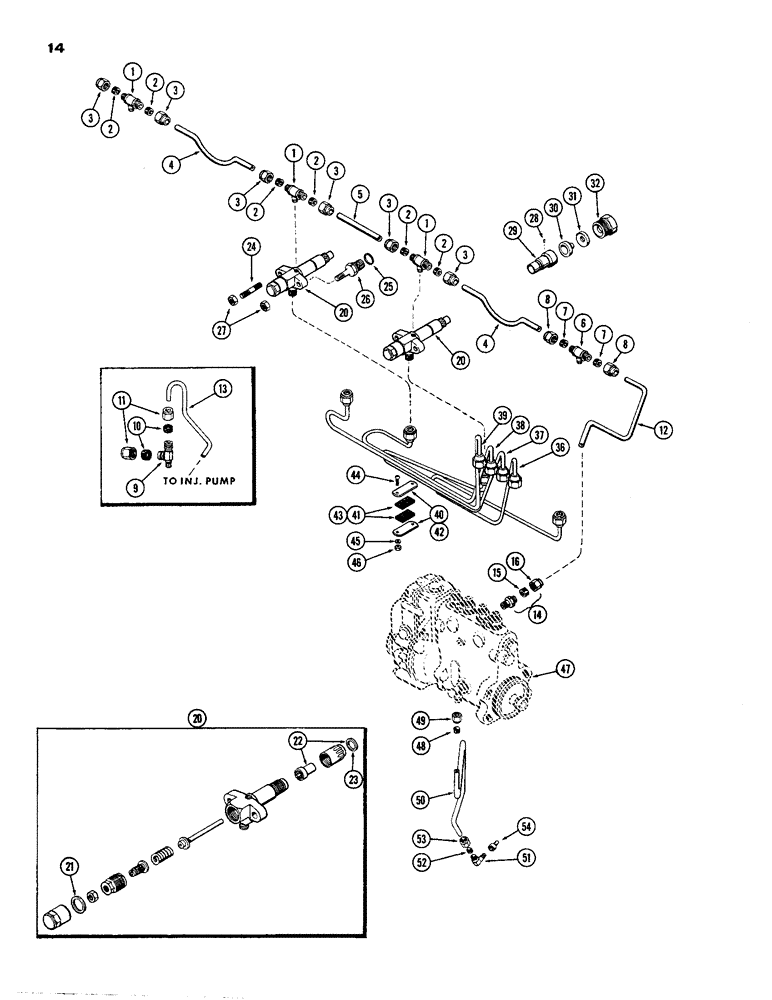

Запчасти Case 850 (014) - FUEL INJECTION SYSTEM, (301) DIESEL ENGINE (01) - ENGINE

1

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY. leak off, 1/4" tube, 1/8" P.T.

3шт.

2

222-102

SLEEVE,1/4" Tube

2шт.

3

87017024

TUBE NUT,1/2"-24

NUT - for 1/4"tube

2шт.

4

A27981

TUBE

- fuel leak-off, lower (off-set)

2шт.

5

A20162

TUBE

- fuel leak-off, upper (straight)

1шт.

6

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY. - leak-off, 1/4" tube, 1/8" P.T. (Used w/2 stage system)(male branch tee)

1шт.

7

222-102

SLEEVE,1/4" Tube

2шт.

8

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

2шт.

9

222-62

TEE,1/2"-24 Fem Run x 1/2"-24 Male x 1/8" NPT Br

ASSY. - leak off, 1/4" tube, 1/8" P.T. (used w/3 stage system)(male run tee)

1шт.

10

222-102

SLEEVE,1/4" Tube

2шт.

11

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

2шт.

12

A22186

TUBE

- leak-off, #1 injector to pump (used w/2 stage system & 222-72 tee)

1шт.

13

A20647

TUBE - leak-off, #1 injector to pump (used w/3 stage system & 222-62 tee)

1шт.

14

A28098

VALVE

CONNECTOR ASSY. - check valve

1шт.

15

222-102

SLEEVE,1/4" Tube

1шт.

16

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

20

A8013

NOZZLE INJECTION

INJECTOR ASSY. - feul injection

4шт.

21

A31062

GASKET

- injector cap

1шт.

22

A31159

NOZZLE INJECTION

NOZZLE ASSY. - injector

1шт.

23

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - nozzle seat

1шт.

24

A27929

STUD

- short, nozzle mounting

4шт.

25

A10679

GASKET

- nozzle stud

4шт.

26

A10678

STUD

- large, nozzle mounting

4шт.

27

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

8шт.

28

A11810

PIN,3.19mm OD x 6.99mm L

- locating, powrcel body

4шт.

29

A22978

BODY

- powrcel

4шт.

30

A22975

CAP

- powrcel

4шт.

31

A11812

CLAMP

- powrcel

4шт.

32

A11813

PLUG

SCREW - powrcel retainer

4шт.

36

A20501

TUBE

ASSY. - fuel injection (#1 cylinder)

1шт.

37

A20502

TUBE

ASSY. - fuel injection (#2 cylinder)

1шт.

38

A20503

TUBE

ASSY. - fuel injection (#3 cylinder)

1шт.

39

A20504

TUBE

ASSY. - fuel injection (#4 cylinder)

1шт.

40

A28046

CLAMP

- injection tubes (4 tubes)(1-53/64" long)

2шт.

41

A28047

CUSHION

- tube clamp (4 tubes)(1 x 3/4 x 1/8" cork)

2шт.

42

A27997

CLAMP - injection tube (3 tubes)(1-37/64" long)

2шт.

43

A27979

CUSHION

- tube clamp ( 3 tubes)(3/4 x 3/4 x 1/8" cork)

2шт.

44

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- mach., #10 x 1" N.C., rd. hd.

4шт.

45

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

46

129-7

NUT,Hex, #10 - 24

- #10 N.C. hex.

4шт.

47

A57877

PUMP ASSY. - fuel (1900 RPM)(Crawler Dozer) (For Repairs See Figure 18)

1шт.

47

A20448

PUMP ASSY. - fuel (2000 RPM)(Crawler Loader) (For repairs See Figure 18)

1шт.

48

222-102

SLEEVE,1/4" Tube

1шт.

49

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

50

A21786

TUBE - oil, pump to block oil gallery

1шт.

51

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - oil tube, 5/16" tube, 1/4" P.T.

1шт.

52

222-102

SLEEVE,1/4" Tube

1шт.

53

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

54

221-1052

PLUG

BUSHING - reducer, 3/8 to 1/8", Serial Range: tube-block

1шт.
