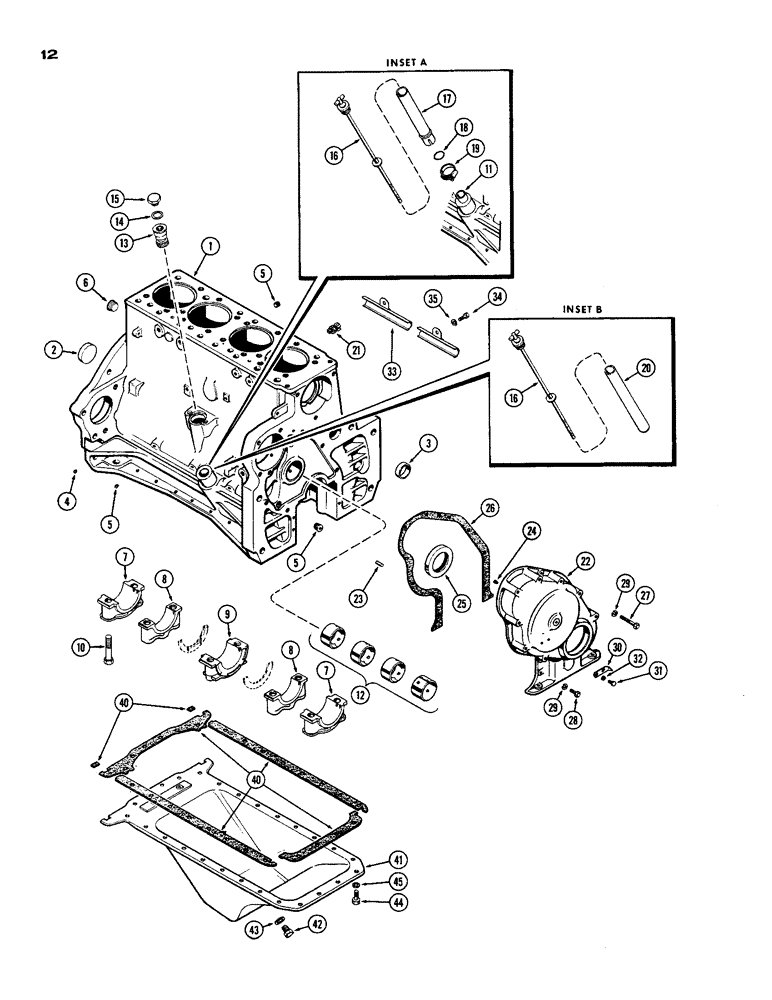

Запчасти Case 850 (012) - CYLINDER BLOCK ASSEMBLY, (301) DIESEL ENGINE (01) - ENGINE

A40361

SHORT ENGINE

BLOCK ASSY. - cylinder, short (Casting No. A23443) (Incl. stripped block, piston assy., conn. rod & brgs., crankshaft & brgs., camshaft, timing gears, push rod lifters & camshaft bushings (See Note and Inset "A")

1шт.

1

A23494

BLOCK

ASSY. - cylinder, stripped (Casting No. A23443) (See Note and Inset "A")

1шт.

2

A24361

PLUG

- camshaft hole, 2-3/8" cup type

1шт.

3

41-1628

PLUG,Cup, 1 3/4", Stainless

- cup, front, water gallery

1шт.

4

221-41

PLUG

- 1/8" P.T.,sltd. hd.

2шт.

5

221-1843

PLUG

- 3/8" P.T.,sckt. hd

3шт.

6

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - 1" P.T., sckt. hd.

1шт.

7

A24941

CAP

- brg., crankshaft (wide)

2шт.

8

A24942

CYLINDER END CAP

CAP - brg., crankshaft (narrow)

2шт.

9

A24943

CAP

- brg., crankshaft (thrust)

1шт.

10

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

- brg., cap, 5/8 x 3-1/4" N.C. spec.

10шт.

11

A34540

TUBE

SOCKET ASSY. - oil level guage (See inset "A")

1шт.

12

A23577

KIT

BUSHING KIT - camshaft (Set of 4)

1шт.

13

A34266

DRIVE

ASSY. - tachometer

1шт.

14

A27968

RING

WASHER - cap, tachometer

1шт.

15

A22594

CAP

- tachometer drive

1шт.

16

A22589

ELECTRICAL GAUGE

DIPSTICK - oil level

1шт.

17

A57940

TUBE

- dipstick (See Note and inset "A")

1шт.

18

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - tube, 1-1/8 x 1-3/8 x 1/8" (See note & inset "A")

1шт.

19

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - tube to block, 1-3/16 to 1-3/4" (See Note and inset "A")

1шт.

20

A22602

X

TUBE - dipstick (See Note and inset "B")

1шт.

21

A23656

COCK, DRAIN

VALVE - drain, cylinder block

1шт.

22

A57403

COVER

ASSY. - timing gear

1шт.

23

A27840

PIN

- cover locating, 5/16 x 3/4"

2шт.

24

A27869

BUTTON - thrust, bumper

2шт.

25

A57342

SEAL

- crankshaft front

1шт.

26

A33018

GASKET

- timing gear cover

1шт.

27

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover, 3/8 x 2-1/2" N.C. hex.

8шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

10шт.

30

A21362

CLIP

POINTER - timing indicator

1шт.

31

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

32

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - shakeproof, 1/4" int./ext.

2шт.

33

A7532

CONDUIT - wiring

1шт.

34

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

35

92-5

LOCK WASHER,5/16"

2шт.

40

A20171

GASKET

KIT - oil pan

1шт.

41

A21041

PAN

- oil, engine

1шт.

42

A14280

PLUG

- drain, oil pan

1шт.

43

A58608

GASKET

- plug (nylon), oil pan

1шт.

44

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

26шт.

45

92-6

LOCK WASHER,3/8"

oil pan 3/8"

26шт.
