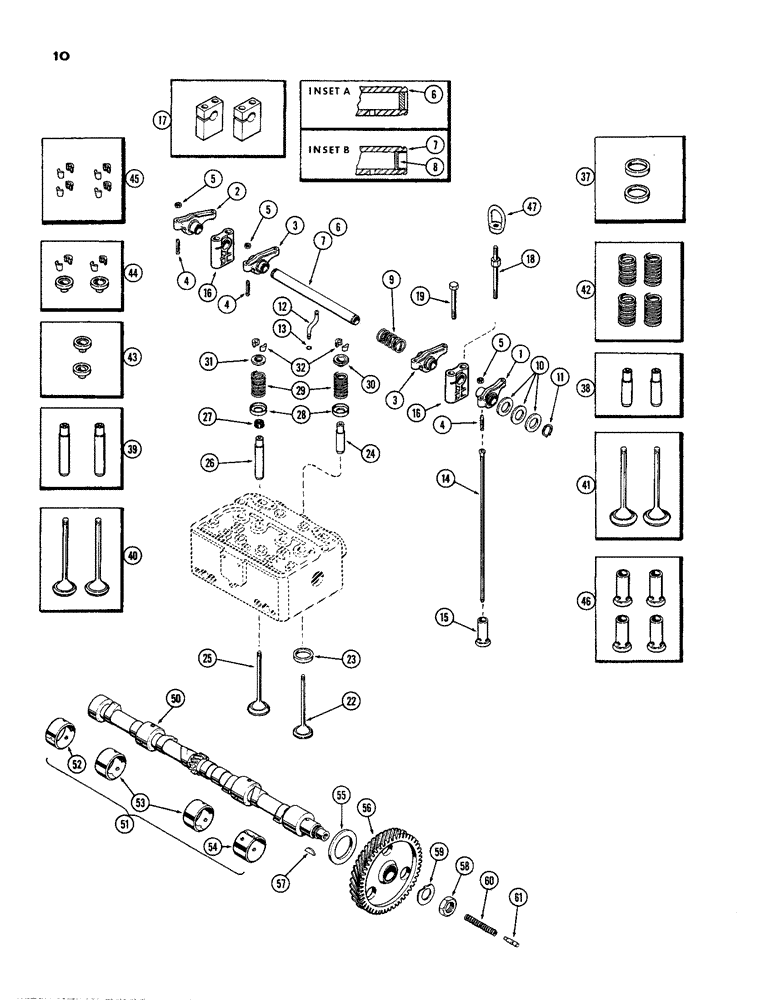

Запчасти Case 850 (010) - VALVE MECHANISM AND CAMSHAFT, (301) DIESEL ENGINE (01) - ENGINE

1

A22324

ROCKER

ARM ASSY. - rocker, exhaust (1st & 3rd. cylinders) (Incl. Items 4 & 5)

2шт.

2

A22326

ROCKER

ARM ASSY. - rocker, exhaust (2nd & 4th cylinders) (Incl. Items 4 & 5)

2шт.

3

A22322

ROCKER

ARM ASSY. - rocker, intake (Incl. Items 4 & 5)

4шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting, rocker arm

1шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- lock, adjusting screw, 3/8" N.C. jam

1шт.

6

A57532

SHAFT

ASSY. - rocker arm w/solid plug (See inset A) (1st used eng. ser. no. 2203667)

2шт.

7

A21100

SHAFT

ASSY. - rocker arm(Order A57532)(See inset B) (used prior to eng. ser. no. 2203667)

2шт.

8

A26667

PLUG - end rocker shaft, 9/16" cup type

2шт.

9

A27877

SPRING

- rocker arm shaft

2шт.

10

A27878

WASHER

- rocker shaft ends, 29/32 x 1-5/16 x .028")

14шт.

11

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

4шт.

12

A27879

TUBE

- oil, rocker shaft

2шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube, 3/16 x 5/16 x 1/16"

2шт.

14

A21060

ROD

- push

8шт.

15

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 46)

8шт.

16

A61128

BRACKET

- rocker shaft (Replaces A27881)

4шт.

17

A27881

BRACKET

- rocker shaft (See A61128)

4шт.

18

A57458

STUD

- bracket & cylinder head cover

4шт.

19

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

Bracket Hex, 7/16"-14 x 3 3/4", G5

4шт.

22

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 40)

4шт.

23

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 37)

4шт.

24

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 38)

4шт.

25

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 41)

4шт.

26

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 39)

4шт.

27

A10726

SEAL

SHIELD - intake valve steam (rubber)

4шт.

28

A27866

SEAT

- intake & exhaust valve springs

8шт.

29

NSS

NOT SOLD SEPARAT

SPRING - intake & exhaust valve (Order ref. 42)

8шт.

30

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (Order ref. 43)

4шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - intake valve (Order ref. 44)

4шт.

32

NSS

NOT SOLD SEPARAT

KEEPER - valve springs (Order ref. 45)

16шт.

37

A57485

INSERT

KIT - exhaust valve (Set of 2)

2шт.

38

A21674

GUIDE

KIT - exhaust valve (set of 2)

2шт.

39

A21671

GUIDE

KIT - intake valve (Set of 2)

2шт.

40

A34254

VALVE

KIT - exhaust (Set of 2)

2шт.

41

A24921

KIT

VALVE KIT - intake (Set of 2)

2шт.

42

A21694

SPRING

KIT - intake & exhaust (Set of 4)

2шт.

43

A57433

COIL

ROTO-CAP KIT - exhaust valve (Set of 2)

2шт.

44

A21657

LOCK

RETAINER KIT - intake valve (Incl. 4 keepers & 2 retainers)

2шт.

45

A40352

LOCK

KEEPER KIT - valve spring (Set of 8)

2шт.

46

A21653

KIT

LIFTER KIT - push rod (Set of 4)

2шт.

47

A22689

NUT

- lifting eve. 1/2"

2шт.

50

A23495

CAMSHAFT

- engine

1шт.

51

A23577

KIT

BUSHING KIT - camshaft (Set of 4)

1шт.

52

NSS

NOT SOLD SEPARAT

BUSHING - rear (1-5/32" wide)

1шт.

53

NSS

NOT SOLD SEPARAT

BUSHING - intermediate (1-7/16" wide)

2шт.

54

NSS

NOT SOLD SEPARAT

BUSHING - front (1-21/32" wide)

1шт.

55

A21017

WASHER

- thrust, camshaft

1шт.

56

A22604

GEAR

- camshaft

1шт.

57

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Camshaft gear #18, 1/4" x 1 1/8"

1шт.

58

A26445

NUT

- retaining, cam gear

1шт.

59

A26444

LOCK WASHER

LOCK - nut, cam gear (tab washer)

1шт.

60

CASA27853

SPRING

- thrust plunger

1шт.

61

A27852

PLUNGER

- thrust, camshaft bumper

1шт.
