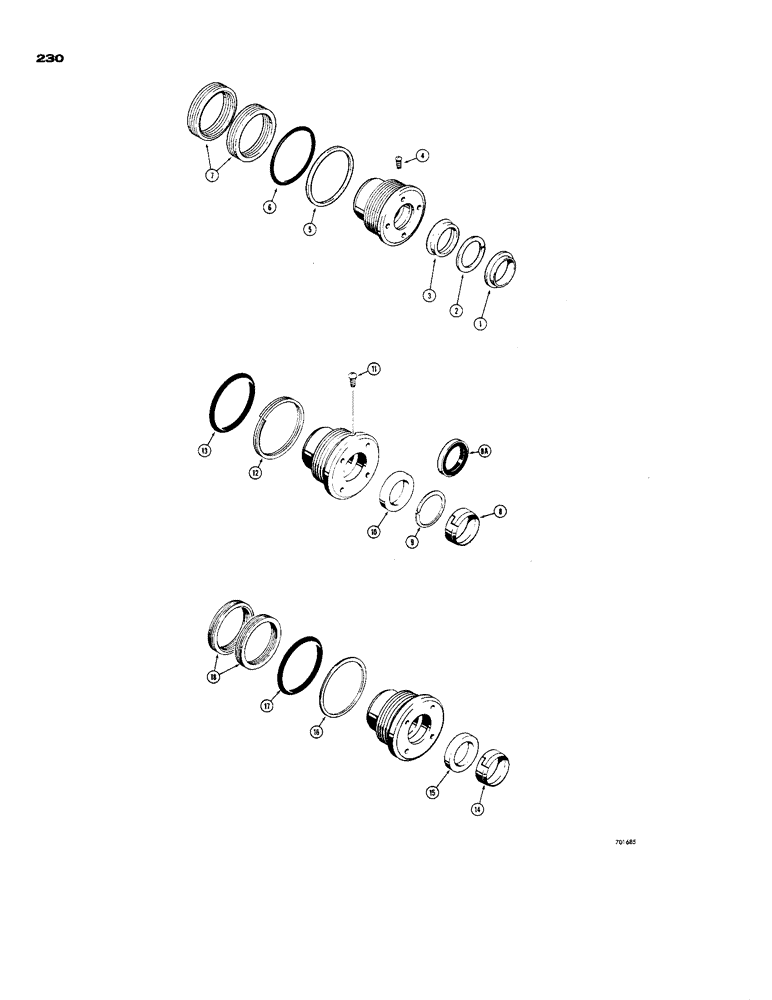

Запчасти Case 850 (230) - CYLINDER PACKING KITS, D41211 CYLINDER PACKING KIT (07) - HYDRAULIC SYSTEM

D41211

X

KIT - cylinder packing, gland type cylinder

1шт.

1

D39360

WIPER

- piston rod

1шт.

2

D39539

RING

- backup, rod seal

1шт.

3

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- piston rod

1шт.

4

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

5

D42452

RING

- backup, gland seal

1шт.

6

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL - "O"ring, gland seal

1шт.

7

D47205

PACKING

- piston

2шт.

D42878

GLAND

KIT - gland packing, cylinder

1шт.

8

D39360

WIPER

- piston rod (Step type), D42878 cylinder gland packing kit

1шт.

8a

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod ("U" type), D42878 cylinder gland packing kit

1шт.

9

D39539

RING

- backup, rod seal, D42878 cylinder gland packing kit

1шт.

10

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- piston rod, D42878 cylinder gland packing kit

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42878 cylinder gland packing kit

1шт.

12

D42452

RING

- backup, gland seal, D42878 cylinder packing kit

1шт.

13

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL - "O"ring, gland seal, D42878 cylinder packing kit

1шт.

G32285

SEAL

KIT - cyinder packing

1шт.

14

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - rod, outer, G32285 cylinder packing kit

1шт.

15

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- piston, rod, G32285 cylinder packing kit

1шт.

16

G32284

BACK-UP RING

- backup, gland seal, G32285 cylinder packing kit

1шт.

17

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL - "O"ring, gland, G32285 cylinder packing kit

1шт.

18

D47205

PACKING

- piston, chevron, G32285 cylinder kit

2шт.
