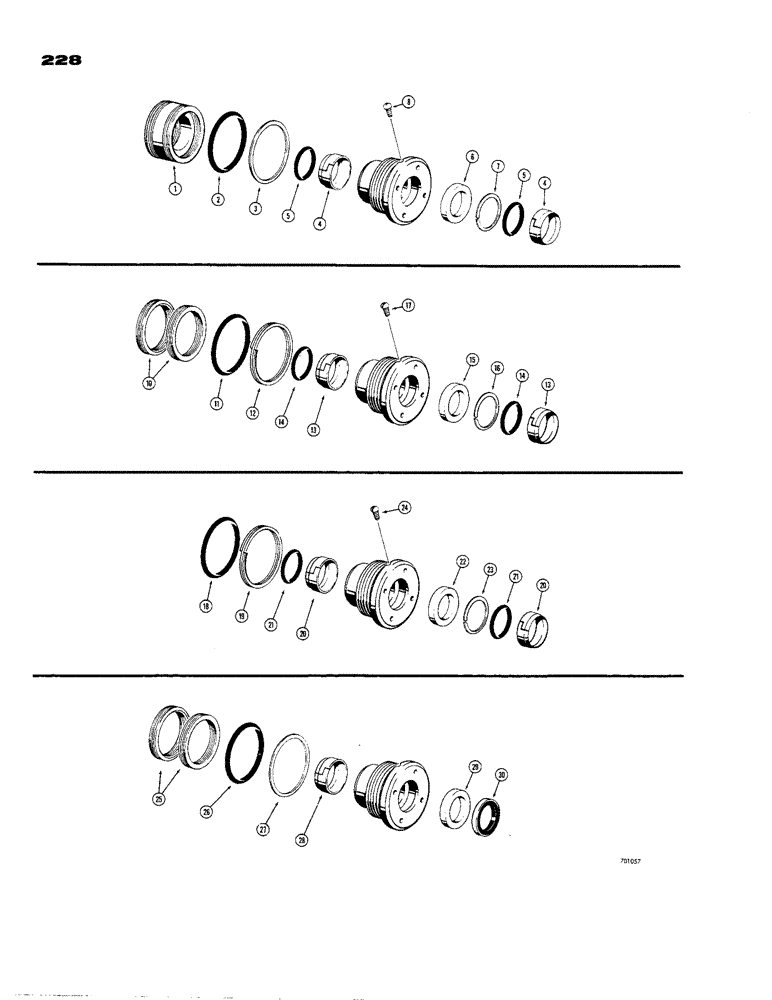

Запчасти Case 850 (228) - CYL PACKING KITS, USED IN HYDRA-LEVELING CYL W/4" CYL TUBE ID X 2" PISTON ROD D37358 CYL PACKING KIT (07) - HYDRAULIC SYSTEM

D37358

GLAND

KIT - cylinder packing (When stock is exhausted, order D41401 kit for service - plus 2 - D43112 packings and 1 - D43113 metal ring if total piston packing is required)

1шт.

1

D36964

PACKING

- piston

1шт.

2

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

3

D27382

RING

- backup, gland seal

1шт.

4

D27380

SCRAPER RING

WIPER - rod

2шт.

5

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O"ring, wiper (If used) (Replaces D26155)

2шт.

6

D36971

RING

SEAL - rod

1шт.

7

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, rod seal

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

9

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, , Not shown (Not used on this model) 1 1/4"-12, GB

1шт.

D41401

SEAL KIT

KIT - cylinder packing (When stock is exhausted, order D42876 kit for service - plus 2 - D43112 packings and 1 - D43113 metal ring if required)

1шт.

10

D40689

PACKING

- piston, chevron (Order D43112 packing for service), D41401 cylinder kit

2шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland, D41401 cylinder packing kit

1шт.

12

D27382

RING

- backup, gland seal, D41401 cylinder packing kit

1шт.

13

D27380

SCRAPER RING

WIPER - rod, D41401 cylinder packing kit

2шт.

14

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O"ring, wiper (If used), D41401 cylinder packing kit

2шт.

15

D36971

RING

SEAL - rod, D41401 cylinder packing kit

1шт.

16

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, rod seal, D41401 cylinder packing kit

1шт.

17

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D41401 cylinder packing kit

1шт.

D42876

GLAND

KIT - gland packing, cylinder

1шт.

18

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland, D42876 cylinder packing kit

1шт.

19

D27382

RING

- backup, gland seal, D42876 cylinder packing kit

1шт.

20

D27380

SCRAPER RING

WIPER - rod, D42876 cylinder gland packing kit

2шт.

21

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O"ring, wiper (If used), D42876 cylinder gland packing kit

2шт.

22

D36971

RING

SEAL - rod, D42876 cylinder gland packing kit

1шт.

23

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, rod seal, D42876 cylinder gland packing kit

1шт.

24

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42876 cylinder gland packing kit

1шт.

G32299

KIT

- cylinder packing

1шт.

25

D47204

PACKING,89.15mm ID x 100.86mm OD

- piston, chevron, G32299 cylinder kit

2шт.

26

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland, G32299 cylinder packing kit

1шт.

27

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland seal, G32299 Cylinder packing kit

1шт.

28

D27380

SCRAPER RING

WIPER - rod, inner, G32299 cylinder packing kit

1шт.

29

D36971

RING

SEAL - rod, G32299 cylinder packing kit

1шт.

30

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod, outer, G32299 cylinder packing kit

1шт.
