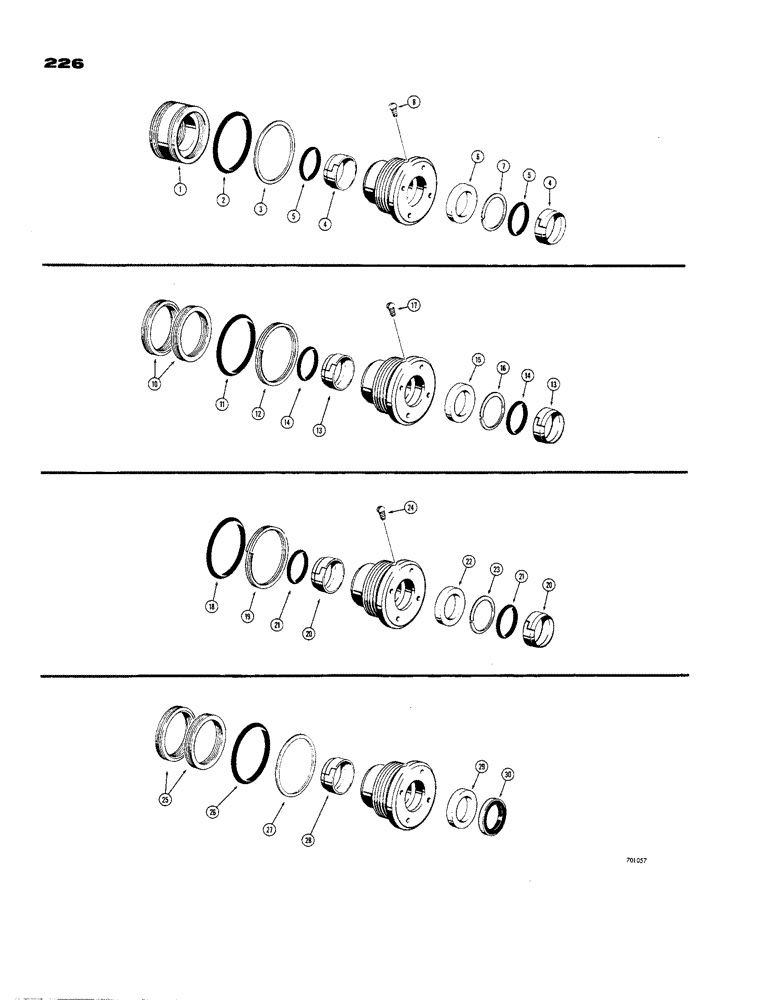

Запчасти Case 850 (226) - CYL. PACKING KITS, USED IN RIPPER CYL. W/4" CYL TUBE I.D. 1-3/4" PISTON ROD, D37359 CYL. PACKING KIT (07) - HYDRAULIC SYSTEM

D37359

SEAL KIT

KIT - cylinder packing (When stock is exhausted, order D41400 kit for service - plus 2 - D43112 packings and 1 - D43113 metal ring if total piston packing is required)

1шт.

1

D36964

PACKING

- piston

1шт.

2

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

3

D27382

RING

- backup, gland seal

1шт.

4

D27432

SHIM

- rod

2шт.

5

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, wiper (If used)

2шт.

6

D36970

CUP

SEAL - rod

1шт.

7

D28499

RING

- backup, rod seal

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

9

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NF) Not shown (Not used on this model)

1шт.

D41400

X

KIT - cylinder packing (When stock is exhausted, order D42875 kit for service - plus 2 - D43112 packings and 1 - D43113 metal ring if required)

1шт.

10

D40689

PACKING

- piston, chevron (Order D43112 packing for service)

2шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland, D41400 cylinder packing kit

1шт.

12

D27382

RING

- backup, gland seal, D41400 cylinder packing kit

1шт.

13

D27432

SHIM

- rod, D41400 cylinder packing kit

2шт.

14

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, wiper (If used), D41400 cylinder packing kit

2шт.

15

D36970

CUP

SEAL - rod, D41400 cylinder packing kit

1шт.

16

D28499

RING

- backup, rod seal, D41400 cylinder packing kit

1шт.

17

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D41400 cylinder packing kit

1шт.

D42875

GASKET KIT

KIT - cylinder packing

1шт.

18

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland, D42875 cylinder packing kit

1шт.

19

D27382

RING

- backup, gland seal, D42875 cylinder packing kit

1шт.

20

D27432

SHIM

- rod, D42875 cylinder gland packing kit

2шт.

21

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, wiper (If used), D42875 cylinder gland packing kit

2шт.

22

D36970

CUP

SEAL - rod, D42875 cylinder gland packing kit

1шт.

23

D28499

RING

- backup, rod seal, D42875 cylinder gland packing kit

1шт.

24

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42875 cylinder gland packing kit

1шт.

G32297

SEAL

KIT - cylinder packing

1шт.

25

D47204

PACKING,89.15mm ID x 100.86mm OD

- piston, chevron, G32297 cylinder packing kit

2шт.

26

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland, G32297 cylinder packing kit

1шт.

27

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland seal, G32297 Cylinder packing kit

1шт.

28

D27432

SHIM

- rod, inner, G32297 cylinder packing kit

1шт.

29

D36970

CUP

SEAL - rod, G32297 cylinder packing kit

1шт.

30

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer, G32297 cylinder packing kit

1шт.
