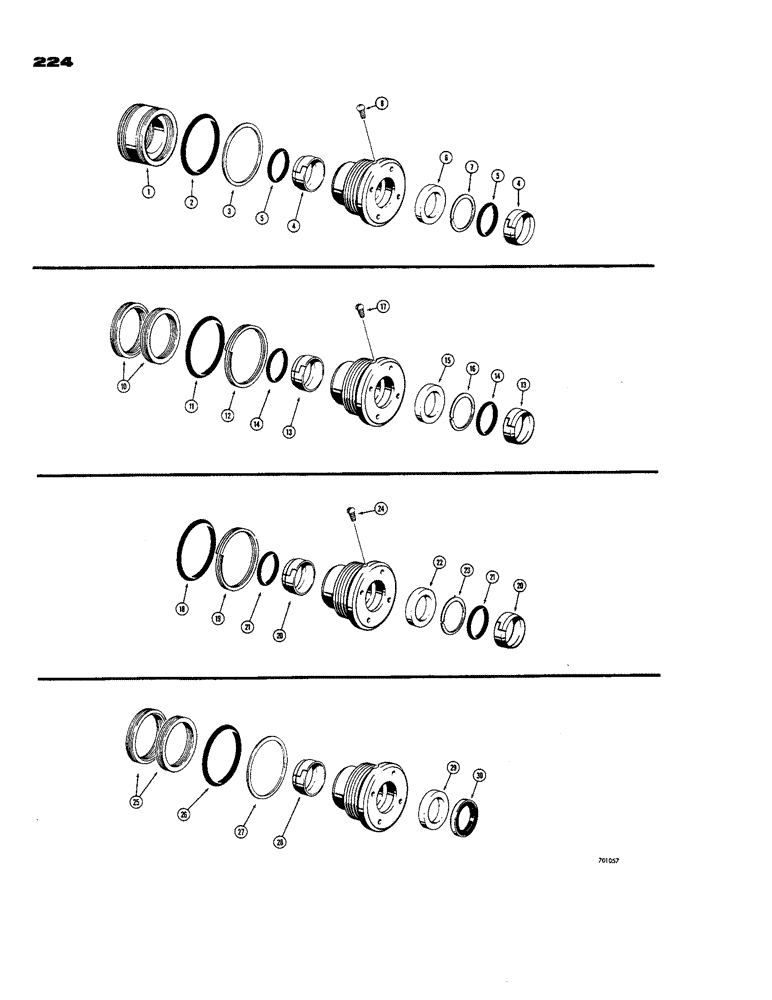

Запчасти Case 850 (224) - CYLINDER PACKING KITS, D37356 CYLINDER PACKING KIT (07) - HYDRAULIC SYSTEM

D37356

GLAND

KIT - cyliknder packing (When stock is exhausted, order D41399 kit for service - plug 1 - D47208 metal ring)

1шт.

1

D36963

PACKING

- piston

1шт.

2

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

3

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

4

D27432

SHIM

- rod

2шт.

5

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, wiper (If used)

2шт.

6

D36970

CUP

SEAL - rod

1шт.

7

D28499

RING

- backup, rod seal

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

9

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NF) Not shown (Not required on this model)

1шт.

D41399

SEAL KIT

KIT - cylinder packing (When stock is exhausted, order D42873 kit plus 2 - D47203 packing and 1 - D47208 metal ring if required)

1шт.

10

D41278

PACKING

- piston, chevron, D41399 cylinder packing kit

2шт.

11

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, gland, D41399 cylinder packing kit

1шт.

12

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal, D41399 cylinder packing kit

1шт.

13

D27432

SHIM

- rod, D41399 cylinder packing kit

2шт.

14

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, wiper (If used), D41399 cylinder packing kit

2шт.

15

D36970

CUP

SEAL - rod, D41399 cylinder packing kit

1шт.

16

D28499

RING

- backup, rod seal, D41399 cylinder packing kit

1шт.

17

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D41399 cylinder packing kit

1шт.

D42873

GASKET KIT

KIT - gland packing, cylinder

1шт.

18

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, gland, D42873 cylinder packing kit

1шт.

19

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal, D42873 cylinder packing kit

1шт.

20

D27432

SHIM

- rod, D42873 cylinder gland packing kit

2шт.

21

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, wiper (If used), D42873 cylinder gland packing kit

2шт.

22

D36970

CUP

SEAL - rod, D42873 cylinder gland packing kit

1шт.

23

D28499

RING

- backup, rod seal, D42873 cylinder gland packing kit

1шт.

24

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42873 cylinder gland packing kit

1шт.

G32228

KIT

- cylinder packing

1шт.

25

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

- piston, chevron, G32228 cylinder packing kit

2шт.

26

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, gland, G32228 cylinder packing kit

1шт.

27

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland seal, G32228 cylinder packing kit

1шт.

28

D27432

SHIM

- rod, inner, G32228 cylinder packing kit

1шт.

29

D36970

CUP

SEAL - rod, G32228 cylinder packing kit

1шт.

30

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer, G32228 cylinder packing kit

1шт.
