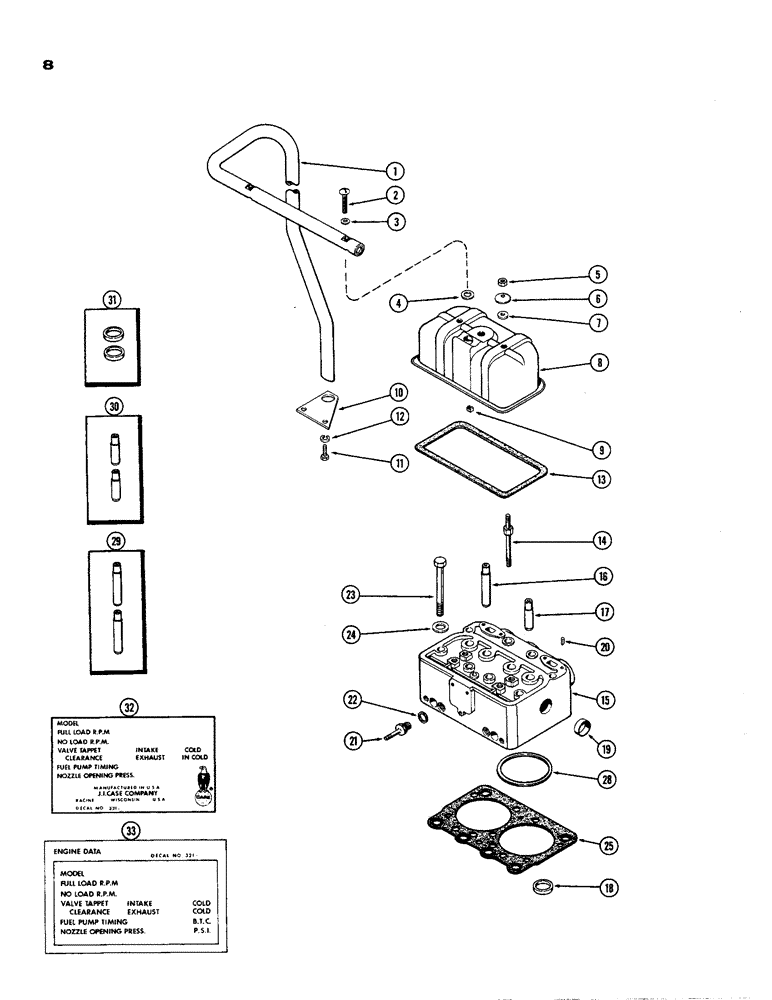

Запчасти Case 850 (008) - CYLINDER HEAD ASSEMBLY, (301 DIESEL ENGINE) (01) - ENGINE

1

A17486

TUBE - breather, oil

1шт.

2

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

- mach., 1/4 x 2-1/4" N.C., rd.hd.

2шт.

3

A34133

GASKET

- breather screw

2шт.

4

A23685

GASKET

- breather tube seat

2шт.

5

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

4шт.

6

A23683

WASHER

- bevel, valve head cover stud

4шт.

7

A23684

GASKET

GASKET - valve head cover stud

4шт.

8

A23681

COVER ASSY

. - cylinder head

2шт.

9

131-2

NUT,1/4"-20, GB

LOCKNUT, , N.C. - Tinnerman 1/4"-20, GB

2шт.

10

A23686

BRACKET

- breather tube

1шт.

11

A9936

BOLT - mounting, bracket (Special)

2шт.

12

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

2шт.

13

A27972

CYLINDER HEAD GASKET

- cylinder head cover

1шт.

14

A54758

STUD - bracket & cylinder head cover

4шт.

15

A33644

X

HEAD ASSY. - cylinder

2шт.

16

NSS

NOT SOLD SEPARAT

GUIDE - valve, intake (Order ref. 29)

2шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - valve, exhaust(Order ref. 30)

2шт.

18

NSS

NOT SOLD SEPARAT

INSERT - valve seat, exhaust(Order ref. 31)

2шт.

19

A34124

PLUG,Cup, 1 5/8", Stainless

- cylinder head, 1-21/32" cup type

2шт.

20

A11810

PIN,3.19mm OD x 6.99mm L

- locating, powrcel, 1/8 x 17/64"

2шт.

21

A10678

STUD

- nozzle holder

2шт.

22

A10679

GASKET

- stud, 23/32 x 29/32 x 1/32" copper

2шт.

23

A57482

STEP BOLT

BOLT - cylinder head, 9/16 x 6" N.C. hex.

18шт.

24

A27870

WASHER

- cylinder head bolt

18шт.

25

A57593

GASKET

- cylinder head (See Figure 26)

2шт.

28

A34686

RING

- fire, cylinder head (Std.)

4шт.

28

A34688

RING

- fire, cylinder head (oversize w/blue stripe)

4шт.

29

A21671

GUIDE

KIT - intake valve (set of 2)

2шт.

30

A21674

GUIDE

KIT - exhaust valve (set of 2)

2шт.

31

A21683

SHAFT

INSERT KIT - exhaust valve (set of 2)

2шт.

32

321-1226

DECAL - engine data (Used w/1950 RPM feul pump)

1шт.

33

321-813

DECAL - engine data (Used w/2000 RPM feul pump)

1шт.
