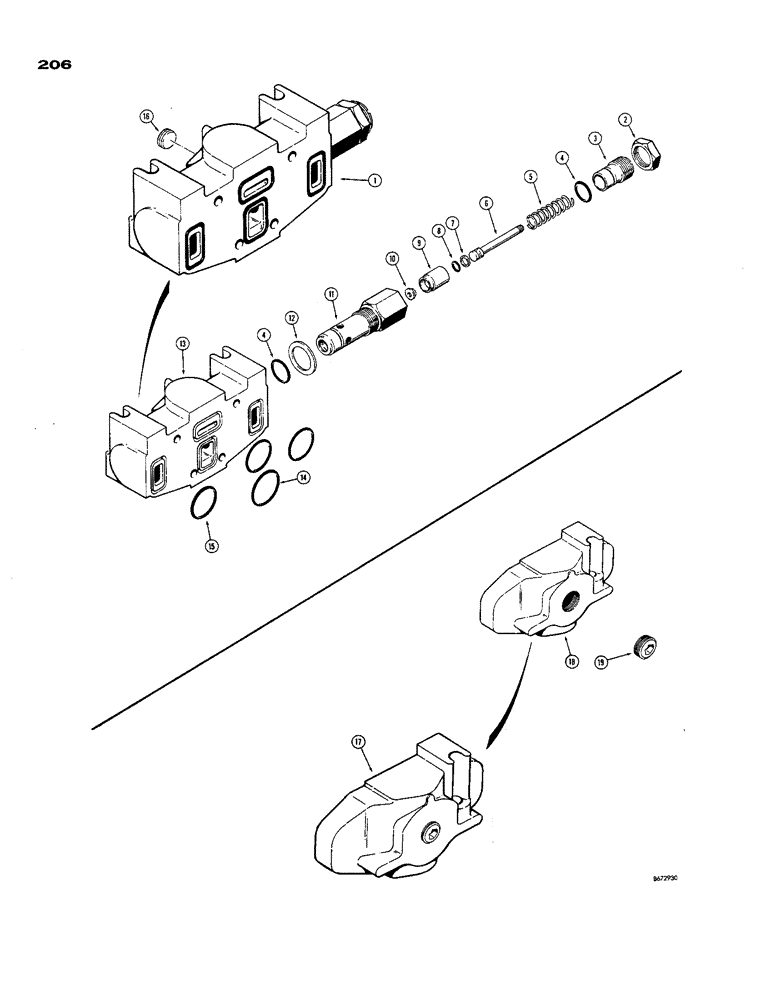

Запчасти Case 850 (206) - D41796 VALVE INLET SECTION (07) - HYDRAULIC SYSTEM

1

D41796

VALVE

INLET SECTION - equipment control valve

1шт.

D32126

FILTER

CARTRIDGE - relief

1шт.

2

R12507

LOCK NUT

- lock, adjusting screw

1шт.

3

R21364

SCREW

- spring adjusting

1шт.

4

D31413

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O"ring, 7/8" I.D. x 1-1/8" O.D.

2шт.

5

D32476

SPRING

- compression

1шт.

6

R16125

PLUNGER

- displacement

1шт.

7

R12509

RING

- backup

1шт.

8

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

SEAL - "O"ring, 3/8" I.D. x 9/16" O.D.

1шт.

9

R12510

SEAT

- floating

1шт.

10

R16123

WASHER, THRUST

SNUBBER - check valve

1шт.

11

D39700

KIT

SHELL ASSEMBLY - cartridge

1шт.

12

23146

WASHER

- gasket (When stock is exhausted, order D40822 washer for service)

1шт.

D40822

WASHER

- gasket

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - inlet section

1шт.

14

D32127

O-RING

SEAL - "O"ring, 1-13/16" I.D. x 2" O.D.

1шт.

15

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O"ring, 1-9/16" I.D. x 1-3/4" O.D.

3шт.

16

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, hex. socket head (3/4" NPT)

1шт.

17

D38360

VALVE

OUTLET SECTION - equipment control valve

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING - outlet section, D38360 valve

1шт.

19

221-846

PLUG,Hex Soc, 1"-11 1/2

- pipe, hex. socket head (1" NPT), D38360 valve outlet section

1шт.
