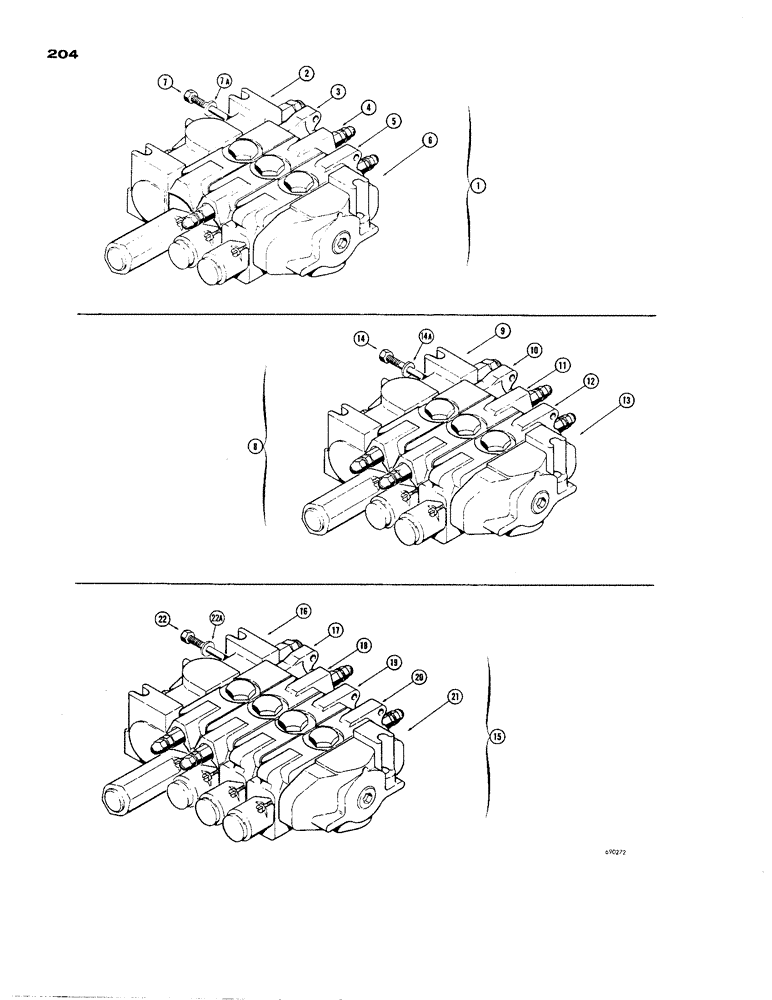

Запчасти Case 850 (204) - D39779 AND D48101 DOZER CONTROL VALVES, (3 SPOOL) (07) - HYDRAULIC SYSTEM

1

D39779

VALVE

- dozer control, 3 spool (Used on Power Tit and Power Angle Dozer) Main relief valve set at 1450 P.S.I.

1шт.

1

D48102

VALVE

- dozer control, 3 spool (Used on Power Angle-Tilt Dozer) Main relief valve set at 1450 P.S.I.

1шт.

2

D41796

VALVE

INLET SECTION - dozer control valve (Parts list Figure 206)

1шт.

3

D38092

LIFT SECTION - dozer control valve (Parts list Figure 210) Service with D52443 section

1шт.

3

D52443

VALVE

LIFT SECTION - dozer control valve (Parts list Figure 210)

1шт.

4

D42432

NO LONGER SERVICED

ANGLING OR TILT SECTION - dozer control valve (Parts list Figure 216)

1шт.

5

D41533

VALVE

RIPPER SECTION - dozer control valve (Parts list Figure 208)

1шт.

6

D38360

VALVE

OUTLET SECTION - dozer control valve (Parts list Figure 206)

1шт.

7

R20429

STUD

ASSEMBLY - valve

4шт.

7a

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

8

D39778

LOCK VALVE

VALVE - loader control, 3 spool

1шт.

9

D41796

VALVE

INLET SECTION - loader control valve (Parts list Figure 206), D39778 3-spool

1шт.

10

D38365

KNIFE SECTION

LIFT SECTION - loader control valve (Parts list Figure 212), D39778 3-spool

1шт.

11

D42433

KNIFE SECTION

DUMP SECTION - loader control valve (Parts list Figure 214), D39778 3-spool

1шт.

12

D41533

VALVE

CLAM OR RIPPER SECTION - loader control valve (Parts list Figure 208) If used as clam section, order 1 - D32123 clam section for service (Parts list page 211), D39778 3-spool

1шт.

13

D38360

VALVE

OUTLET SEVTION - loader control valve (Parts list Figure 206), D39778 3-spool

1шт.

14

R20429

STUD

ASSEMBLY - valve, D39778 loader control 3-spool

4шт.

14a

195-33

WASHER,1/2"

- plain (), D39778 loader control valve 3-spool 1/2"

4шт.

15

D39780

VALVE - loader or dozer control, 4 spool (Used on loaders with clam type bucket and ripper, power tilt dozers with pull behinds or power angling dozers with pull behinds)

1шт.

16

D41796

VALVE

INLET SECTION - loader control valve (Parts list Figure 206), D39780 4-spool

1шт.

17

D38365

KNIFE SECTION

LIFT SECTION - loader control valve (Parts list Figure 212), D39780 4-spool

1шт.

18

D42433

KNIFE SECTION

DUMP SECTION - loader control valve (Parts list Figure 214), D39780 4-spool

1шт.

19

D32123

KNIFE SECTION

CLAM SECTION - loader control valve (Parts list Figure 210), D39780 4-spool

1шт.

20

D41533

VALVE

RIPPER SECTION - loader control valve (Parts list Figure 208), D39780 4-spool

1шт.

21

D38360

VALVE

OUTLET SECTION - loader control valve (Parts list Figure 206), D39780 4-spool

1шт.

22

D36476

STUD

ASSEMBLY - valve, D39780 loader control 4-spool

4шт.

22a

195-33

WASHER,1/2"

- plain (), D39780 loader control valve 4-spool 1/2"

4шт.
