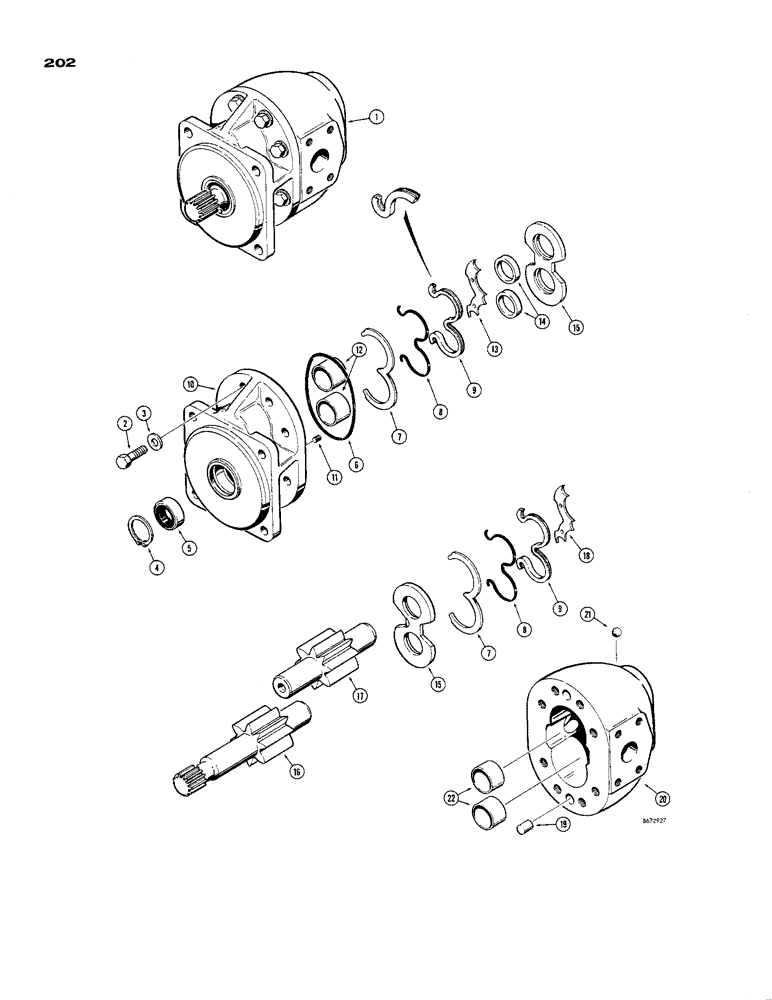

Запчасти Case 850 (202) - D42531 EQUIPMENT PUMP (07) - HYDRAULIC SYSTEM

1

D42531

HYDRAULIC PUMP

PUMP - hydraulic, 37 G.P.M. at 1780 R.P.M. at 2000 P.S.I. (Tyrone #20250-CG)

1шт.

2

113-405

X

HHCS - 1/2" - 13 NC x 1-1/4"

8шт.

3

D41413

WASHER

- special

8шт.

D41406

GASKET KIT

KIT - pump seal, rebuild

1шт.

4

D41419

RING

- snap

1шт.

5

D41418

SEAL

- drive shaft

1шт.

6

D43797

SEAL

- "O"ring, cover

1шт.

7

D41416

X

RING - retaining (When stock is exhausted, order D44102 ring for service)

2шт.

D44102

RING

- retaining

2шт.

8

D41417

O-RING

SEAL - "O"ring, strip (When stock is exhausted, order D44103 seal for service)

2шт.

D44103

SEAL

- "O"ring, strip

2шт.

9

D41415

BACK-UP RING

RING - backup (When stockis exhausted, order D44099 ring for service)

2шт.

D44099

RING

- backup

2шт.

D41405

NO LONGER SERVICED

COVER ASSEMBLY - pump

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

11

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket head (1/8" NPT)

1шт.

12

D42855

BUSHING

- cover

2шт.

13

D41411

PLATE - isolation, square edge (When stock is exhausted, order D44101 plate for service)

1шт.

D44101

PLATE

- isolatin, square edge

1шт.

14

D43796

SPACER

RING - steel

2шт.

15

D42856

PLATE

- pressure

2шт.

D42470

GEAR SET

SHAFT AND GEAR SET - drive and driven

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT AND GEAR - drive

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

18

D41410

LARGE PLATE

PLATE - isolation, round edge (When stock is exhausted, order D44100 plate for service)

1шт.

D44100

PLATE

- isolation, round edge

1шт.

19

D41414

PIN

DOWEL -, Serial Range: body-cover

2шт.

D42845

BODY

ASSEMBLY - pump

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

21

211-5

BALL,3/16" Dia

- steel, . 3/16" Dia

1шт.

22

D42855

BUSHING

- body

2шт.
