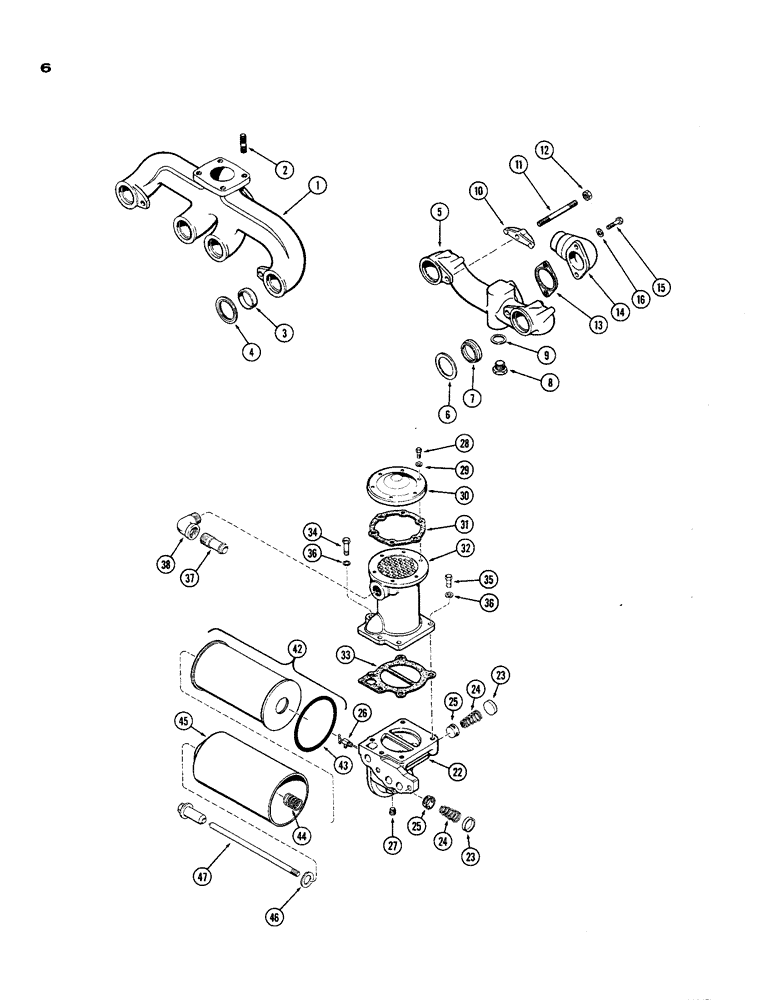

Запчасти Case 850 (006) - MANIFOLD, (301) DIESEL ENGINE (01) - ENGINE

1

A21008

MANIFOLD

- exhaust

1шт.

2

A34821

STUD

- muffler mounting

4шт.

3

A21056

CAP

FERRULE - exhaust manifold

4шт.

4

A21054

MANIFOLD GASKET

- exhaust manifold

4шт.

5

A21005

MANIFOLD - intake

1шт.

6

A11888

MANIFOLD GASKET

- intake manifold

2шт.

7

A21053

BUSHING,55.5mm ID x 57.15mm OD x 12.7mm L

FERRULE - intake manifold

2шт.

8

A20917

PLUG

- intake manifold

1шт.

9

A20196

GASKET

- plug

1шт.

10

A24368

CLAMP

- intake & exhaust manifolds

4шт.

11

A27911

STUD

- 7/16" N.F. x 6"

4шт.

12

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

4шт.

13

A21055

MANIFOLD GASKET

- intake elbow

1шт.

14

A21007

ELBOW - intake elbow

1шт.

15

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

NS

NOT SERVICED

FILTER & COOLER ASSY. - oil (Order components)

1шт.

A23473

BASE

ASSY. - filter & cooler (Not illust.)

1шт.

22

NSS

NOT SOLD SEPARAT

BASE - filter & cooler (Order A23473), oil

1шт.

23

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve, oil filter & cooler

2шт.

24

A21091

VALVE SPRING

SPRING - relief valve, oil filter & cooler

2шт.

25

A21090

VALVE

- oil relief, filter & cooler

2шт.

26

A23655

VALVE

- drain, base, oil filter & cooler

1шт.

27

221-12

PLUG,Sq Hd, 1/4"-18

- 1/4" P.T. sq. hd., oil filter & cooler

1шт.

28

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Oil filter & cooler Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

29

92-5

LOCK WASHER,5/16"

oil filter & cooler 5/16"

6шт.

30

A23030

CAP

- oil filter & cooler

1шт.

31

A21088

GASKET

- cap, oil filter & cooler

1шт.

32

A21086

COOLER ASSY.

oil filter & cooler

1шт.

33

A21087

GASKET

- cooler to base, oil filter

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Oil filter & cooler Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

35

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Oil filter & cooler Hex, 3/8"-16 x 1 3/4", G5

1шт.

36

92-6

LOCK WASHER,3/8"

oil filter & cooler 3/8"

5шт.

37

A16529

NIPPLE, LUBE

NIPPLE - cooler water hose, oil filter

1шт.

38

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- 3/4 x 3/4" P.T. x 90deg. Street, oil filter & cooler

1шт.

NSS

NOT SOLD SEPARAT

FILTER ASSY. - oil, cooler

1шт.

42

A20822

ENGINE OIL FILTER

ELEMENT KIT - oil filter & cooler

1шт.

43

A20429

GASKET

"O"RING - filter seal, oil & cooler

1шт.

44

A20427

VALVE SPRING

SPRING - tension, element, oil filter & cooler

1шт.

45

A20824

SHELL

- element, oil filter & cooler

1шт.

46

A20426

GASKET

- stand pipe, oil filter & cooler

1шт.

47

A20825

PIPE

STANDPIPE - shell mounting, oil filter & cooler

1шт.
