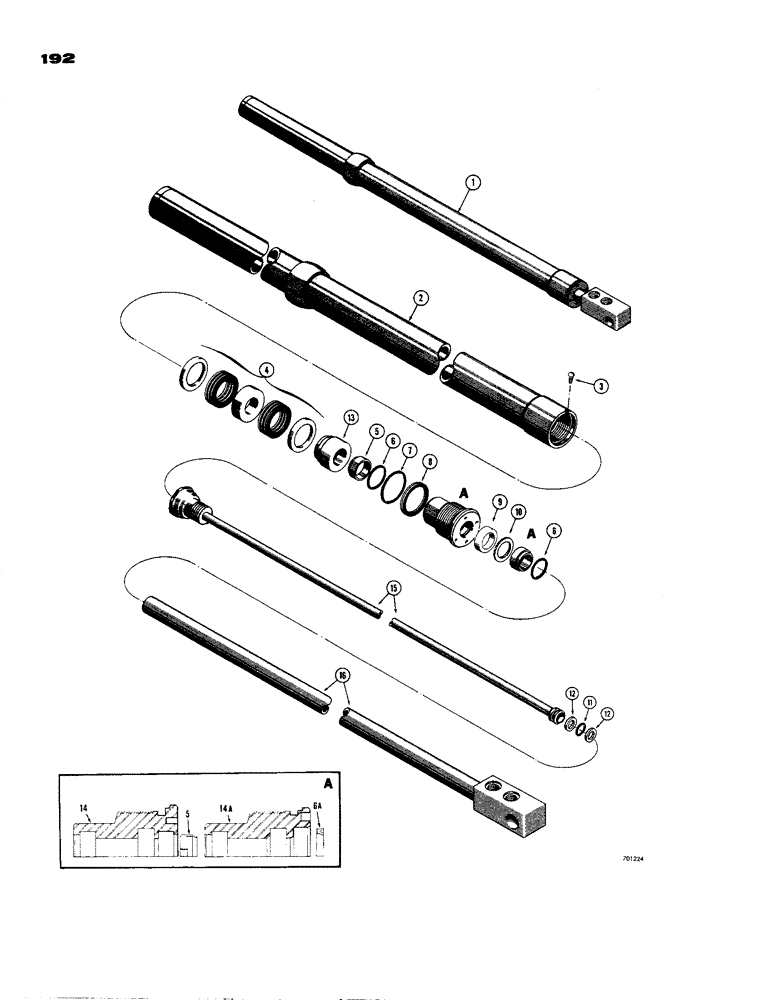

Запчасти Case 850 (192) - ANGLING CYLINDERS (POWER ANGLING DOZER), USES SPLIT SNAP IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D32986

CYLINDER

- hydraulic, power angling (2-1/2" I.D. x 40" stroke)

2шт.

2

D32955

TUBE - cylinder

1шт.

D37360

KIT

- packing, gland type cylinder

1шт.

3

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

4

D28373

PACKING

- piston, chevron

1шт.

5

D27706

WIPER SEAL

WIPER - rod

2шт.

6

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O"ring, wipre (If used)

2шт.

7

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

8

D27856

RING

- backup, gland seal

1шт.

9

D36969

CUP

SEAL - rod

1шт.

10

D28498

RING

- backup, rod seal

3шт.

11

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

12

D34938

BACK-UP RING,0.827" OD

- backup

2шт.

13

D32970

PISTON

- split, eye end

1шт.

14

D45066

GLAND

- packing (When stock is exhausted, use G32119 gland and D95142 outer rod wiper)

1шт.

15

D34928

TUBE

- hydraulic, piston rod (Inner)

1шт.

16

D32975

ROD

- piston (1-1/2" dia.)

1шт.

1

G32464

CYLINDER

- angling, 2-1/2" x 40" stroke, uses press in outer rod wiper

2шт.

2

D32955

TUBE - cylinder, uses press in outer rod wiper

1шт.

3

181-1031

SCREW - self-tapping, #8 - 32 NC x 1/4", uses press in outer rod wiper

1шт.

G32458

ASSEMBLY

KIT - gland packing, uses press in outer rod wiper

1шт.

4

D28373

PACKING

- piston, chevron, uses press in outer rod wiper

1шт.

5

D27706

WIPER SEAL

WIPER - rod, inner, uses press in outer

1шт.

6

NOT REQUIRED

1шт.

6a

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod, outer, uses press in outer

1шт.

7

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O"ring, gland, uses press in outer rod wiper

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland seal, uses press in outer rod wiper

1шт.

9

D36969

CUP

SEAL - uses press in outer rod wiper

1шт.

10

NOT REQUIRED

1шт.

11

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - "O"ring, uses press in outer rod wiper

1шт.

12

D34938

BACK-UP RING,0.827" OD

- backup, uses press in outer rod wiper

1шт.

13

D32970

PISTON

- split, eye end, uses press in outer rod wiper

1шт.

14a

G32119

GLAND

- packing, uses press in outer rod wiper

1шт.

15

D34928

TUBE

- hydraulic, piston rod (Inner), uses press in outer wiper

1шт.

16

D32975

ROD

- piston (1-1/2" dia.), uses press in outer wiper

1шт.
