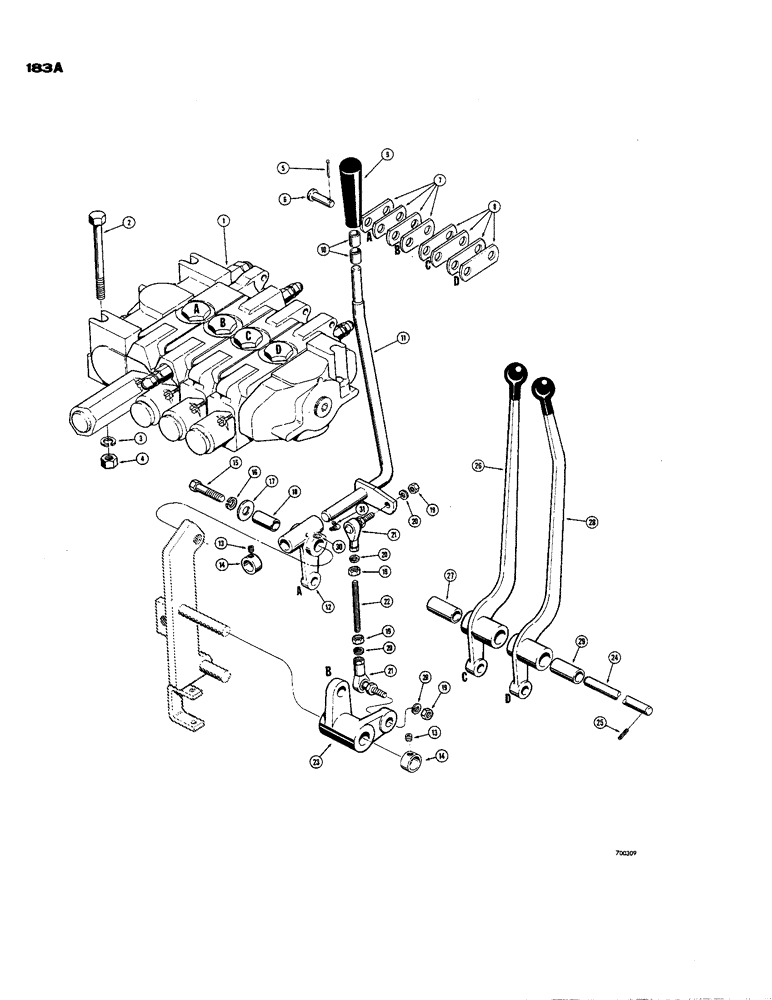

Запчасти Case 850 (183A) - EQUIPMENT CONTROL VALVE AND LEVERS, 4 SPOOL VALVE, USED ON DOZER MODELS ONLY (07) - HYDRAULIC SYSTEM

1

D48101

VALVE

- equipment control (Parts list Figure 205A)

1шт.

2

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" -13 NC)

3шт.

5

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

8шт.

6

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

8шт.

7

R22269

LINK

- connecting, short

4шт.

8

D36230

LEVER

LINK - connecting, long

4шт.

9

D37550

KNOB

- control lever

1шт.

10

D38662

RING

BUSHING - spacer

2шт.

11

D40897

LEVER - control, lift and tilt

1шт.

12

D40877

PIVOT

LEVER - pivot

1шт.

13

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

2шт.

14

D43620

COLLAR

- control lever

2шт.

15

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NF x 2-1/4"

1шт.

16

92-8

LOCK WASHER,1/2"

1шт.

17

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

18

D40893

BUSHING

- lever

1шт.

19

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

4шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

D40908

BALL JOINT

2шт.

22

D40917

STUD

BOLT - stud

1шт.

23

D40930

LEVER - bellcrank

1шт.

24

D40920

TERMINAL CONNECTOR

- mounting, lever

1шт.

25

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

26

D40875

LEVER

- angle control

1шт.

27

D40392

BUSHING

- lever

1шт.

28

D40873

LEVER

- rear equipment control

1шт.

29

D40392

BUSHING

- lever

1шт.

30

219-103

FITTING

- grease, straight (1/8" NPT)

1шт.

31

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
