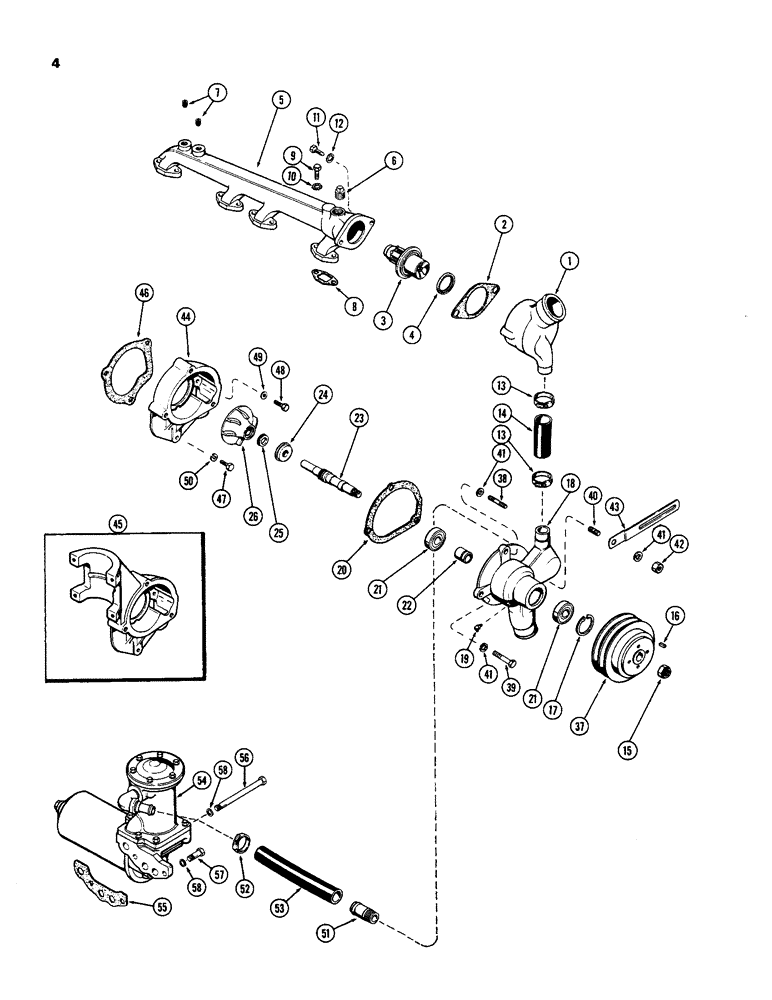

Запчасти Case 850 (004) - WATER PUMP AND OIL COOLER SYSTEM, (301) DIESEL ENGINE (01) - ENGINE

1

A21032

HOUSING - thermostat

1шт.

2

A21035

GASKET

- thermostat housing

1шт.

3

A21033

THERMOSTAT

ASSY. - water temperature

1шт.

4

A21034

SEAL

SEAL - thermostat

1шт.

5

A57995

MANIFOLD

ASSY. - (Replaces A21031)

1шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

- (3/8" P.T., sckt. hd.)

1шт.

7

221-844

PLUG,Hex Soc, 1/2"-14

- (1/2" P.T. sckt. hd.)

2шт.

8

A27905

GASKET

- water manifold

4шт.

9

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

8шт.

10

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

8шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

12

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

14

A23110

HOSE,1.25" ID x 3.25", SAE 20R2 Class R

SAE 20R4 Class R Grade 2 - Water by-pass 1.25" ID x 3.25", SAE 20R2 Class R

1шт.

14

A34009

PUMP

ASSY. water (not illust.)

1шт.

15

131-580

LOCK NUT,5/8"-18

NUT - lock, pulley retainer

1шт.

16

A21075

KEY

- fan pulley

1шт.

Part of pump repair kit P/N A40744

1шт.

17

A22572

SNAP RING,1.85", Int, #185

Ring, Snap, , brg 1.85", Int, #185

1шт.

Part of pump repair kit P/N A40744

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - water pump (Order A34009)

1шт.

19

219-54

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. x 67-1/2deg.

1шт.

20

A22600

GASKET

- mounting, water pump

1шт.

Part of pump repair kit P/N A40744

1шт.

21

A21045

BALL BEARING,19.99mm ID x 47mm OD x 14mm W

BEARING - pump shaft

2шт.

Part of pump repair kit P/N A40744

1шт.

22

A24600

SPACER

- bearing

1шт.

Part of pump repair kit P/N A40744

1шт.

23

A21044

SHAFT

- water pump

1шт.

Part of pump repair kit P/N A40744

1шт.

24

A24995

SEAL

- pump shaft

1шт.

Part of pump repair kit P/N A40744

1шт.

25

A34000

SEAL

SEAT - cup, seal

1шт.

26

A33999

IMPELLER

- pump shaft

1шт.

Part of pump repair kit P/N A40744

1шт.

A40744

KIT

- pump repair, Includes: Refs. 16, 17, 20 - 24 and 26

1шт.

37

A34115

PULLEY

- fan, driven

1шт.

38

A33997

STUD

- 3/8" N.C. x 3-1/2"

1шт.

39

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

40

A7391

STUD

- 3/8" N.F. x 1-1/8"

1шт.

41

92-6

LOCK WASHER,3/8"

3шт.

42

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex.

1шт.

43

A34548

STRAP

- generator adjusting

1шт.

44

A34441

ADAPTER

- water pump (1st used eng. ser. no. 2205978)

1шт.

45

A22583

ADAPTER

- water pump & final stage filter (used prior to eng. ser. no. 2205978)

1шт.

46

A57596

GASKET

- mounting, adapter to block (replaces A27899)

1шт.

47

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

48

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

49

A22317

WASHER

- adapter mounting, (copper)

1шт.

50

92-6

LOCK WASHER,3/8"

3шт.

51

A16529

NIPPLE, LUBE

NIPPLE - pump to cooler hose

1шт.

52

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

53

A21093

HOSE,9.75", SAE 20R4

1.00" ID x or SAE 20R2, Water Pump to Cooler 9.75", SAE 20R4

1шт.

54

NSS

NOT SOLD SEPARAT

FILTER & COOLER ASSY. - oil (Repairs, Figure 6)

1шт.

55

A21084

GASKET

- mounting, filter &, Serial Range: cooler-block

1шт.

56

15-888

BOLT

- 1/2 x 5-1/2" N.C. hex.

1шт.

57

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

58

92-8

LOCK WASHER,1/2"

2шт.
